L2S345GEL0 4

L2S345GEL0 4

Written by

in

L2S345GEL0 4

Products

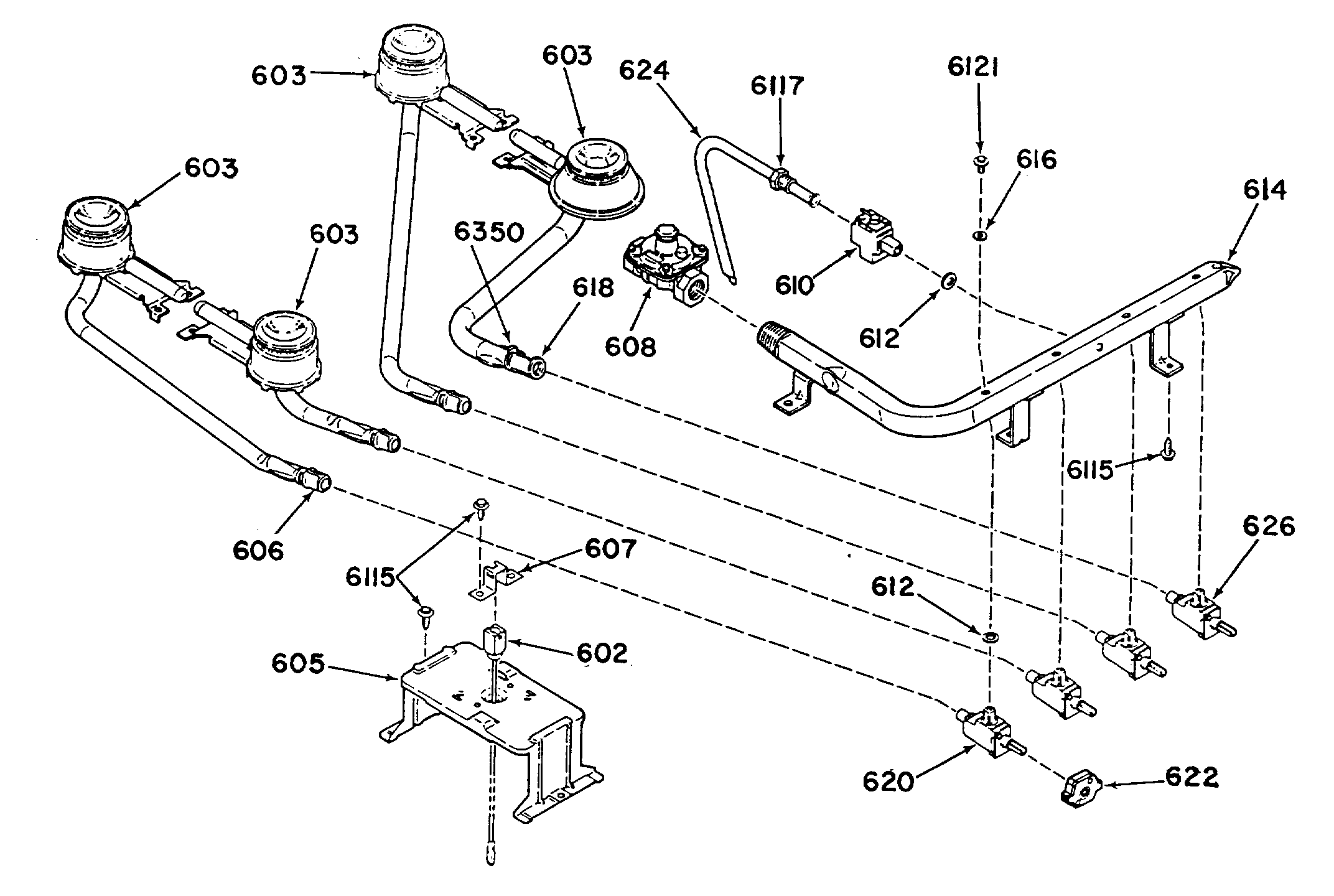

PositionProduct
602GEN WB02X9277
602SPARK IGN ELECTRODE LT
603TOP BURNER-REAR-LEFT
603TOP BURNER-FRONT-RIGHT
603TOP BURNER-FRONT-LEFT
603TOP BURNER-REAR-RIGHT
605SUPPORT-TOP BURNER-R/L
606GEN WB02X9739
607IGNITER BRACKET
608GEN WB21X0465
610VALVE–SHUT-OFF
612VALVE GASKET
614GEN WB02X9279
616VALVE SCREW GASKET
618GEN WB02X9752
620GAS VALVE-LF/LR/RR
622SWITCH-VALVE-TOP BURNER
624TUBING-CONTROL/SHUT-OFF
626GAS VALVE-RF
6115WB1M1 GE Oven Screw
6117NUT
6121GEN WB01X1121
6350WB1X1425 GE Oven SCW 8ABX.250
