L3521WRV 02 – DOOR/DRAWER (WRx)

L3521WRV 02 – DOOR/DRAWER (WRx)

Written by

in

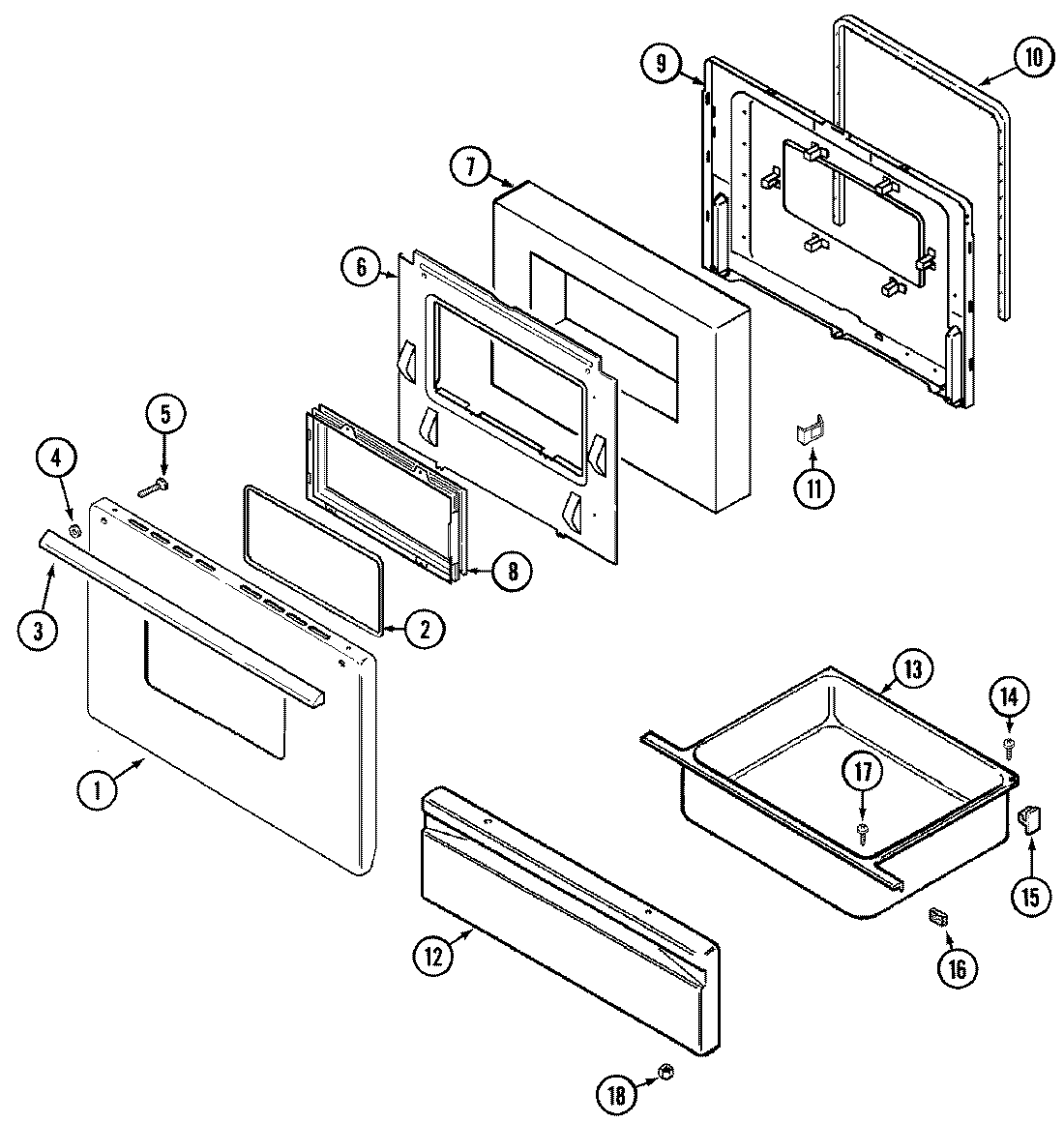

L3521WRV 02 – DOOR/DRAWER (WRx)

Products

PositionProduct
1MAY 2401F097-71
2MAY 7201P017-60
3WP2411F013-71 Whirlpool Door Handle
4WP74005058 Whirlpool Spacer Assembly
5MAY 7101P080-60
6MAY 3601F236-45
7MAY 4804F050-60
8MAY 7907P017-60
8MAY 7907P022-60
9MAY 2402W203-19
10WP7212P043-60 Whirlpool Oven Door Seal Gasket
11CLIP, DOOR
12MAY 2416F039-62
13MAY 3405F019-80
14MAY 7101P291-60
15WP8004P026-60 Whirlpool Support
16MAY 8010P086-60
17WP7101P072-60 Whirlpool Screw
18WPW10131078 Whirlpool Nut Assembly
