L3521XRW 01 – BODY

L3521XRW 01 – BODY

Written by

in

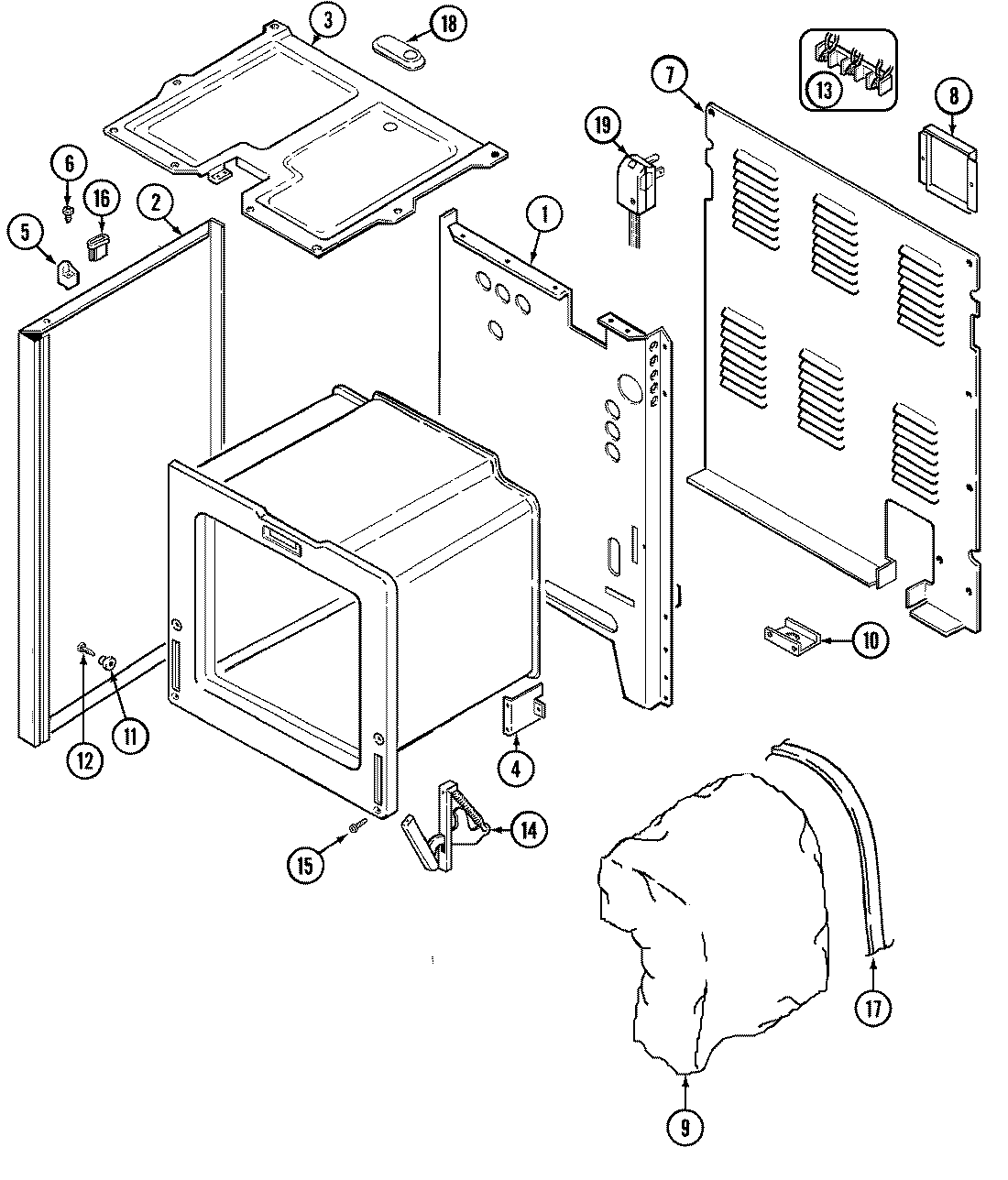

L3521XRW 01 – BODY

Products

Position	Product
1	MAY 74002334
1	MAY 74001772
2	MAY 2618F085-71
2	MAY 74001884
3	MAY 4011F239-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 4005F455-51
8	MAY 4005F427-51
9	MAY 4804F044-60
9	MAY 4804F039-60
10	MAY 3605F174-51
10	SCREW
11	MAY 8004P024-60
13	MAY 7401P038-60
14	MAY 7106P055-60
15	SCREW (10-24X5/16-NI)
16	MAY 8007P023-60
17	MAY 4820F001-59
18	COVER, VENT
18	MAY 74001449
19	MAY 7402P050-60
