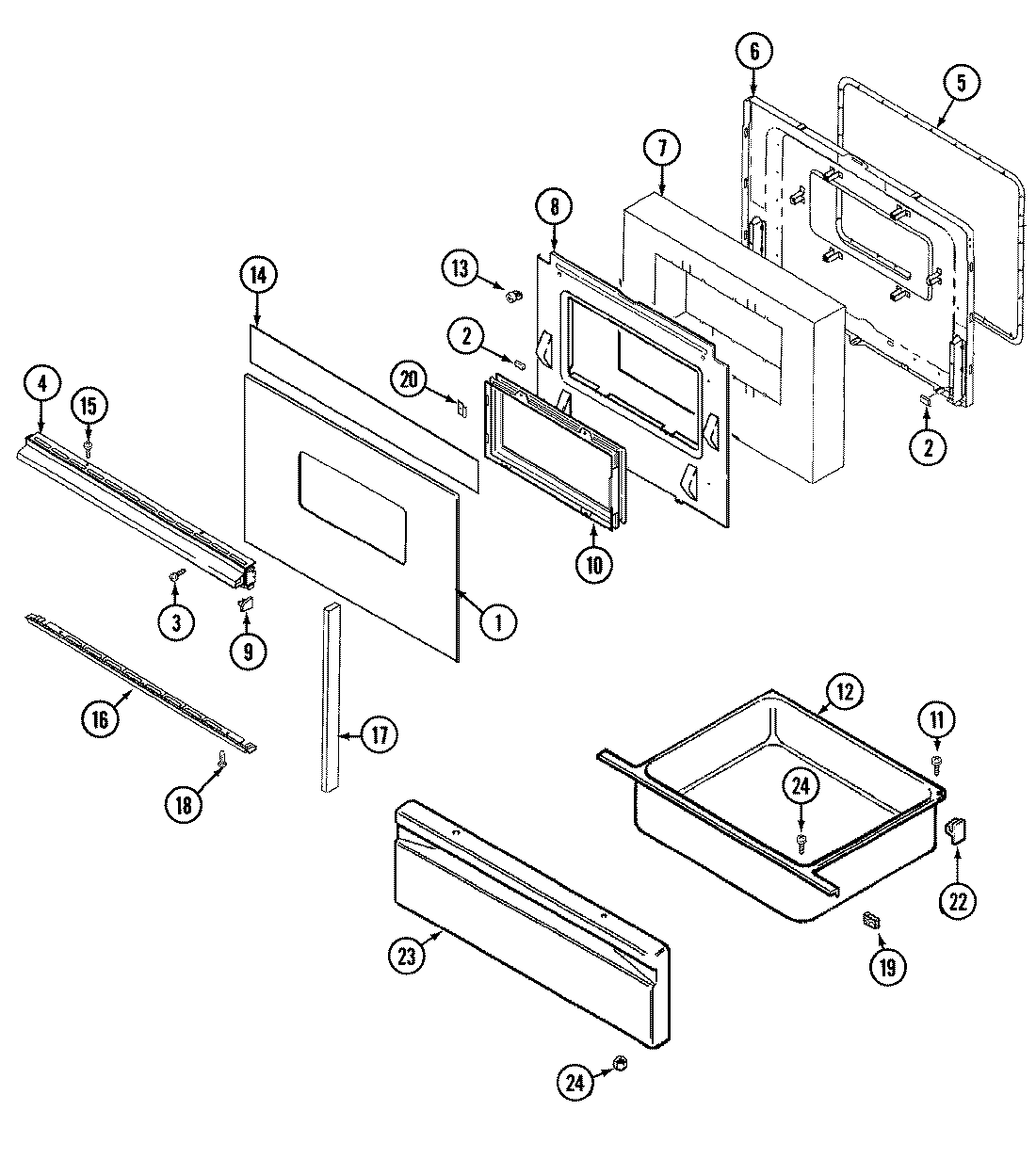

L3521XRW 03 – DOOR/DRAWER (XRx SER PRE 10)

L3521XRW 03 – DOOR/DRAWER (XRx SER PRE 10)

Written by

in

L3521XRW 03 – DOOR/DRAWER (XRx SER PRE 10)

Products

Position	Product
1	MAY 7902P321-60
2	MAY 8010P085-60
3	WP3387230 Whirlpool Screw
4	MAY 7701P103-60
5	MAY 7212P034-60
6	MAY 2402W203-19
7	MAY 4804F033-60
8	MAY 3601F236-47
9	MAY 7744P075-60
9	MAY 7744P076-60
10	MAY 7907P016-60
11	MAY 7101P290-60
12	MAY 3405F019-80
12	MAY 7208P002-60
13	MAY 7103P045-60
14	MAY 8270P078-60
15	WP98008545 Whirlpool Screw
16	MAY 7744P105-60
17	MAY 7744P055-60
18	MAY 74001280
19	MAY 7208P011-60
20	MAY 3805F002-34
20	MAY 74001449
21	WP7101P072-60 Whirlpool Screw
22	WP8004P026-60 Whirlpool Support
23	MAY 2416F039-62
24	WPW10131078 Whirlpool Nut Assembly
