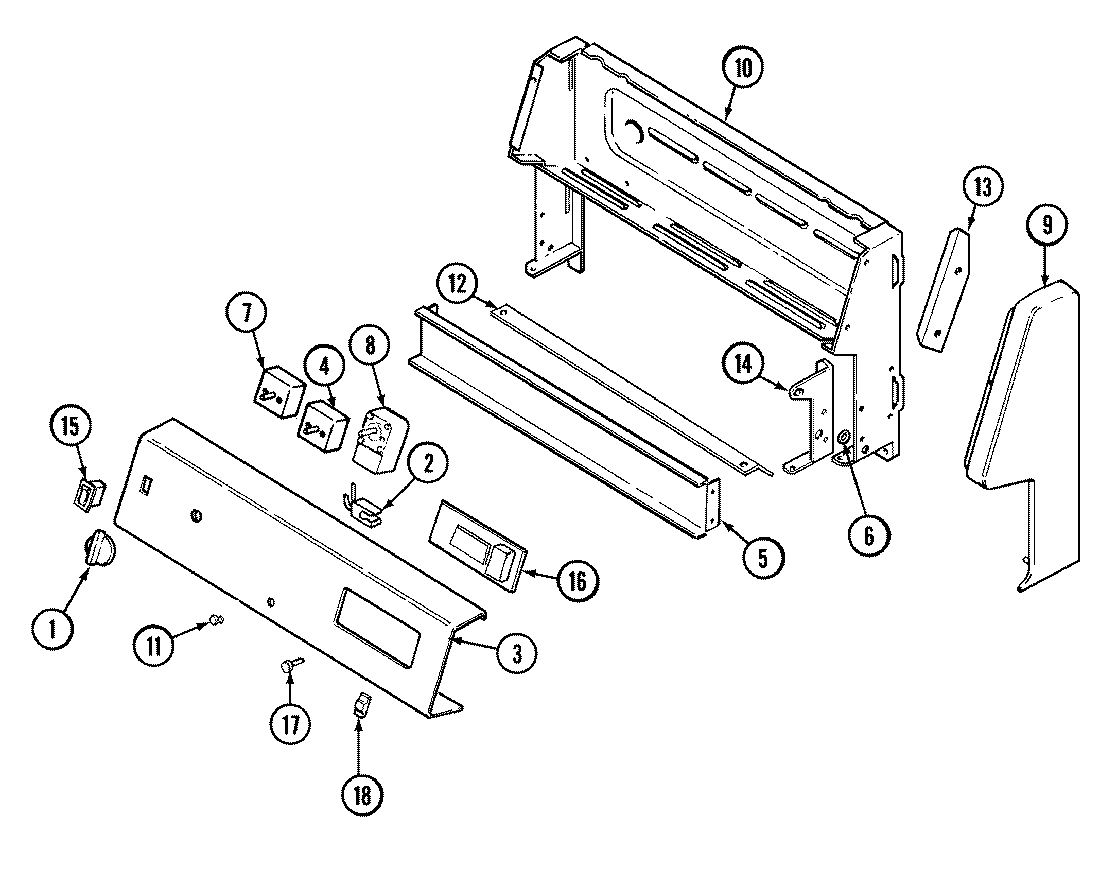

L3523WVV 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7737P040-60
2	W10852510 Whirlpool Indicator Light
3	MAY 4876S068-59
3	MAY 7118P013-60
4	WP7403P255-60 Whirlpool Selector Switch
5	MAY 3802F087-51
6	MAY 7103P129-60
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	WP7404P105-60 Whirlpool Thermostat
9	MAY 7726P089-60
9	MAY 7101P318-60
9	SCREW
9	MAY 7726P090-60
10	MAY 74002162
10	WP59002061 Whirlpool Microwave Screw
11	W11690131 Whirlpool Light Lens
12	MAY 3604F201-80
13	MAY 3807F450-45
13	MAY 3807F449-45
13	SCREW (8BX3/8-NI)
14	MAY 3418D098-60
14	MAY 3418D097-60
15	MAY 7403P314-60
16	MAY 7602P104-60
16	SCREW
17	MAY 7711P473-60
18	MAY 7711P472-60
19	MAY 74001013
19	MAY 74002492
20	MAY 74002467
20	MAY 74002469
21	MAY 16002081
