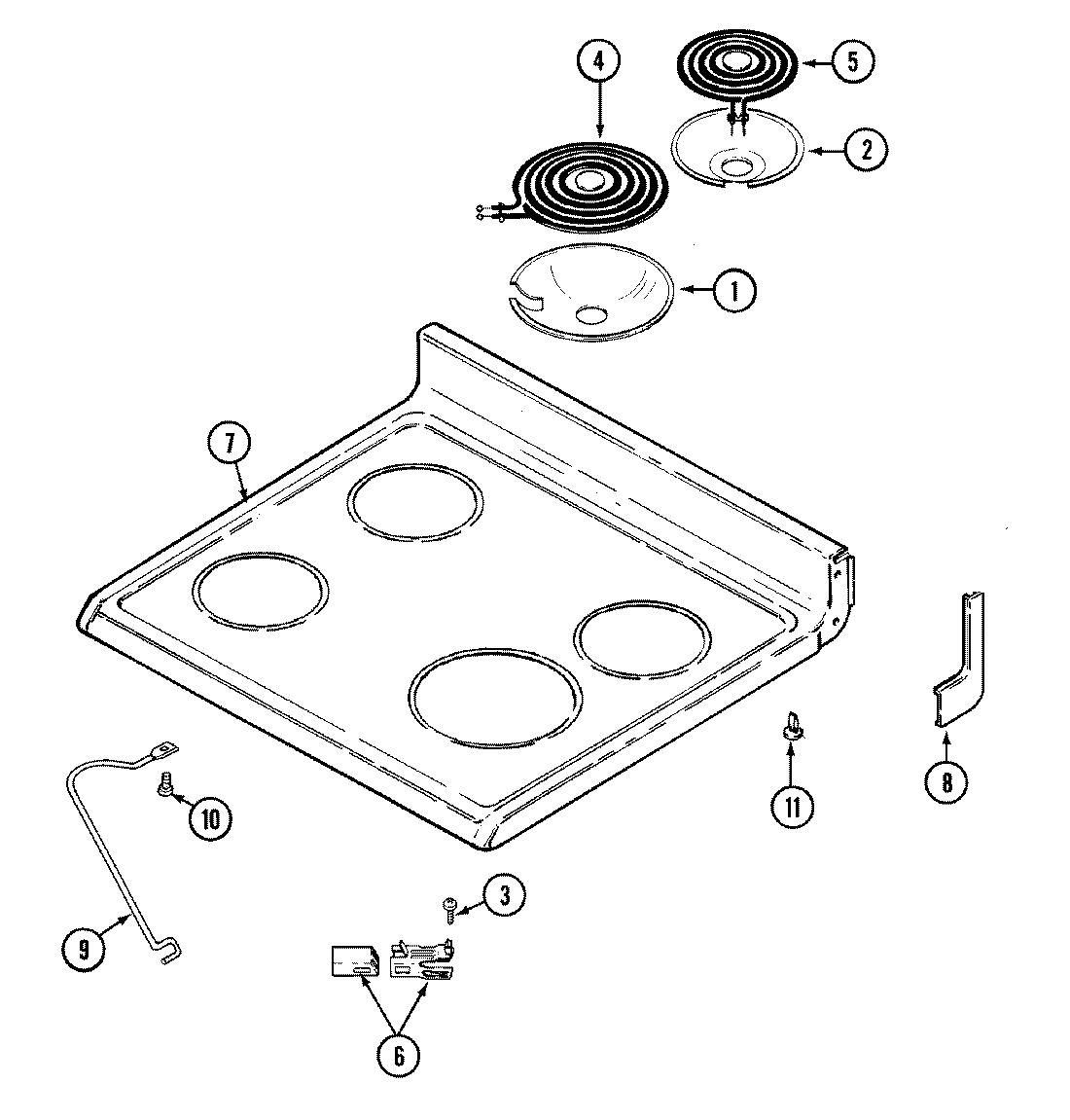

L3523WVV 05 – TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 74001518
2	MAY 74001519
2	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
3	SCREW
4	MAY 12001230
5	WPW10259868 Whirlpool Surface Heating Element
6	MAY 1430306K
7	MAY 2002W103-81
8	MAY 74002563
8	MAY 7746P032-60
8	MAY 7746P033-60
9	MAY 74001170
10	SCREW
11	MAY 8016P015-60
