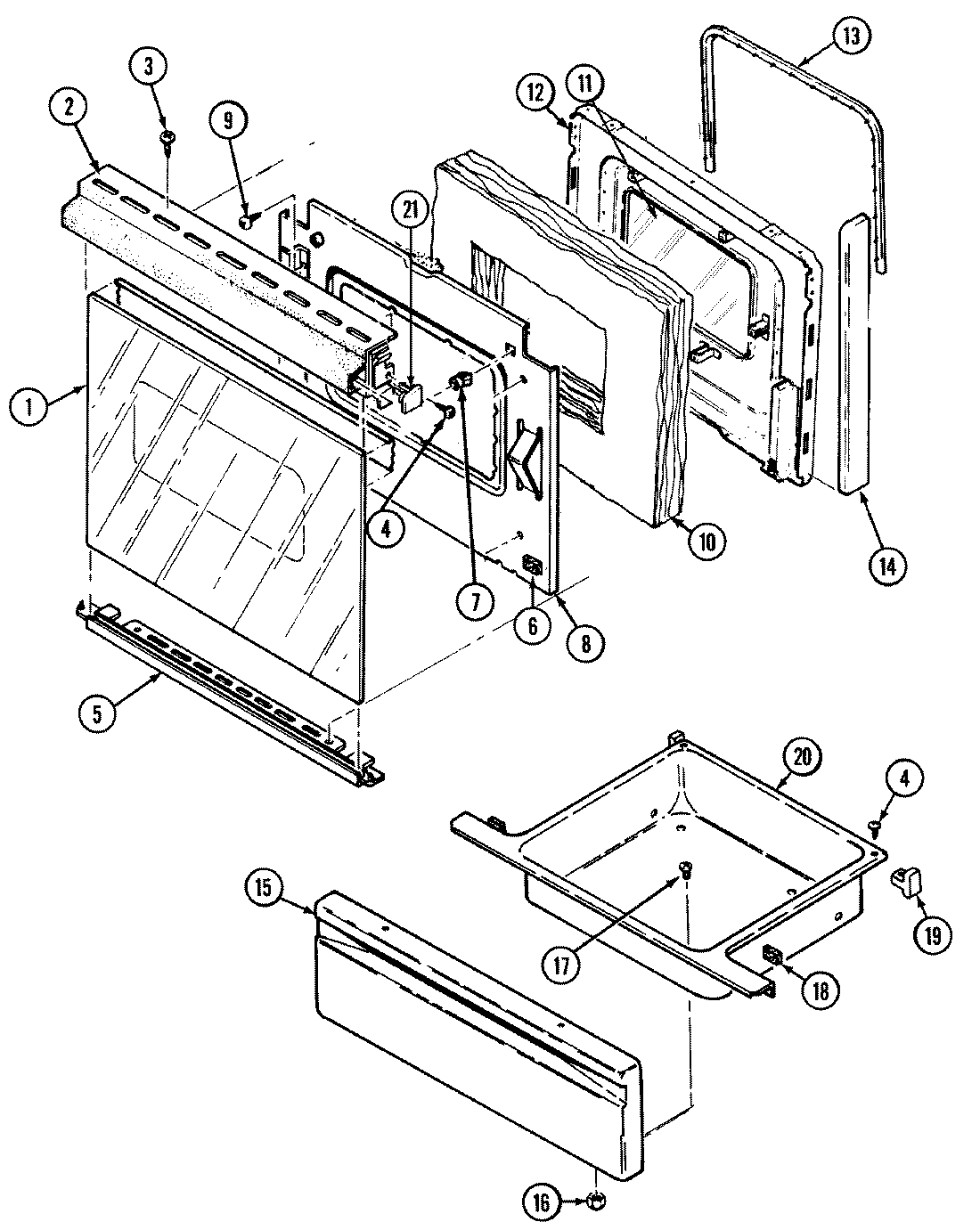

L3527XRB 03 – DOOR/DRAWER (L3527XRB)

L3527XRB 03 – DOOR/DRAWER (L3527XRB)

Written by

in

L3527XRB 03 – DOOR/DRAWER (L3527XRB)

Products

Position	Product
1	MAY 7902P321-60
2	MAY 7701P103-60
3	WP98008545 Whirlpool Screw
4	MAY 7101P329-60
5	MAY 7744P105-60
6	MAY 8010P085-60
7	MAY 8010P075-60
8	MAY 3601F232-45
9	MAY 7101P290-60
10	MAY 4804F033-60
11	MAY 7902P319-60
12	MAY 2402W203-19
13	MAY 7212P034-60
14	MAY 7744P055-60
15	MAY 2416F039-65
16	WPW10131078 Whirlpool Nut Assembly
17	WP4159193 Whirlpool Screw
18	MAY 8010P086-60
19	WP8004P026-60 Whirlpool Support
20	MAY 3405F015-80
21	MAY 7744P075-60
21	MAY 7744P076-60
