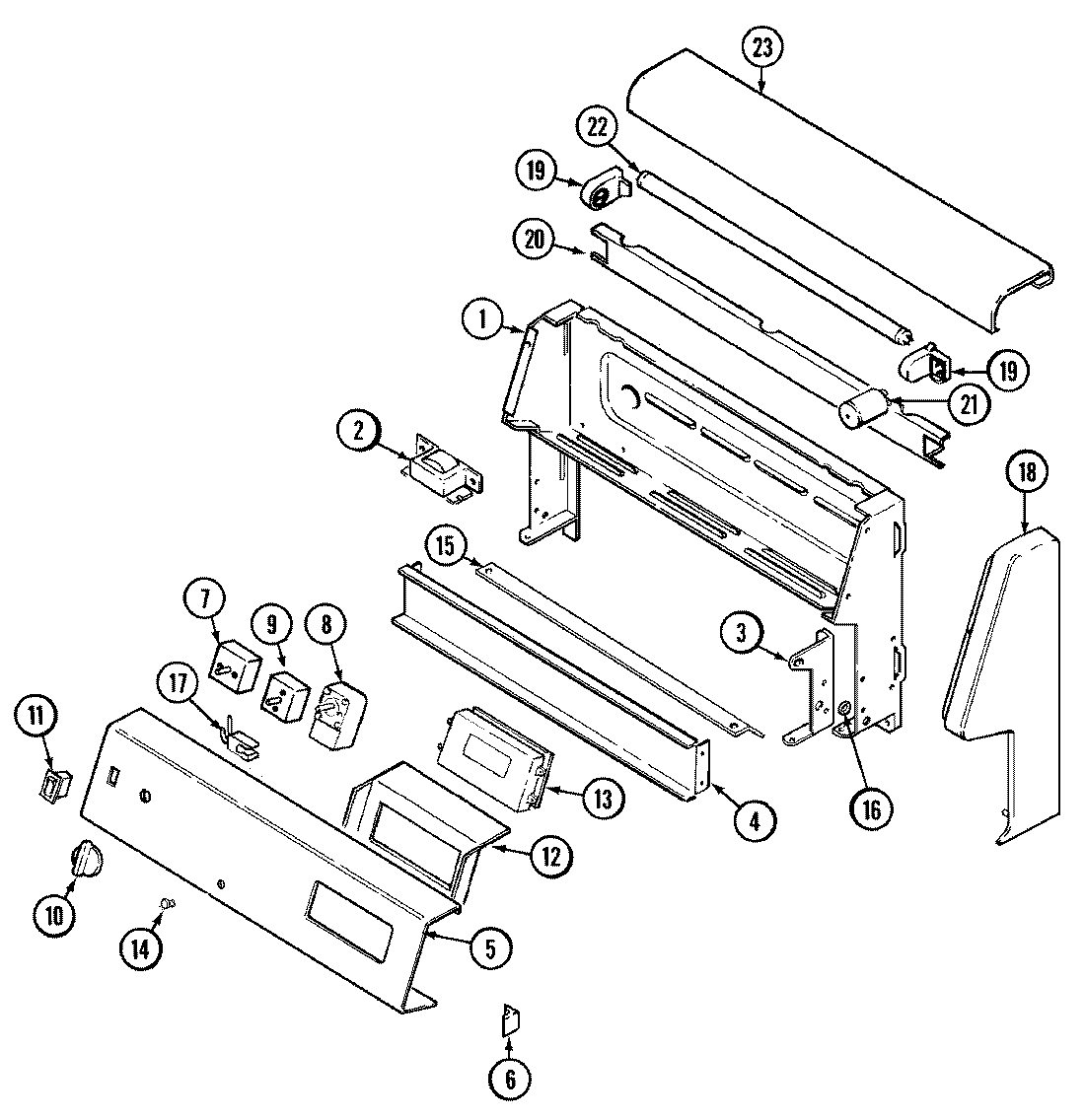

L3581VRV 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74002162
2	MAY 7412P007-60
3	MAY 3418D097-60
3	MAY 3418D098-60
4	MAY 3802F088-51
5	MAY 4876S085-59
6	MAY 8010P083-60
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	SCREW
7	WP7403P239-60 Whirlpool Oven Switch
8	WP7404P105-60 Whirlpool Thermostat
9	WP7403P255-60 Whirlpool Selector Switch
10	MAY 7737P040-60
11	MAY 7403P314-60
12	MAY 3801F247-45
13	MAY 7602P095-60
13	WP8312P015-60 Whirlpool Knob Shaft
14	W11690131 Whirlpool Light Lens
15	MAY 3604F201-80
16	MAY 7103P129-60
17	W10852510 Whirlpool Indicator Light
18	MAY 7726P074-60
18	MAY 7726P073-60
19	MAY 7408P029-60
19	MAY 7408P030-60
20	MAY 3807F406-71
21	MAY 7415P001-60
22	MAY 7407P004-60
23	MAY 7724P059-60
24	MAY 7711P447-60
25	MAY 7711P432-60
26	MAY 5170D145-60
26	MAY 5175D049-60
27	MAY 8113P052-60
27	MAY 8113P030-60
28	MAY 16002081
