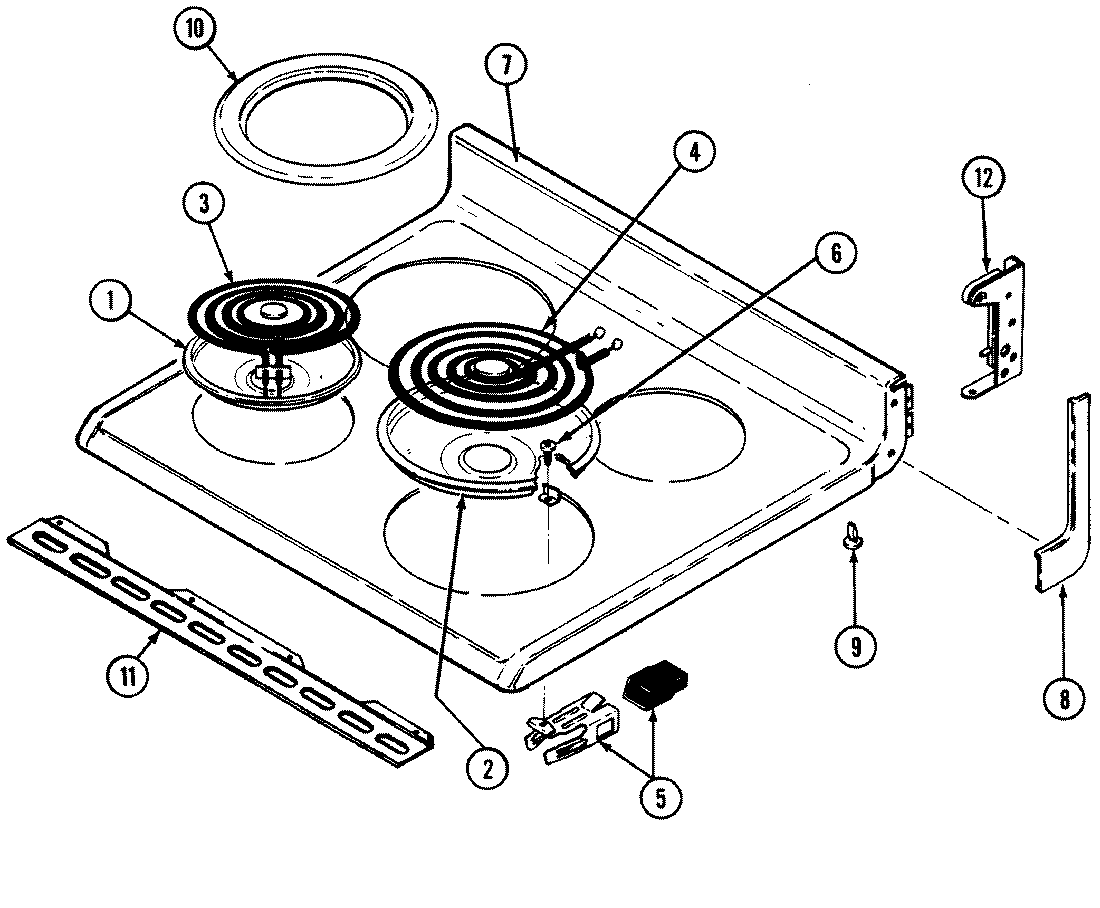

L3581VUV 05 – TOP ASSEMBLY
Written by
in
L3581VUV 05 – TOP ASSEMBLY
Products
Position
Product
1
MAY 7725P018-60
2
MAY 7725P019-60
3
MAY Y04000056
4
MAY Y04000055
5
MAY 1430306K
6
MAY 7118P013-60
7
MAY 2002W099-81
8
MAY 7746P033-60
8
MAY 7746P032-60
8
MAY 7103P129-60
9
MAY 8016P015-60
10
MAY 7744P055-60
10
MAY 7744P054-60
11
MAY 3801F305-80
12
MAY 3807F454-51
12
MAY 3807F453-51
12
SCREW (8BX3/8-NI)
13
MAY 5175D049-60
13
MAY 8114P348-60
←
