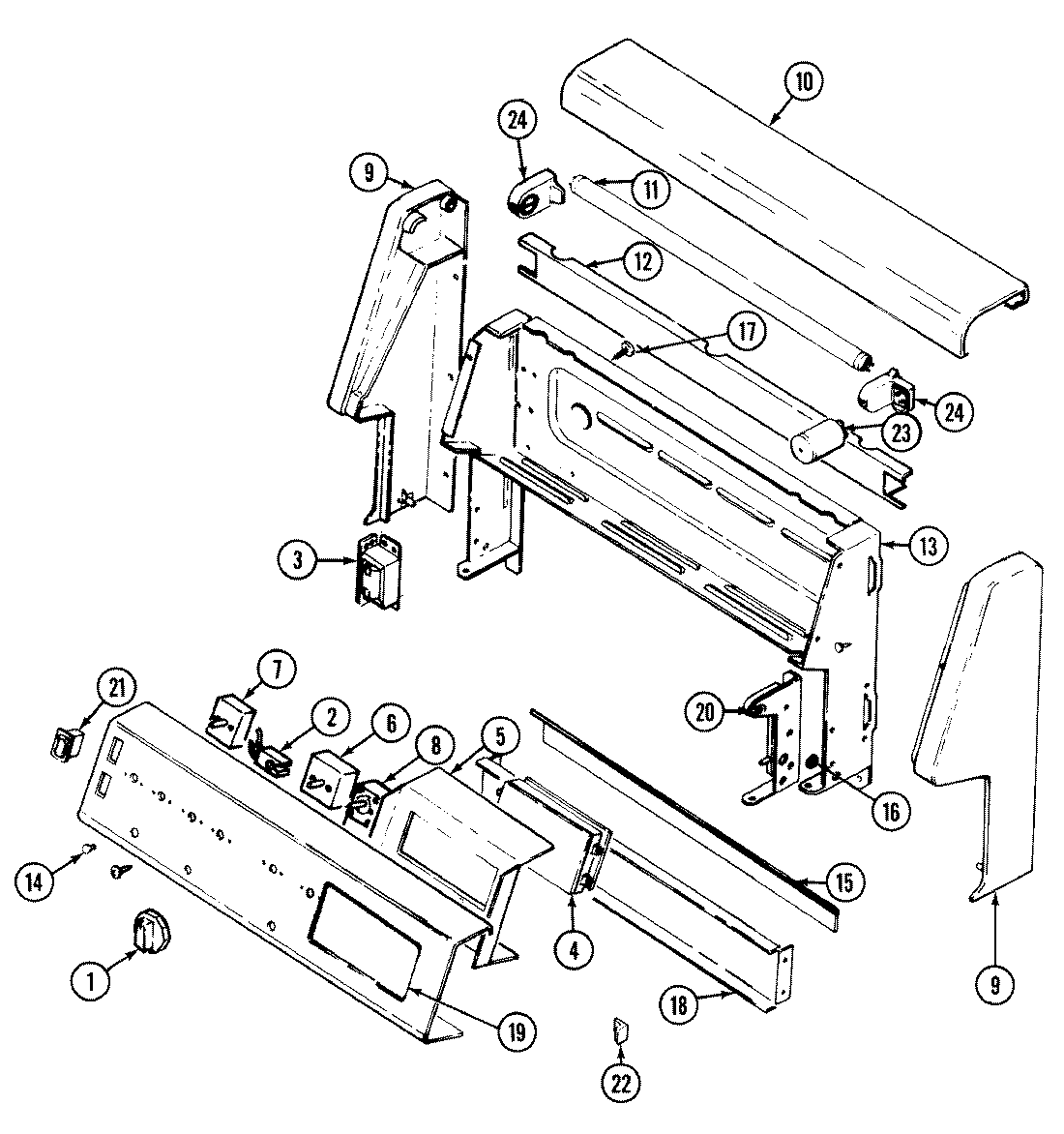

L3581XUA 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7737P032-60
2	W10852510 Whirlpool Indicator Light
3	MAY 7724P062-60
3	MAY 7412P007-60
4	MAY 7602P118-60
5	MAY 3801F330-45
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	SCREW
8	MAY 7404P081-60
9	MAY 7726P047-60
9	MAY 7726P048-60
10	MAY 7724P054-60
11	MAY 7407P004-60
12	MAY 3807F406-71
13	MAY 4001F094-51
14	W11690131 Whirlpool Light Lens
15	MAY 3604F201-80
16	MAY 7103P129-60
17	SCREW (8BX3/8-NI)
18	MAY 3802F088-51
19	MAY 7101P332-60
19	MAY 7703P564-60
20	MAY 3807F454-51
20	MAY 3807F453-51
21	7403P067-60 Whirlpool Light Switch
22	MAY 8010P083-60
23	MAY 7415P001-60
24	MAY 7408P030-60
24	MAY 7408P029-60
25	MAY 5170D145-60
26	MAY 5125A336-60
27	MAY 16002081
27	MAY 8113P030-60
