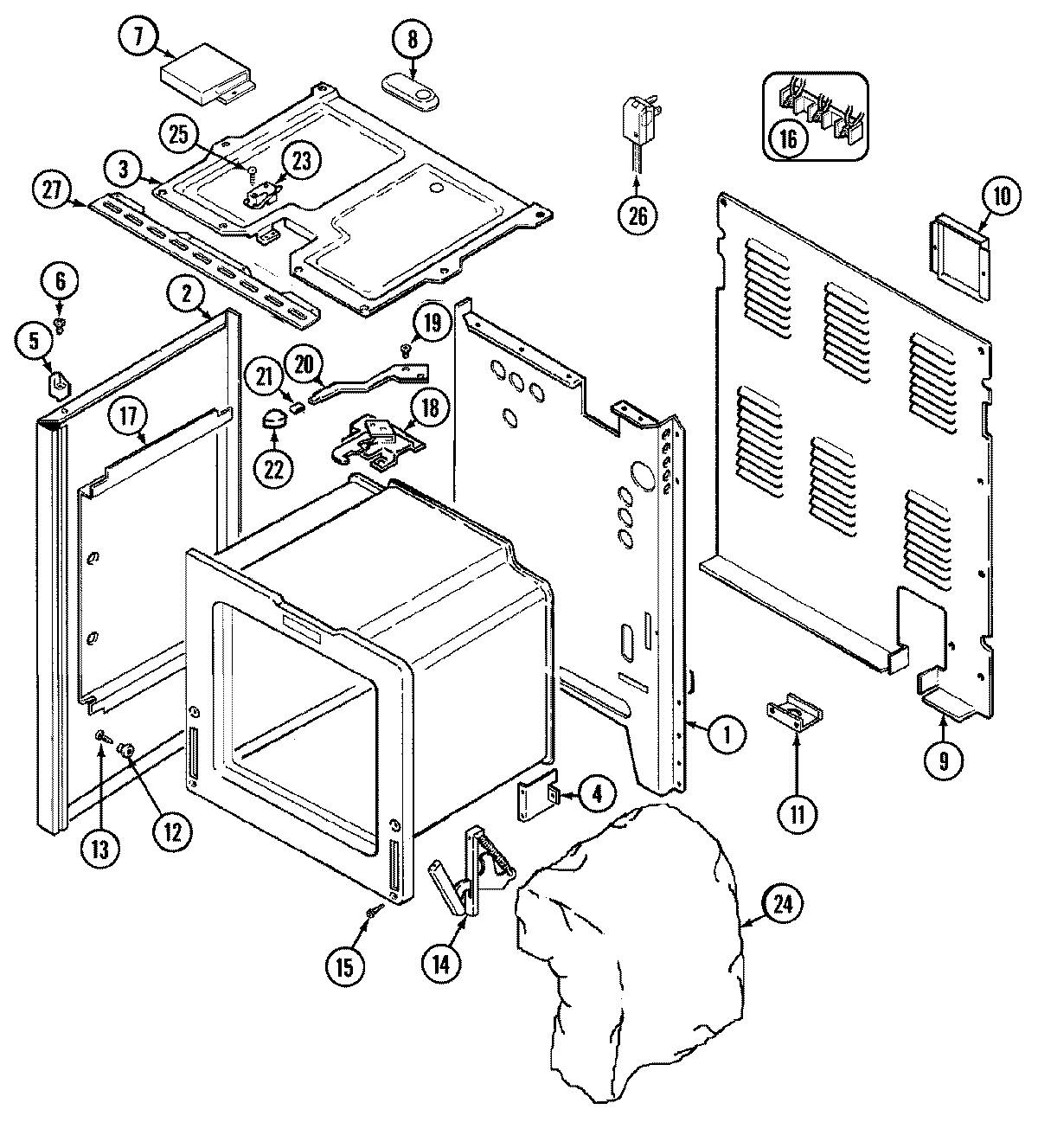

L3832VRV 01 – BODY

Products

Position	Product
1	MAY 4002F203-80
2	MAY 5700D344-71
2	MAY 5700D345-71
3	MAY 74001132
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 4005F398-80
8	COVER, VENT
9	MAY 4005F455-51
10	MAY 4005F427-51
11	MAY 3605F174-51
12	MAY 8004P024-60
13	MAY 74001449
14	MAY 7106P056-60
15	SCREW, HINGE
16	WPW10245259 Whirlpool Terminal Block
17	MAY 3804F109-51
18	MAY 7101P280-60
18	MAY 8002P025-60
19	SCREW, LEVER
20	MAY 74001725
21	MAY 7112P003-60
22	MAY 7701P153-60
23	MAY 3604F203-45
23	MAY 7403P324-60
24	MAY 4804F038-60
24	MAY 4804F036-60
25	MAY 7101P130-60
26	MAY 7402P050-60
27	MAY 3801F305-80
