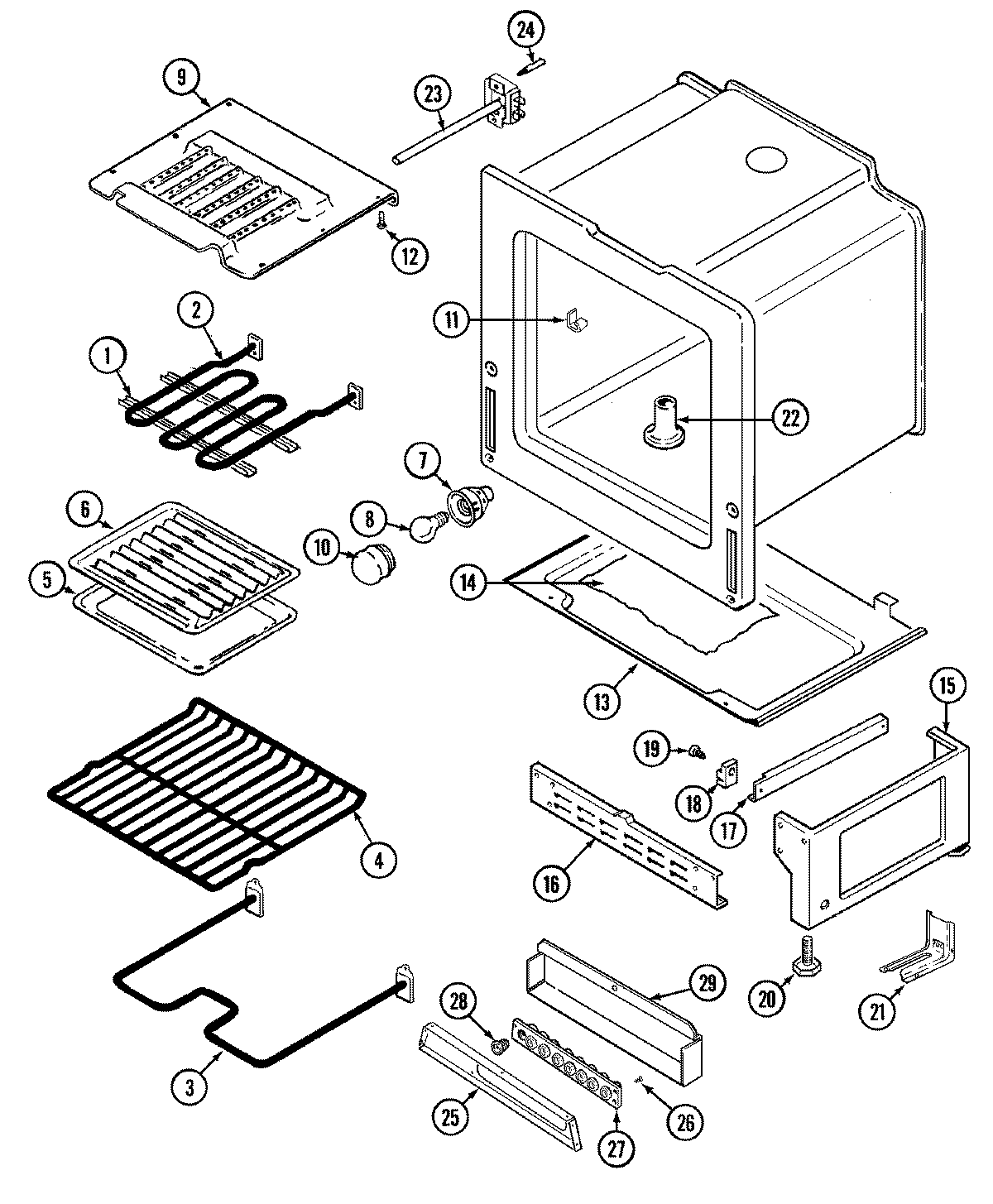

L3832VRV 04 – OVEN/BASE
Written by
in
L3832VRV 04 – OVEN/BASE
Products
Position
Product
1
WP400021-1 Whirlpool Screw
1
MAY 3807F387-45
2
MAY Y04000057
3
MAY 7406P064-60
4
WPW10282492 Whirlpool Oven Rack
5
MAY Y3401F02019
6
MAY Y3413F01619
7
WP7407P182-60 Whirlpool Lamp
8
RANGE ONLY 40W 120V APPL BULB
9
MAY 3601F237-47
10
WP9781049 Whirlpool Light Lens
11
WP7112P004-60 Whirlpool Thermal Clip
12
MAY 7101P290-60
13
MAY 3804F109-51
14
MAY 8312P058-60
15
MAY 4020W013-80
16
MAY 4020F001-80
17
MAY 3406F028-51
18
MAY 8004P033-60
19
MAY 74001449
20
MAY 7101P306-60
21
MAY 3801F218-51
21
MAY 7101P289-60
22
SCREW
22
MAY 8026P019-60
23
MAY 7404P057-60
24
MAY 7101P337-60
25
MAY 3801F309-80
26
MAY 7103P064-60
26
MAY 7101P068-60
27
MAY 7401P031-60
28
MAY 7416P006-60
28
MAY 7416P005-60
29
MAY 4005F417-51
←
