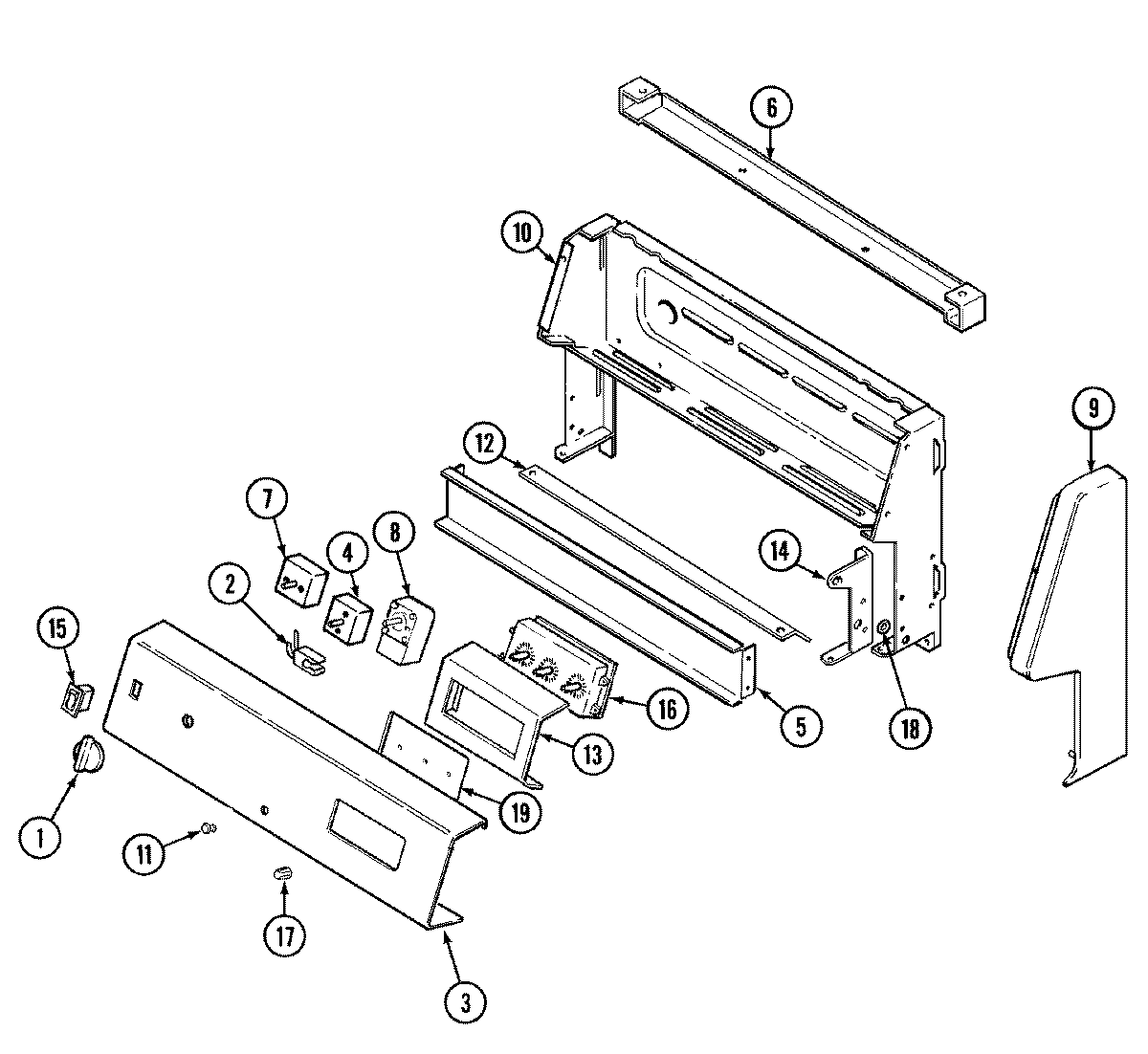

L3832XRW 02 – CONTROL PANEL

Products

Position	Product
2	W10852510 Whirlpool Indicator Light
2	MAY 7407P081-60
4	MAY 7403P342-60
5	MAY 3802F088-51
6	MAY 4001F064-51
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	MAY 7404P100-60
8	SCREW
10	MAY 4001F091-51
11	W11690159 Whirlpool Handle
11	W11690131 Whirlpool Light Lens
12	MAY 3604F201-80
13	MAY 3801F264-45
14	MAY 3418D098-60
14	MAY 3418D097-60
16	MAY 7201P056-60
18	WP3195558 Whirlpool Nut
19	MAY 7902P109-60
20	MAY 5170D143-60
20	MAY 5175D049-60
21	MAY 8113P031-60
22	MAY 16002081
