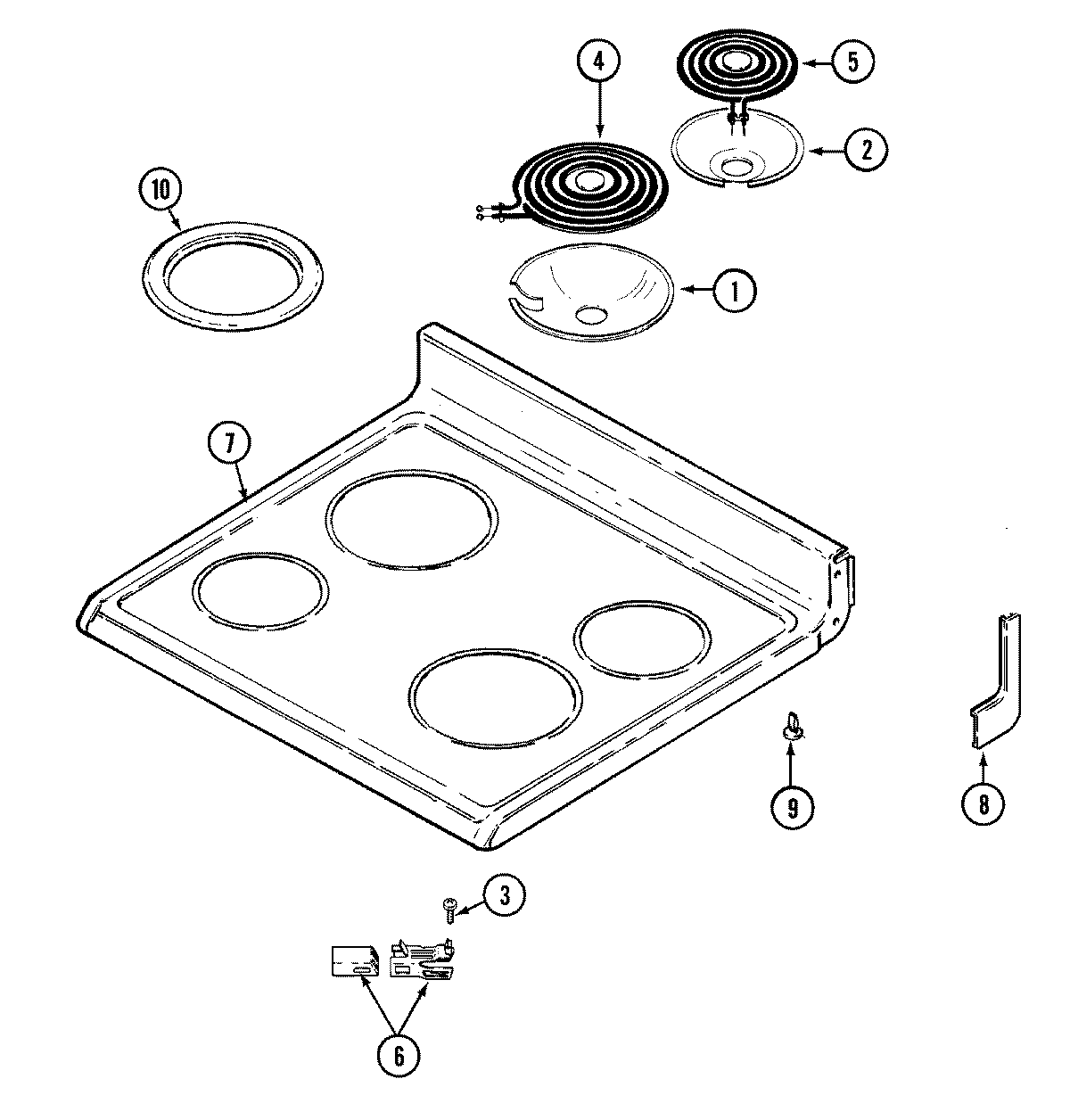

L3872VVV 06 – TOP ASSEMBLY

L3872VVV 06 – TOP ASSEMBLY

Written by

in

L3872VVV 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 7725P019-60
1MAY 7725P047-60
1DRIP BOWL 8" W/HOLE CHROME
2WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2MAY 7725P018-60
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2MAY 7725P048-60
3MAY 7118P013-60
4MAY 12500115
4MAY 74001774
5MAY 74001776
5MAY 12500116
6MAY 1430306K
7MAY 2002W099-81
8WP3195558 Whirlpool Nut
8MAY 7746P032-60
8MAY 7746P033-60
9MAY 8016P015-60
10MAY 7744P131-60
10MAY 7744P130-60
10NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
