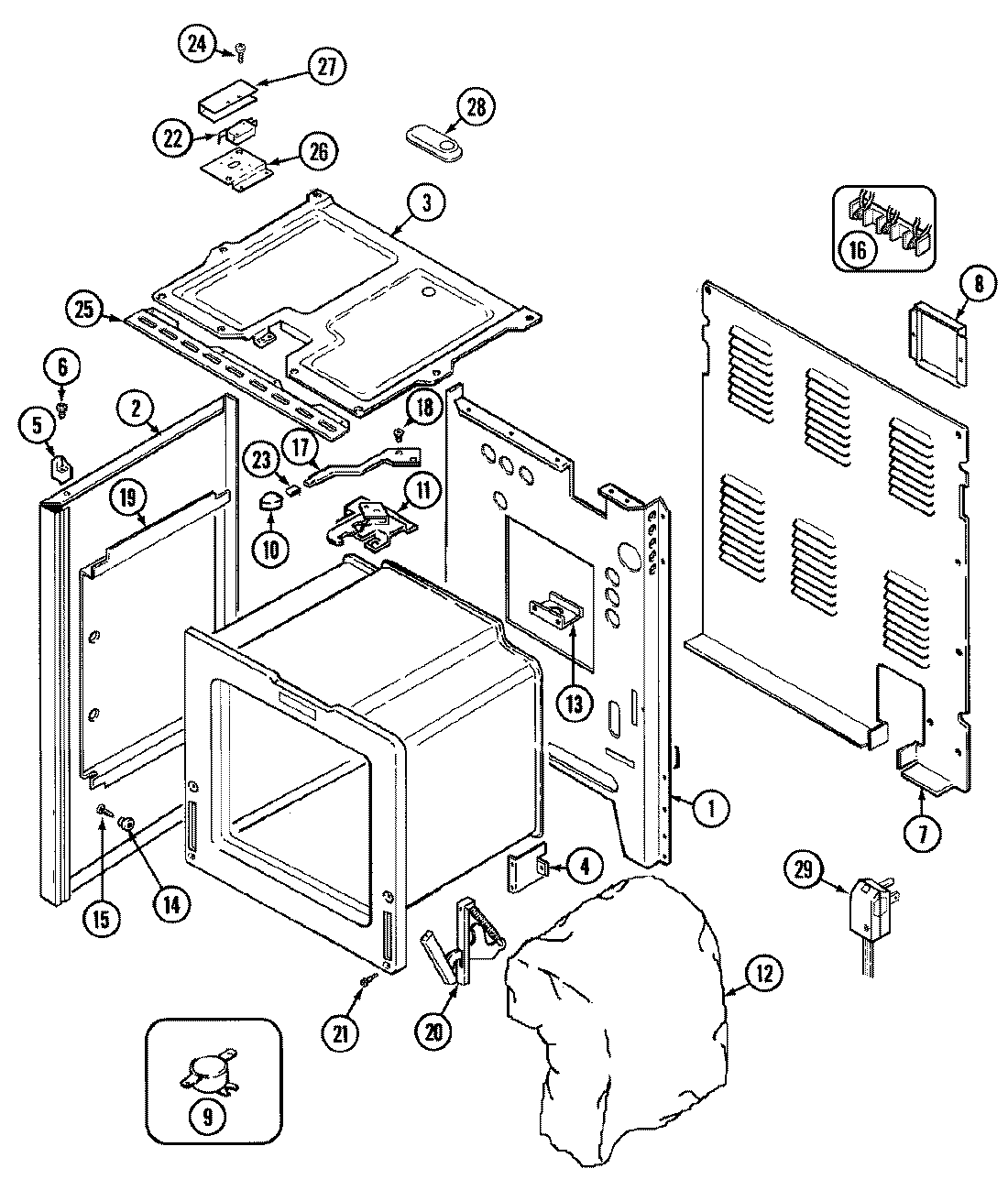

L3872XRA 01 – BODY
Written by
in
L3872XRA 01 – BODY
Products
Position
Product
1
MAY 74001772
2
MAY 74001885
2
MAY 7003P067-60
2
MAY 8270P078-60
2
MAY 2618F085-74
3
MAY 4011F240-19
3
MAY 74001172
4
SUPPORT,OVEN REAR
5
SPACER, MAIN TOP (LT)
5
SPACER, MAIN TOP (RT)
6
MAY 7101P313-60
7
MAY 4005F455-51
8
MAY 4005F427-51
9
MAY 7403P160-60
10
MAY 74001719
11
MAY 8002P025-60
11
MAY 4804F028-60
11
MAY 7101P280-60
12
MAY 74001800
12
MAY 4804F036-60
13
MAY 3605F174-51
14
MAY 8004P024-60
16
MAY 7401P041-60
17
MAY 8009P024-60
18
SCREW, LEVER
19
MAY 3804F103-51
20
MAY 7106P056-60
21
SCREW (10-24X5/16-NI)
22
MAY 7403P323-60
22
MAY 74001745
23
MAY 7112P112-60
24
MAY 7101P031-60
25
MAY 3801F305-80
26
MAY 3605F197-51
27
MAY 74001999
28
MAY 74001449
28
COVER, VENT
29
MAY 7402P050-60
←
