L3872XVB 03 – DOOR/DRAWER
Written by
in

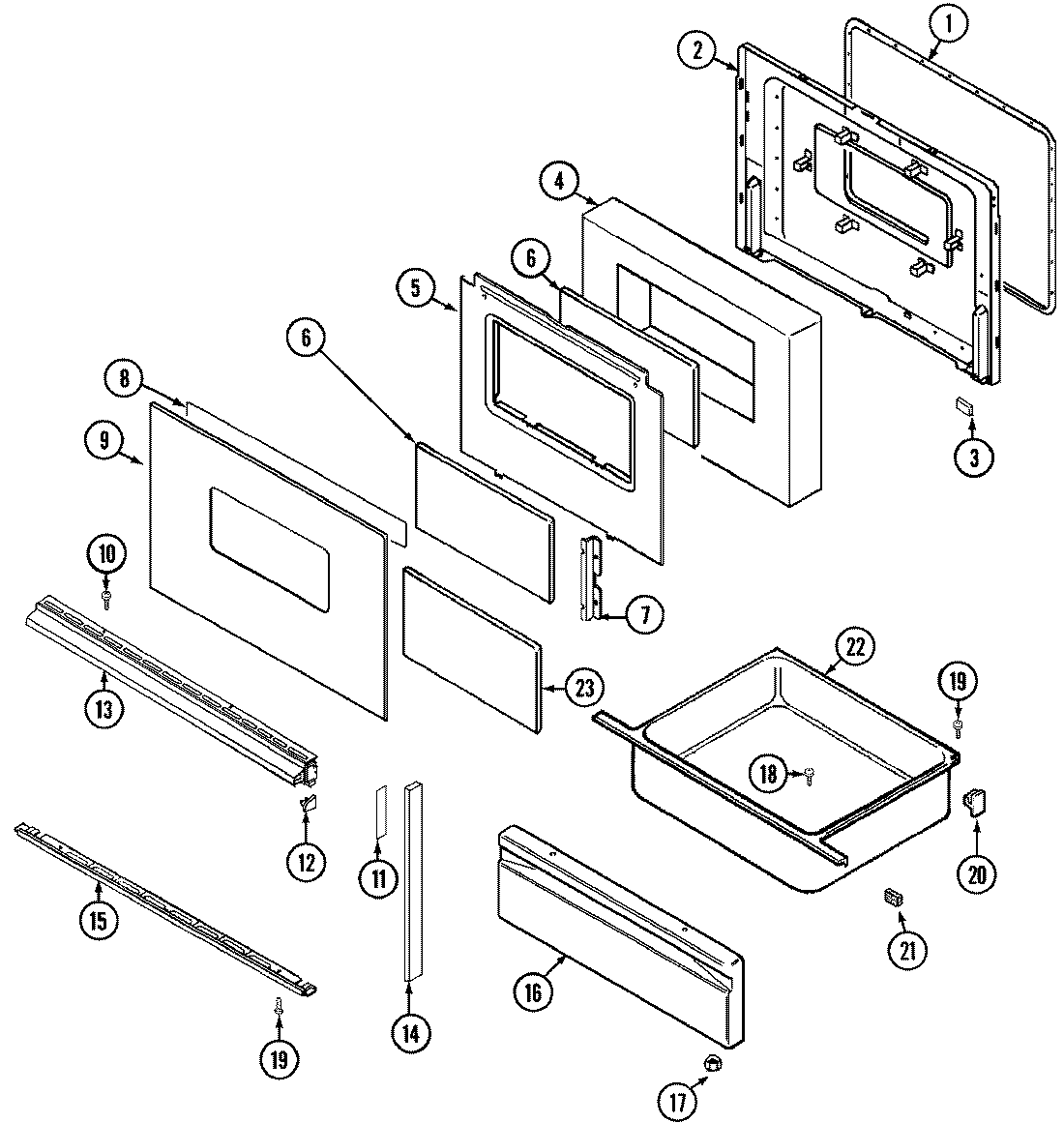

L3872XVB 03 – DOOR/DRAWER
Products
Position
Product
1
GASKT-DOOR OVEN
2
MAY 2402W209-19
3
MAY 8010P085-60
4
MAY 74001842
5
MAY 74001843
6
MAY 74001841
7
MAY 74001844
8
MAY 8270P078-60
9
MAY 7902P321-60
10
WP98008545 Whirlpool Screw
11
MAY 8270P093-60
12
MAY 74002540
12
MAY 74002539
13
MAY 7701P103-60
14
MAY 74002084
15
MAY 7744P105-60
16
MAY 2416F039-65
17
WPW10131078 Whirlpool Nut Assembly
18
WP7101P072-60 Whirlpool Screw
20
WP8004P026-60 Whirlpool Support
21
MAY 7208P011-60
22
SCREW
22
MAY 3405F019-80
23
MAY 74002002
←
