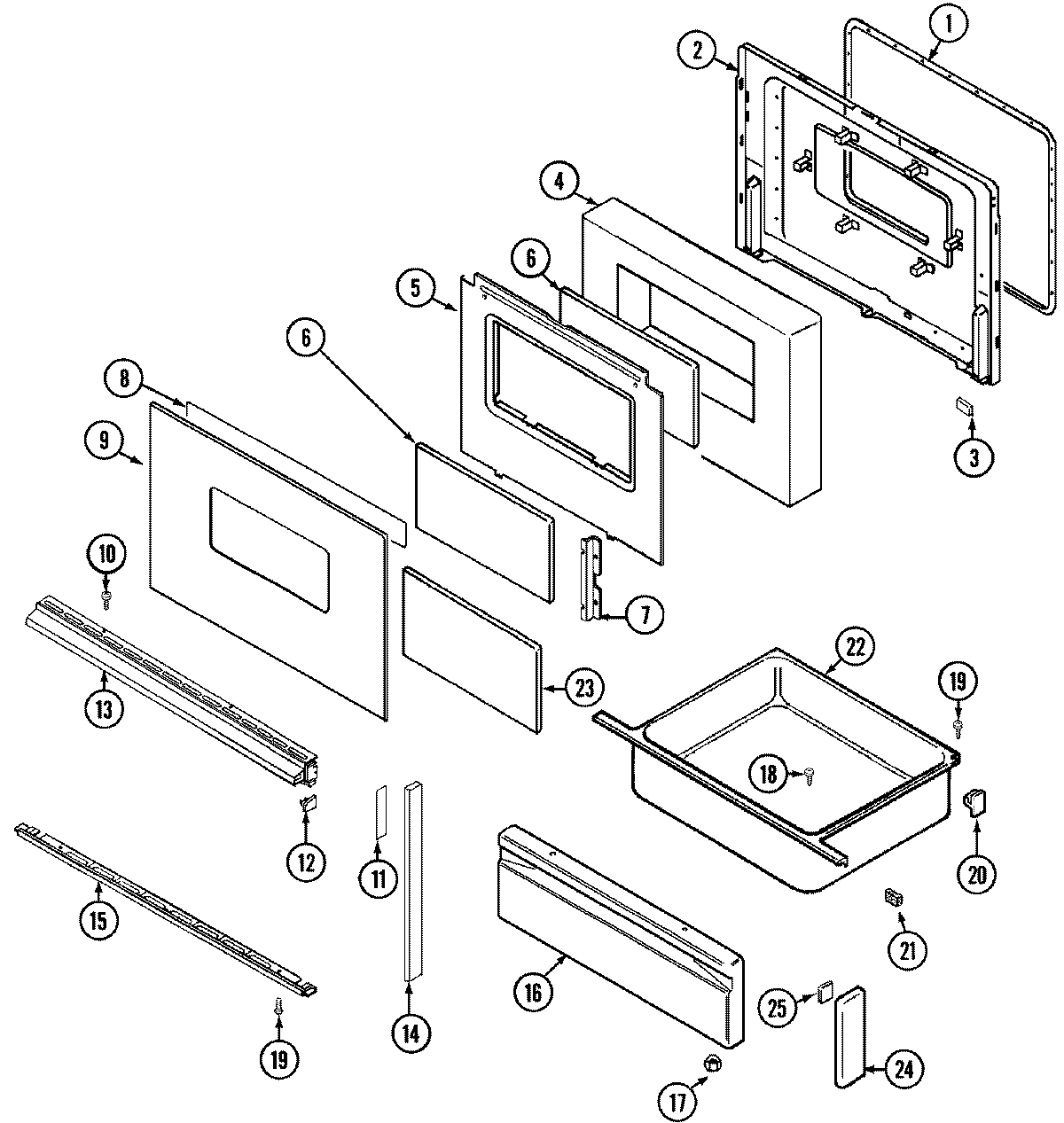

L3878XVA 04 – DOOR/DRAWER (SER. PRE. 21)

L3878XVA 04 – DOOR/DRAWER (SER. PRE. 21)

Written by

in

L3878XVA 04 – DOOR/DRAWER (SER. PRE. 21)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8MAY 8270P078-60
9MAY 7902P321-60
10WP98008545 Whirlpool Screw
11MAY 8270P093-60
12MAY 74002540
12MAY 74002539
12MAY 7744P076-60
12MAY 7744P075-60
13MAY 7701P103-60
14MAY 7744P055-60
14MAY 74002084
15MAY 7744P105-60
16MAY 2416F039-64
17WPW10131078 Whirlpool Nut Assembly
18WP7101P072-60 Whirlpool Screw
20WP8004P026-60 Whirlpool Support
21MAY 7208P011-60
22SCREW
22MAY 3405F019-80
23MAY 74002002
