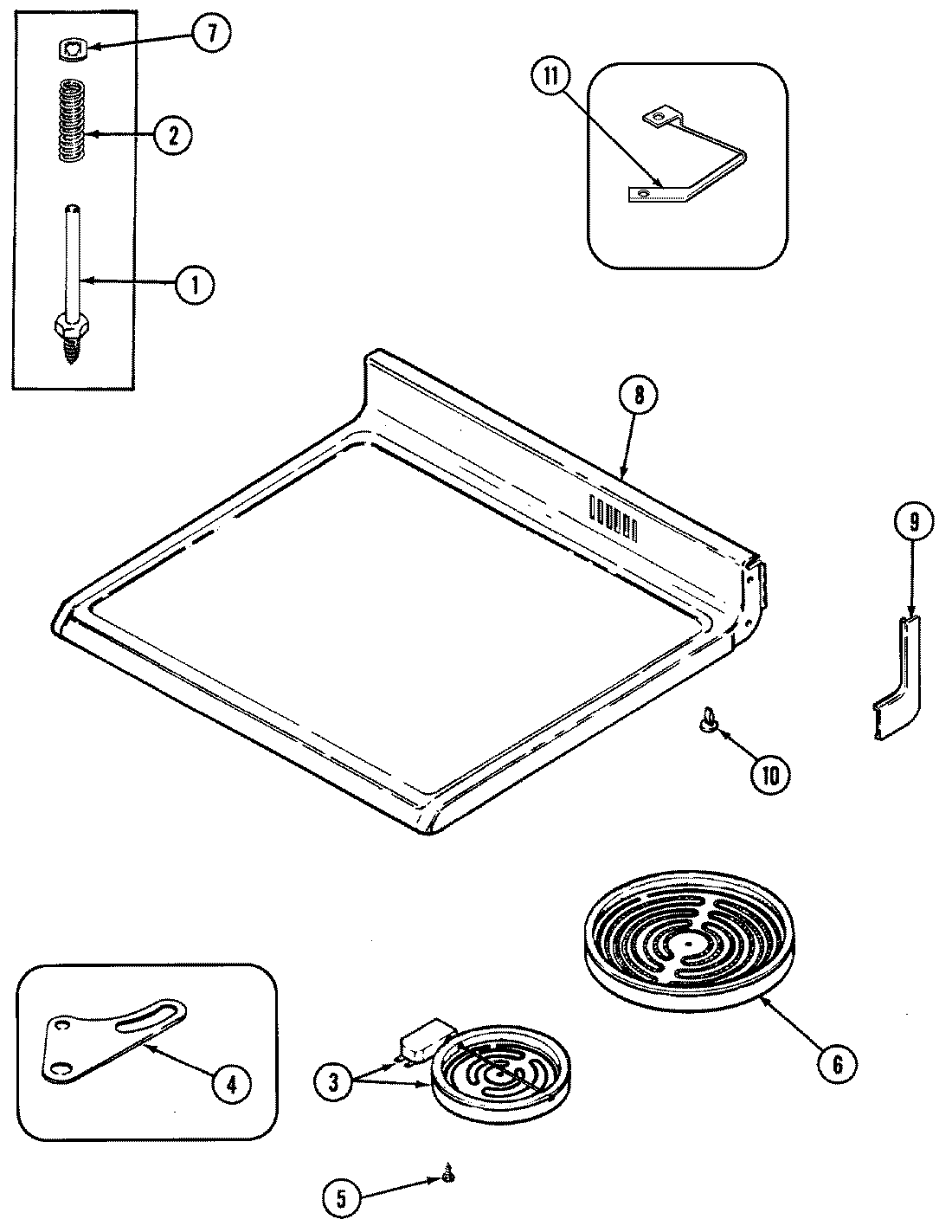

L3878XVA 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 7113P013-60
2	MAY 7803P066-60
3	MAY 7406P074-60
3	MAY 12500041
3	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
4	MAY 3819F013-45
5	MAY 7118P013-60
6	W10823707 Whirlpool Range Radiant Surface Element 8"
6	MAY 12500040
6	MAY 7406P073-60
6	MAY 74002652
7	MAY 7112P091-60
7	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8	MAY 5706S076-84
8	SCREW
8	MAY 74001553
8	WA906B Whirlpool Cooktop Glass Scraper
8	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
9	MAY 7746P030-60
9	MAY 7746P031-60
9	WP3195558 Whirlpool Nut
10	MAY 74001428
11	MAY 74001437
