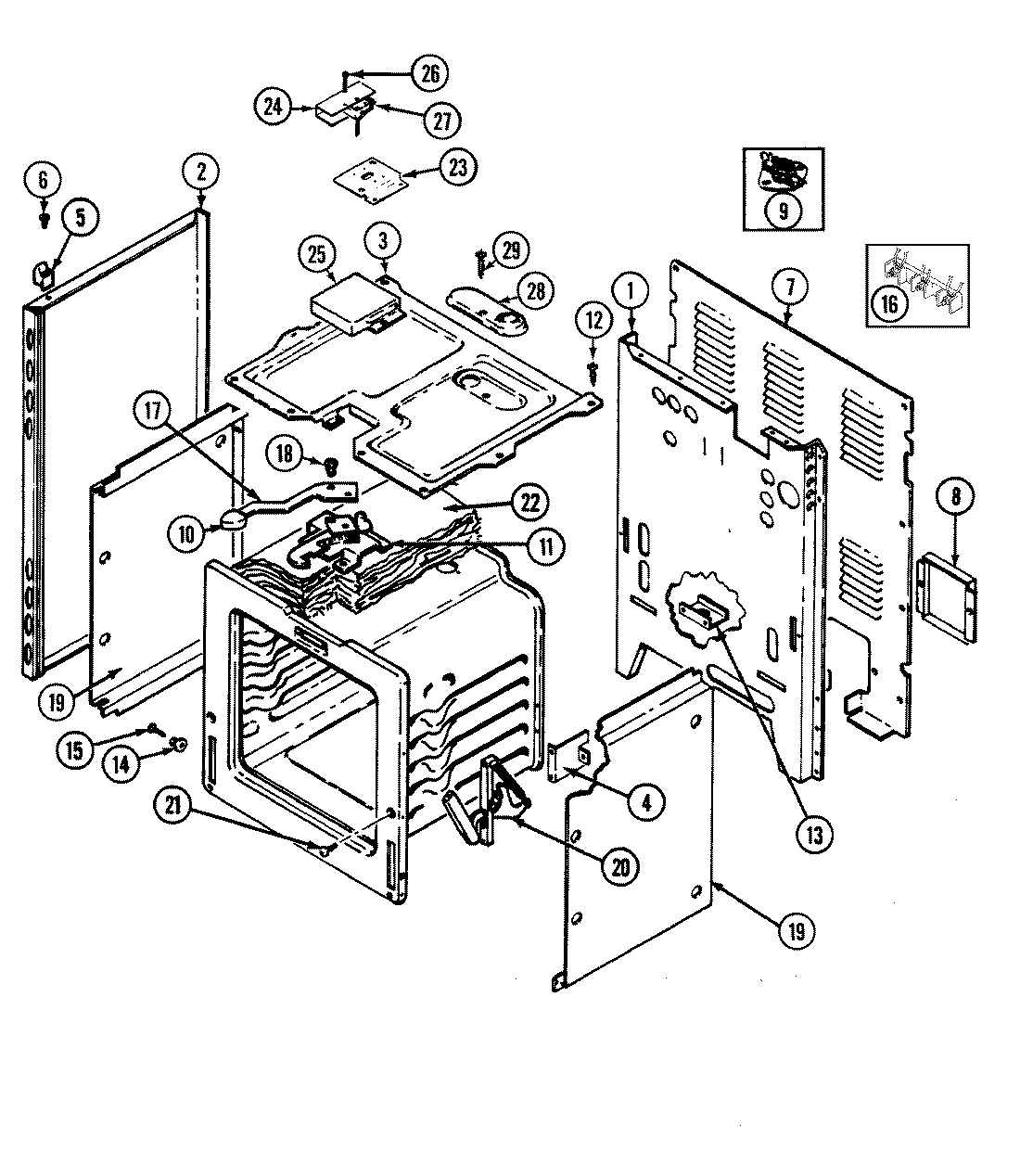

L3882XVA 01 – BODY
Written by
in
L3882XVA 01 – BODY
Products
Position
Product
1
MAY 4002F189-80
2
MAY 2618F110-74
2
TAPE, FOIL (3“ WIDE)
3
MAY 4011F240-19
4
SUPPORT,OVEN REAR
5
SPACER, MAIN TOP (LT)
5
SPACER, MAIN TOP (RT)
6
MAY 7118P013-60
7
MAY 4005F454-51
8
MAY 4005F427-51
9
MAY 7403P160-60
10
MAY 7701P132-60
10
MAY 7112P003-60
11
MAY 8002P025-60
11
MAY 7101P280-60
11
MAY 4804F028-60
12
MAY 7101P290-60
13
MAY 3605F174-51
14
MAY 8004P024-60
15
WP400021-1 Whirlpool Screw
16
MAY 7401P041-60
17
MAY 8009P024-60
18
SCREW, LEVER
19
MAY 3804F103-51
20
MAY 7106P056-60
21
WP4159193 Whirlpool Screw
22
MAY 4804F038-60
22
MAY 4804F036-60
23
MAY 3605F197-51
24
MAY 7003P049-60
25
MAY 4005F398-80
26
MAY 7101P130-60
27
MAY 3604F203-45
27
MAY 7403P323-60
28
COVER, VENT
29
SCREW
29
MAY 74001010
29
MAY 5195D092-60
29
MAY 5170P205-60
29
MAY 5195D082-60
←
