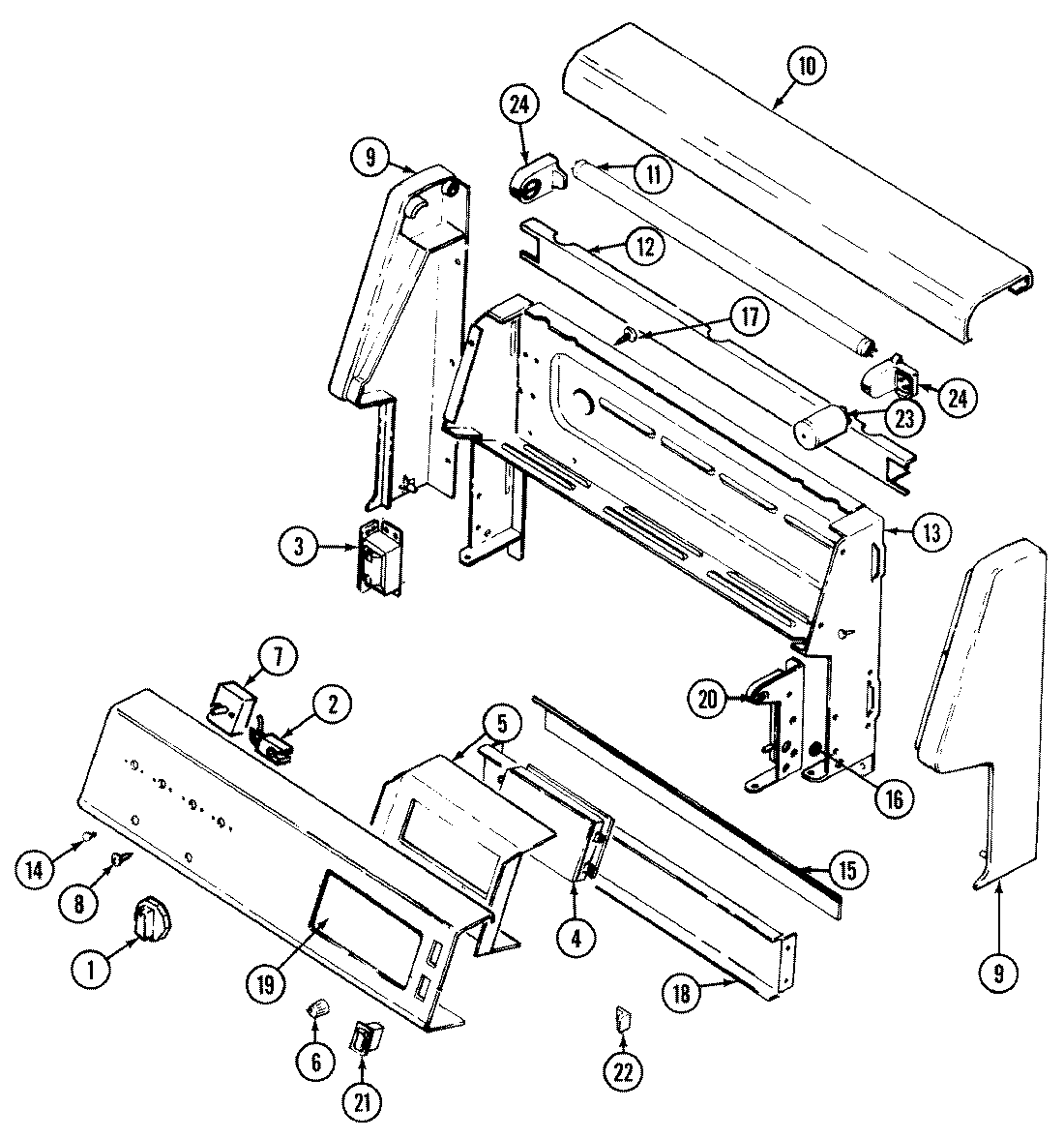

L3882XVW 02 – CONTROL PANEL

L3882XVW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 7731P082-60
2W10852510 Whirlpool Indicator Light
3MAY 7724P062-60
3MAY 7412P007-60
4MAY 74001005
5MAY 3801F330-45
6WP7711P492-60 Whirlpool Clock Knob
7WP7403P239-60 Whirlpool Oven Switch
7WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8SCREW
9MAY 7726P047-60
9MAY 7726P048-60
10MAY 7724P054-60
11MAY 7407P004-60
12MAY 3807F406-71
13MAY 4001F094-51
14W11690131 Whirlpool Light Lens
15MAY 3604F201-80
16MAY 7103P129-60
17SCREW (8BX3/8-NI)
18MAY 3802F088-51
19MAY 7703P587-60
19WPY706189 Whirlpool Stove Screw
20MAY 3807F454-51
20MAY 3807F453-51
217403P067-60 Whirlpool Light Switch
22MAY 8010P083-60
23MAY 7415P001-60
24MAY 7408P029-60
24MAY 7408P030-60
24MAY 5125A382-60
24MAY 5170D201-60
25MAY 16002081
25MAY 8113P068-60
