L3B150GL0 0

Products

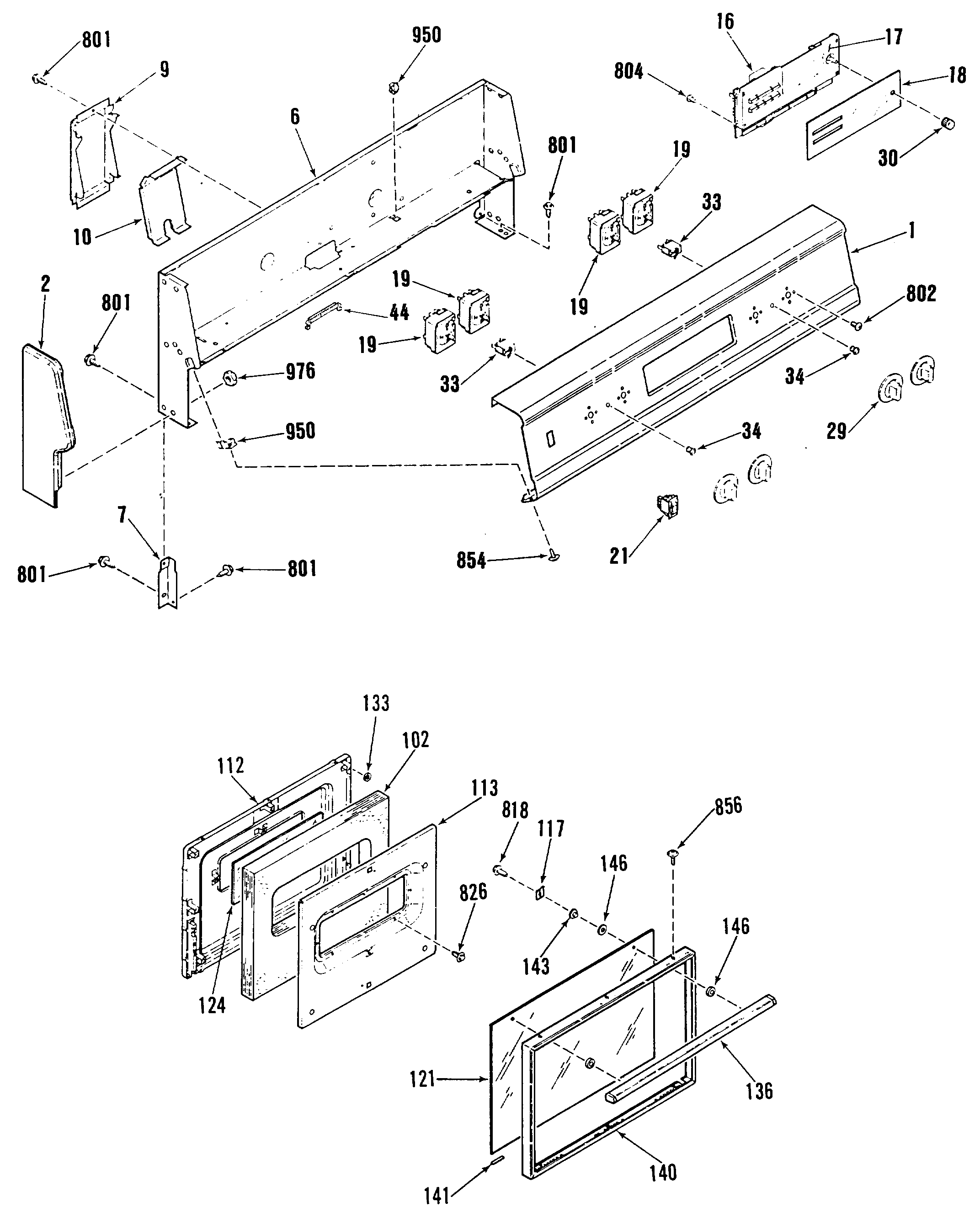

PositionProduct
1GEN WB07X1788
2END CAP RT
2END CAP LT
6GEN WB61X0364
7BACKGUARD SUPPORT LT
7BACKGUARD SUPPORT-RT
9GEN WB02X9415
10COVER RACEWAY
16CLOCK OVEN CONTROL KIT
17GEN WB12M0003
18GEN WB02X9578
19WB21X36771 GE Surface Element Switch
21ROCKER SWITCH-GRAY
29GEN WB03X0812
30CLOCK KNOB
33WB25T10039 GE Oven Light Indicator
34GEN WB25X0098
44UNKNOWN
102UNKNOWN
112OV DR LINING
113INSULATION RETAINER
117OV DR GLASS RETAINER
121WB56X1902 GE Oven Outer Glass
124OVEN DOOR GLASS-CENTER
133FELT WASHER
136OV DOOR HANDLE
140OV DOOR FRAME
141GEN WB02X9036
143UNKNOWN
146DOOR HANDLE SPACER-BLACK
147FIBER WASHER
201GEN WB53X0281
202GEN WB63X0356
203GEN WB63M0001
204GEN WB58X0065
211UNKNOWN
212GEN WB02X9528
216GEN WB34M0001
217WIRE SHIELD-UPPER
218GEN WB02X9426
221BODY SIDE-WHITE-SMOOTHJ
221UNKNOWN
222LOWER FRONT PANEL-ALMOND
222LOWER FRONT PANEL-WHITE
231OVEN BODY INSULATION
232OV BACK INSULATION
234SERVICE CORD INSULATOR
241OVEN RACK-LOWER OVEN
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
253GEN WB20X0136
254GEN WB17X0215
256GEN WB08X0295
266BASE-RIGHT & LEFT W/LEGS
267GEN WB56M0003
268WB2X7909 GE Oven Anti-Tip Kit
269SERVICE RANGE MTG PLATE
275UNKNOWN
281WB14X103 GE Range Oven Left Door Hinge
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
282GEN WB38X0112
286OV DR SPRING
292GEN WB02X9146
293GEN WB02X9148
294WB2X9719 GE Oven Support Bracket Clip
295GEN WB02X9424
296LEG LEVELER
801WB1M1 GE Oven Screw
802GEN WB01X1265
804WB1X681 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
811GEN WB01X1172
813WB1X1261 GE Oven Screw
814WB1X1258 GE Oven Screw
818GEN WB01X1250
826GEN WB01X1167
843WB1X1424D GE Oven Screw Package
854GEN WB01X1328
856SCREW
875WB1K5191 GE Oven Zinc FL Screw
926GROUND WASHER
927WB1X119D GE Oven Range Washer
936BUSHING
950GEN WB01M0003
976BACKGUARD CLIP
976GEN WB01X1251
978WB1X1259 GE Hex Nut
979SPACER
999GEN 31-0916
999GEN 79-4013
999GEN WB18M0032
999GEN WB18M0034
999GEN WB18M0033
999GEN WB18M0038
