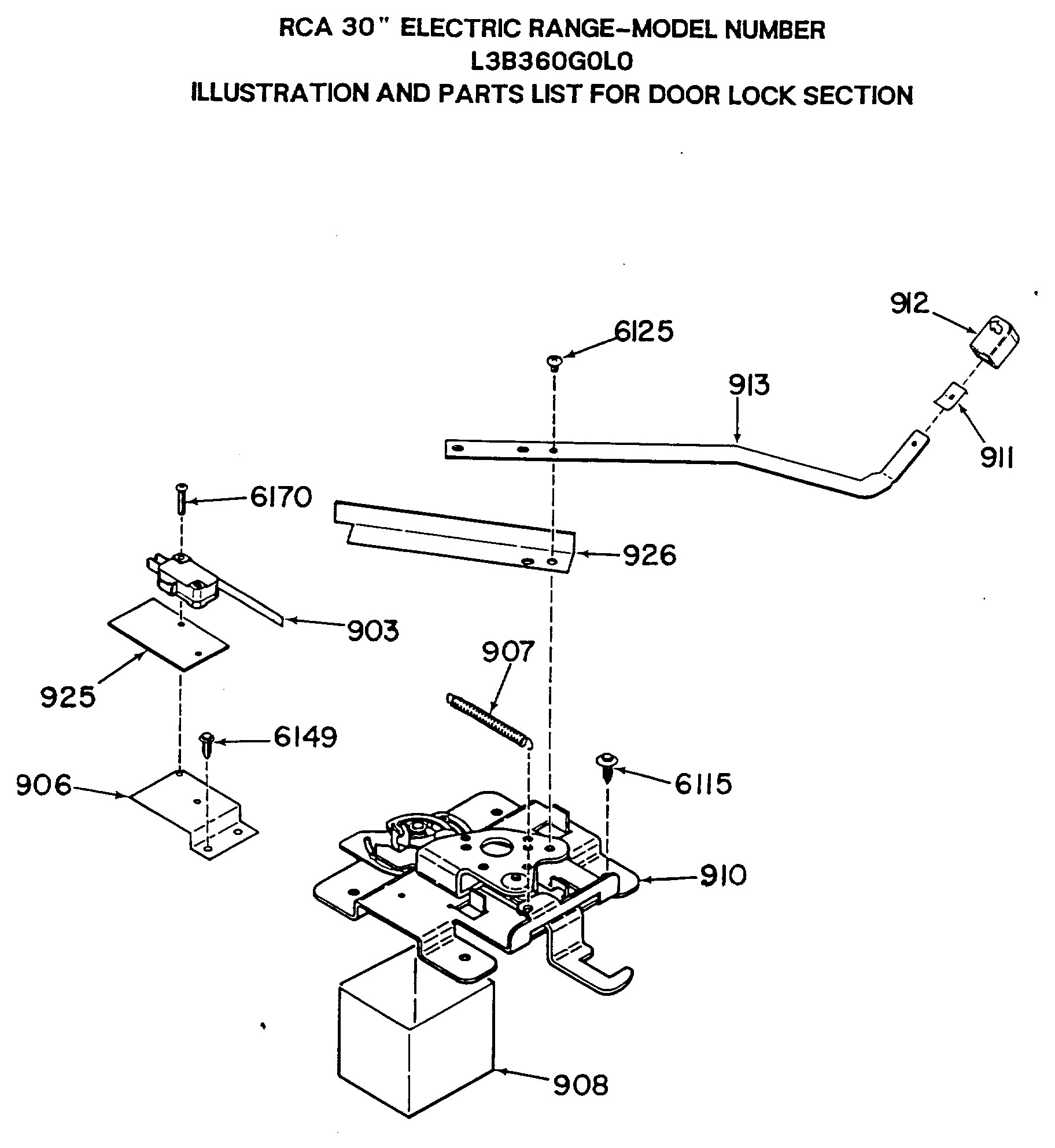

L3B360GL0BG ILLUSTRATION AND PARTS LIST FOR DOOR LOCK SECTION

L3B360GL0BG ILLUSTRATION AND PARTS LIST FOR DOOR LOCK SECTION

Written by

in

L3B360GL0BG ILLUSTRATION AND PARTS LIST FOR DOOR LOCK SECTION

Products

PositionProduct
903GEN WB24X0454
906GEN WB02X9882
907LOCK SPRING
908UNKNOWN
910GEN WB14X0128
911KNOB CLIP
912LOCK KNOB
913GEN WB02X9728
925INSULATOR-MICRO SWITCH
926GEN WB02X9881
6115WB1M1 GE Oven Screw
6125GEN WB01X1125
6149WB1X1149 GE Oven Screw
6170GEN WB01X1170
