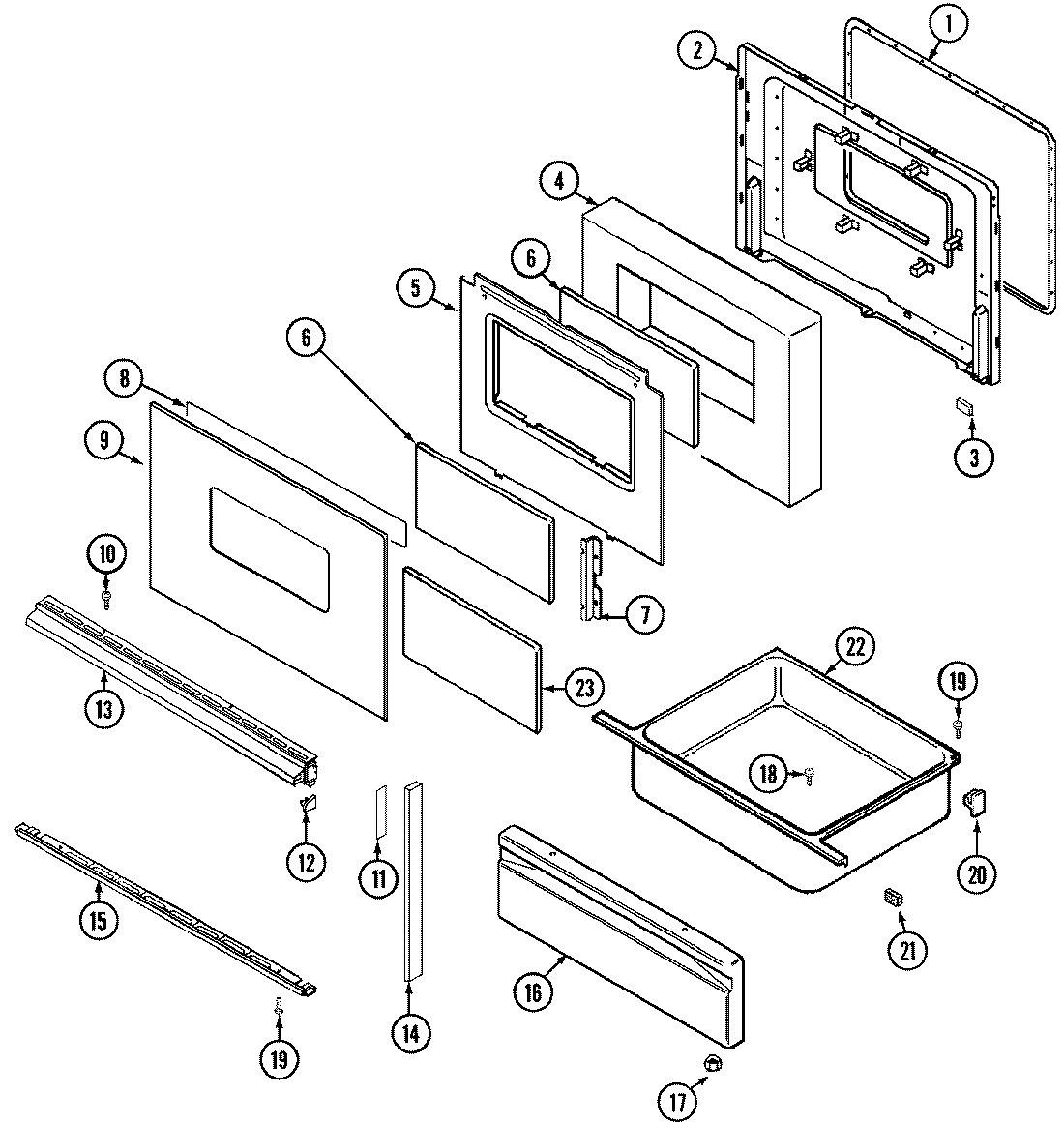

L6892VYV 02 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 74001058
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 7902P328-60
10	WP98008544 Whirlpool Screw Assembly
11	MAY 8270P093-60
12	MAY 7744P076-60
12	MAY 7744P075-60
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 7701P105-60
13	MAY 74001171
14	MAY 74002342
14	MAY 7744P065-60
15	MAY 7744P103-60
16	MAY 2416F038-62
17	WPW10131078 Whirlpool Nut Assembly
19	SCREW
20	WP8004P026-60 Whirlpool Support
21	MAY 7208P011-60
22	MAY 3405F018-80
23	MAY 74002002
