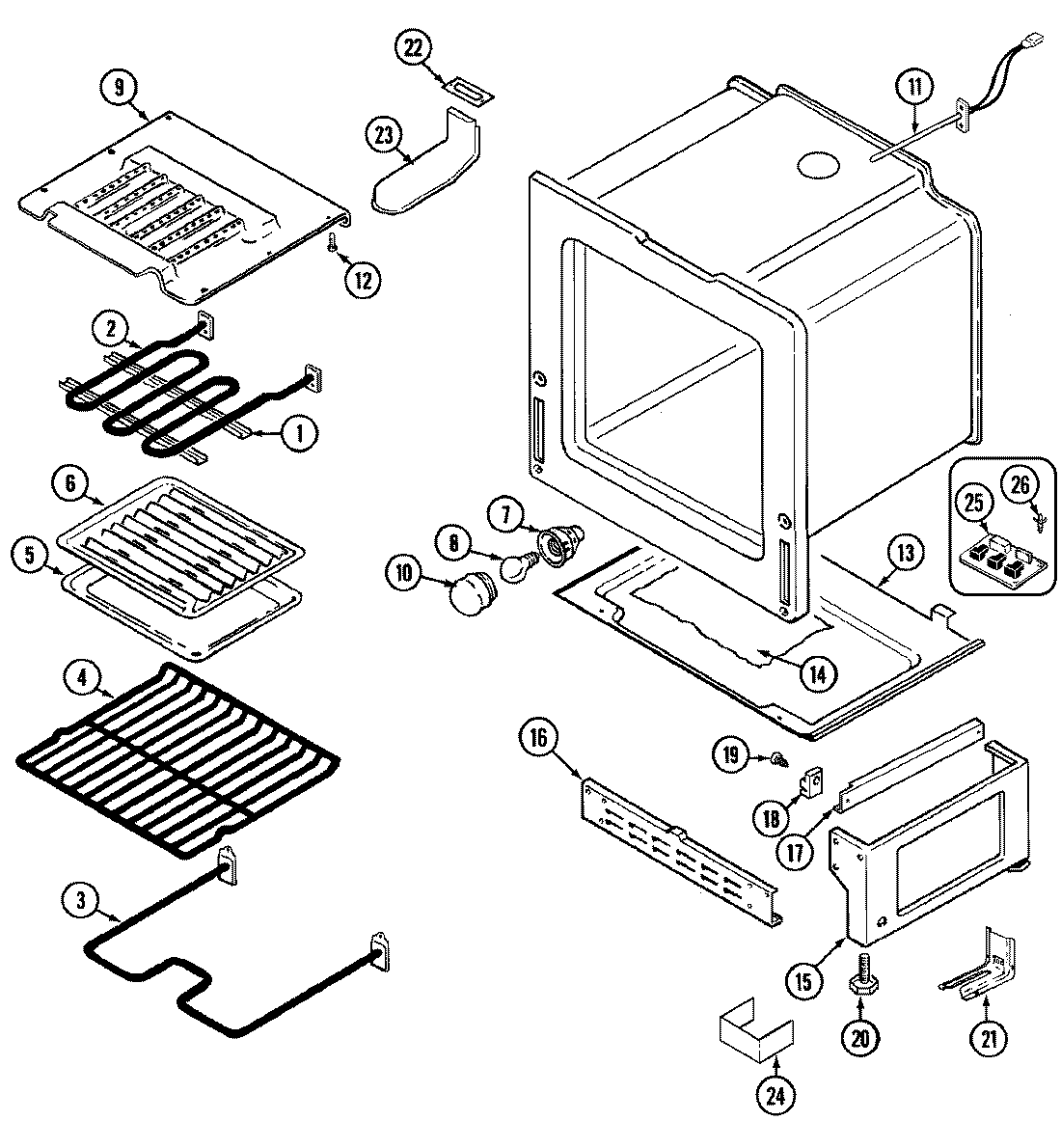

L6892VYV 04 – OVEN/BASE

L6892VYV 04 – OVEN/BASE

Written by

in

L6892VYV 04 – OVEN/BASE

Products

PositionProduct
1WP400021-1 Whirlpool Screw
1MAY 3807F387-45
2WPY04000059 Whirlpool Bake Element
3MAY Y04000058
4WPW10282492 Whirlpool Oven Rack
5MAY Y3401F02019
6MAY Y3413F01619
7MAY 74003125
7WP7407P182-60 Whirlpool Lamp
8RANGE ONLY 40W 120V APPL BULB
9MAY 3601F237-47
10WP9781049 Whirlpool Light Lens
11MAY 74003095
13MAY 3804F112-51
14MAY 8312P058-60
15MAY 74003003
15MAY 74001705
16MAY 4020F001-80
16SCREW
17MAY 3406F028-51
18MAY 74002312
19MAY 74001449
20W11665456 Whirlpool Range Level Foot
20MAY 74001311
21MAY 74002311
21WP7101P485-60 Whirlpool Anchor Tip
22MAY 7201P060-60
23MAY 74001674
23MAY 4006W112-45
24MAY 4005F420-80
25MAY 74001633
25MAY 3807F439-51
26MAY 8004P020-60
26MAY 8004P032-60
