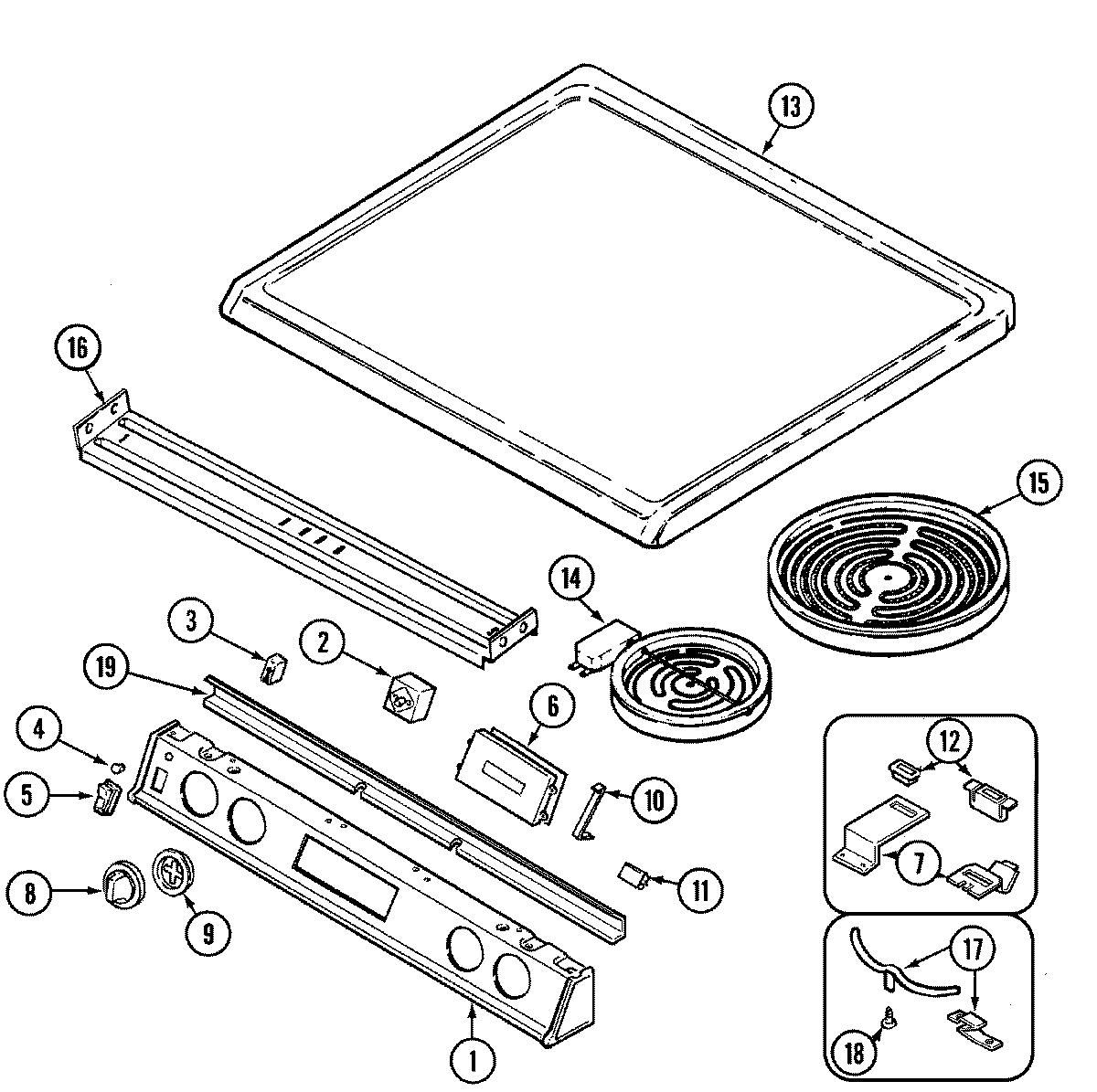

L6898XYB 05 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74002642
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	7403P067-60 Whirlpool Light Switch
6	MAY 74002644
7	MAY 3801F312-45
7	MAY 74002978
8	MAY 7731P082-60
9	MAY 7740P020-60
10	MAY 74003191
11	MAY 7112P087-60
12	MAY 7407P098-60
12	MAY 74003043
13	MAY 74003027
13	MAY 74001771
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
15	W10823707 Whirlpool Range Radiant Surface Element 8"
15	MAY 74002652
16	MAY 3807F390-45
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	SCREW
17	MAY 8004P015-60
17	MAY 74002976
18	WP59002061 Whirlpool Microwave Screw
19	MAY 74002647
20	MAY 74002646
20	MAY 5175D122-60
20	MAY 5170P228-60
20	MAY 74001583
21	MAY 74002466
21	MAY 74002467
22	MAY 16000329
