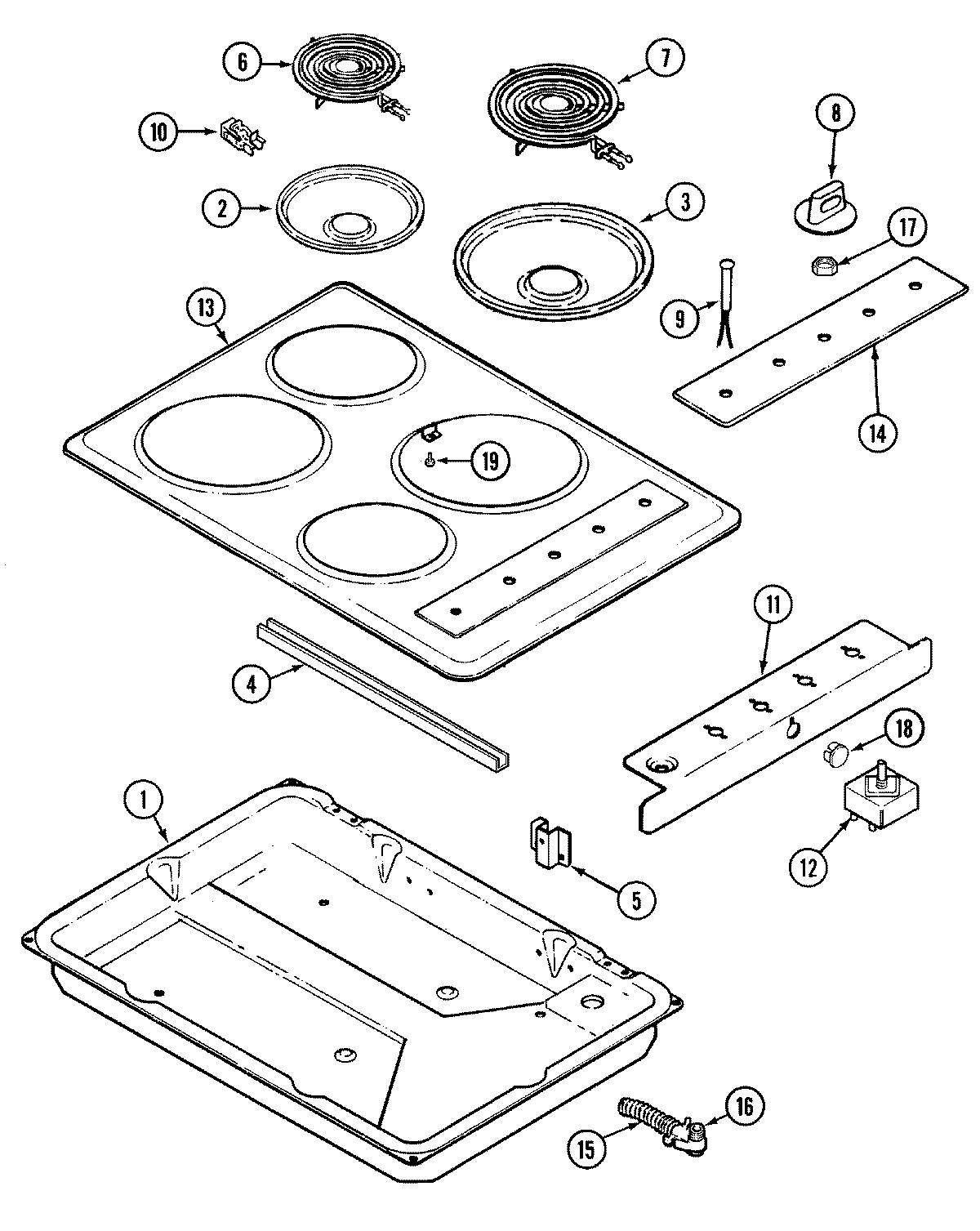

L8610RV 01 – TOP ASSEMBLY

Products

Position	Product
1	BOTTOM, BURNER BOX
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	DRIP BOWL 8" W/HOLE CHROME
4	MAY 8008P017-60
4	MAY 3802F070-80
5	MAY 7101P059-60
5	BRACKET, MAIN TOP SUPPORT
6	MAY Y04000032
7	MAY Y04000031
8	MAY 74002090
9	MAY 74001480
10	MAY 1430306K
11	MAY 3604F133-80
12	W10900107 Whirlpool Oven Surface Element Switch
13	MAY 74001709
14	MAY 74003066
15	MAY 7434P010-60
15	MAY 74003067
16	MAY 7417P005-60
16	MAY 3801F072-45
17	MAY 7103P021-60
18	GROMMET
19	SCREW
20	MAY 74001593
21	MAY 74002580
21	MAY 74002975
