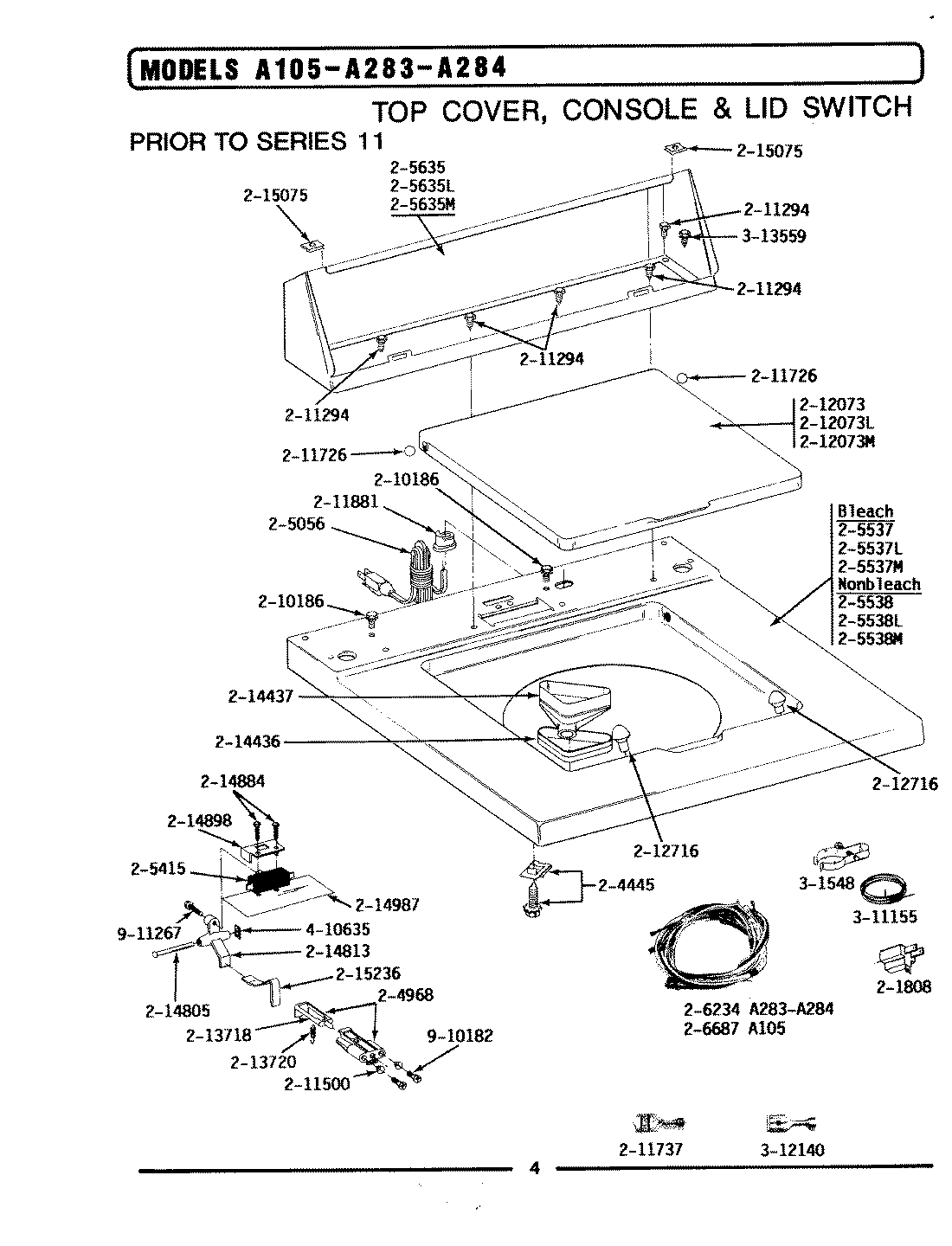

LA105 06 – TOP COVER, CONSOLE & LID SWITCH

Products

Position	Product
1	MAY Y201808
2	MAY 204445
3	PLUNGER & BRACKET ASSEMBLY–W
4	MAY 205056
5	W10820036 Whirlpool Door Switch Kit
7	MAY 205538L
10	MAY 205635L
12	MAY 206687
13	MAY 210186
14	WP90767 Whirlpool Screw
15	MAY 211500
16	WP211726 Whirlpool Ball Assembly
17	MAY 211737
18	GROMMET
20	MAY 212073L
22	WP212716 Whirlpool Lid Bumper
23	MAY 213718
24	WP213720 Whirlpool Spring Assembly
25	MAY 214805
26	MAY 214813
27	MAY 214884
28	MAY 214898
29	MAY 214987
30	MAY 215075
31	MAY 215236
32	MAY 301548
33	WP311155 Whirlpool Wire Assembly
34	MAY Y312140
35	MAY Y313559
36	MAY 410635
37	MAY 910182
38	MAY 911267
