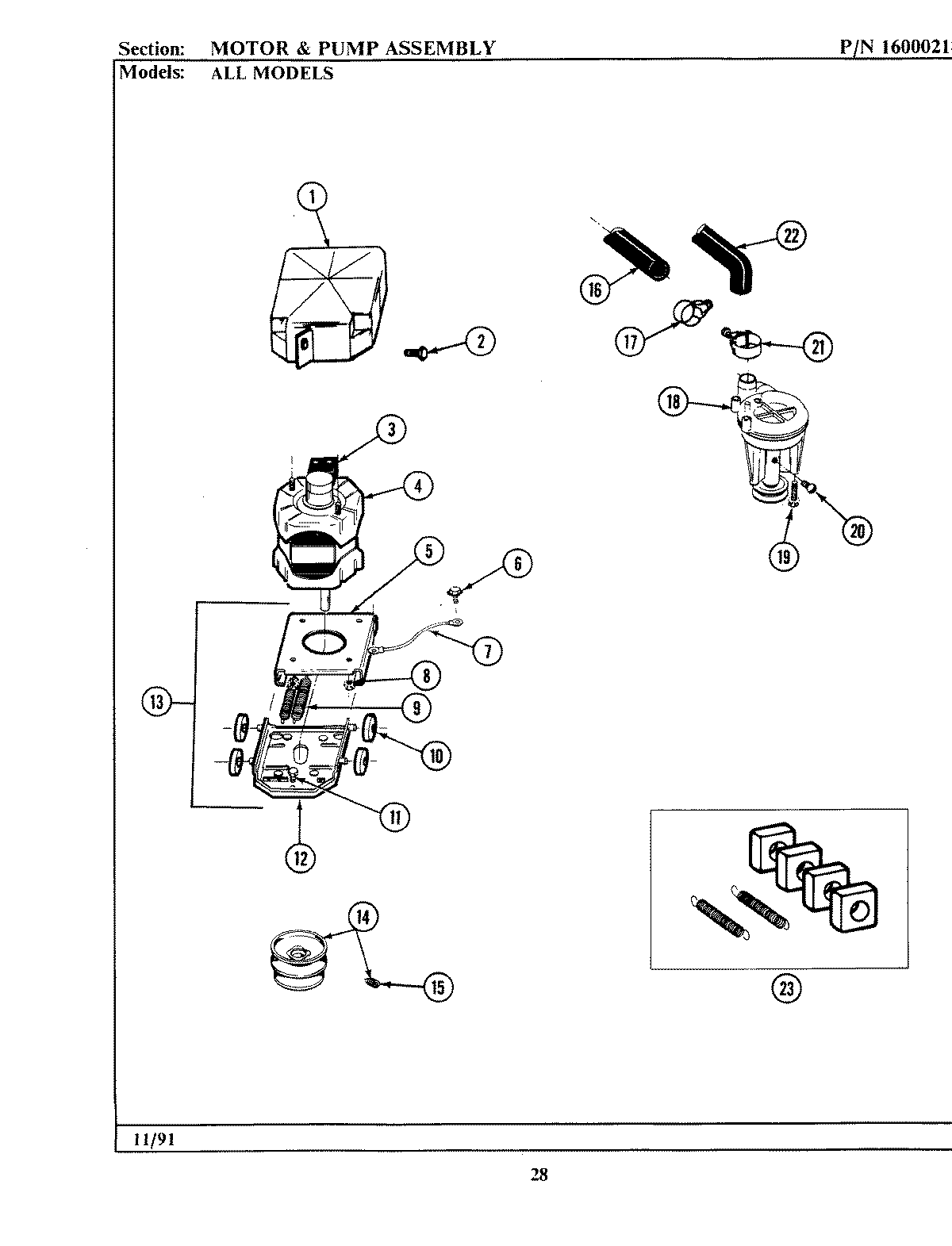

LA211S 05 – MOTOR & PUMP ASSEMBLY

LA211S 05 – MOTOR & PUMP ASSEMBLY

Written by

in

LA211S 05 – MOTOR & PUMP ASSEMBLY

Products

PositionProduct
1MAY 215098
2WPW10346892 Whirlpool Screw
32-1664-11 AND 2-5463-1
3SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
32-1664-8 AND 2-5463
412002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
5MAY 214956
6MAY 210186
7MAY 901220
8WP3400029 Whirlpool Dishwasher Nut
9202718 Whirlpool Tension Spring
10205000 Whirlpool Motor Spring and Guide Kit
11MAY Y313561
12MAY 205908
13MAY 205999
14MAY 200816
15MAY Y053241
16MAY 214767
17MAY 200461
18MAY 202203
19WPY014874 Whirlpool Screw
20MAY Y015408
21WP285655 Whirlpool Hose Clamp
22WPY212989 Whirlpool Outer Hose
