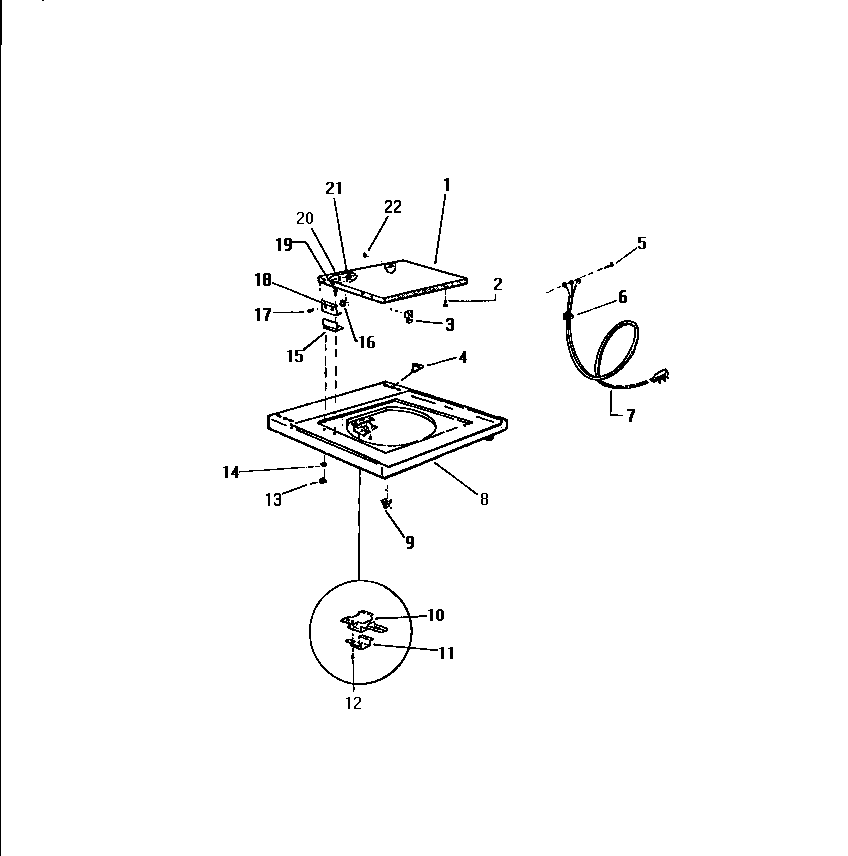

LA271EXW2 03 – TOP PANEL

LA271EXW2 03 – TOP PANEL

Written by

in

LA271EXW2 03 – TOP PANEL

Products

Position	Product
1	WCI Q127625
2	WCI Q13435
3	WCI Q143172
4	WCI Q503065
6	WCI Q63137
7	CORD, SERVICE
8	PNL. TOP – WHTE
9	SPRING CATCH
10	WCI Q165346
11	SHIELD, LID LOCK
12	SCREW (4)
15	WCI Q93739
16	WCI Q409309
18	HINGE (2 REQ.)
19	SCREW (2)
20	SPACER
21	NUT (2)
22	WCI Q501589
