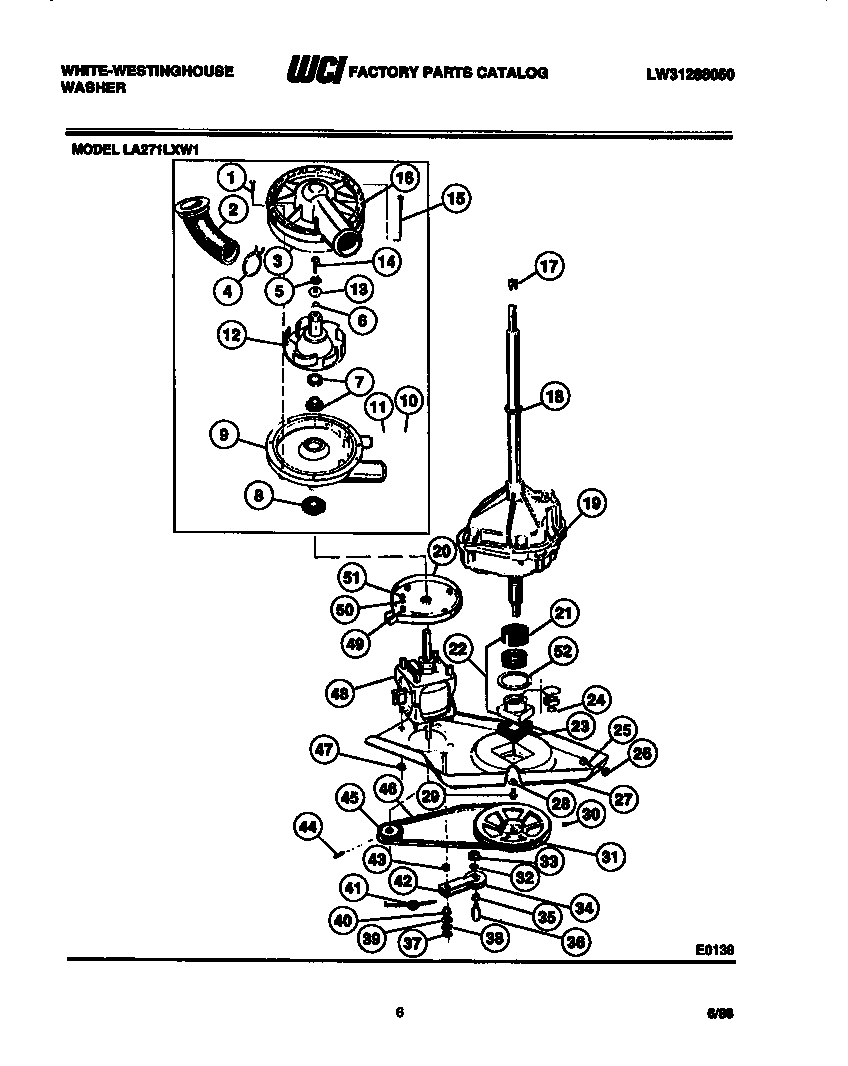

LA271LXW1 05 – MOTOR, TRANSMISSION AND DRIVE PARTS

Products

PositionProduct
*11548WCI Q198163
1SCREW (7)
2WCI Q622261
3GASKET (INCLUDED IN IMPELLER KIT Q198163)
4WCI Q504893
5WCI Q500374
6O-RING (INCLUDED IN IMPELLER KIT Q198163)
7SEAL, KIT (INCLUDED IN IMPELLER KIT Q198163)
8WCI Q69543
9WCI Q612641
10WCI Q16701
11WCI Q504891
12IMPELLER (INCLUDED IN IMPELLER KIT Q198163)
13WCI Q69561
14WCI Q504204
15SCREW, TO MOTOR
16WCI Q612631
17SHIM
18WCI Q440115
19134735700 Frigidaire Transmission Assembly
20WCI Q164261
21WCI F130417000
22WCI F137014000
23WCI Q622331
24WCI F141261000
25BOLT (3)
26WCI Q500831
27WCI Q623011
28WASHER NEOPRENE
29BOLT
30WCI Q500871
31WCI Q631112
33WCI Q501084
34WCI Q622341
36WCI Q622462
37WCI 1467173
38WCI Q409004
39WCI 1147601
41WCI Q623001
42WCI Q622474
43WCI Q607121
44PIN
45WCI Q622991
46WCI Q622451
47NUT
48WCI Q603184
49WCI Q502788
50SPACER (1)
51WCI Q502404
52WCI F141714000
