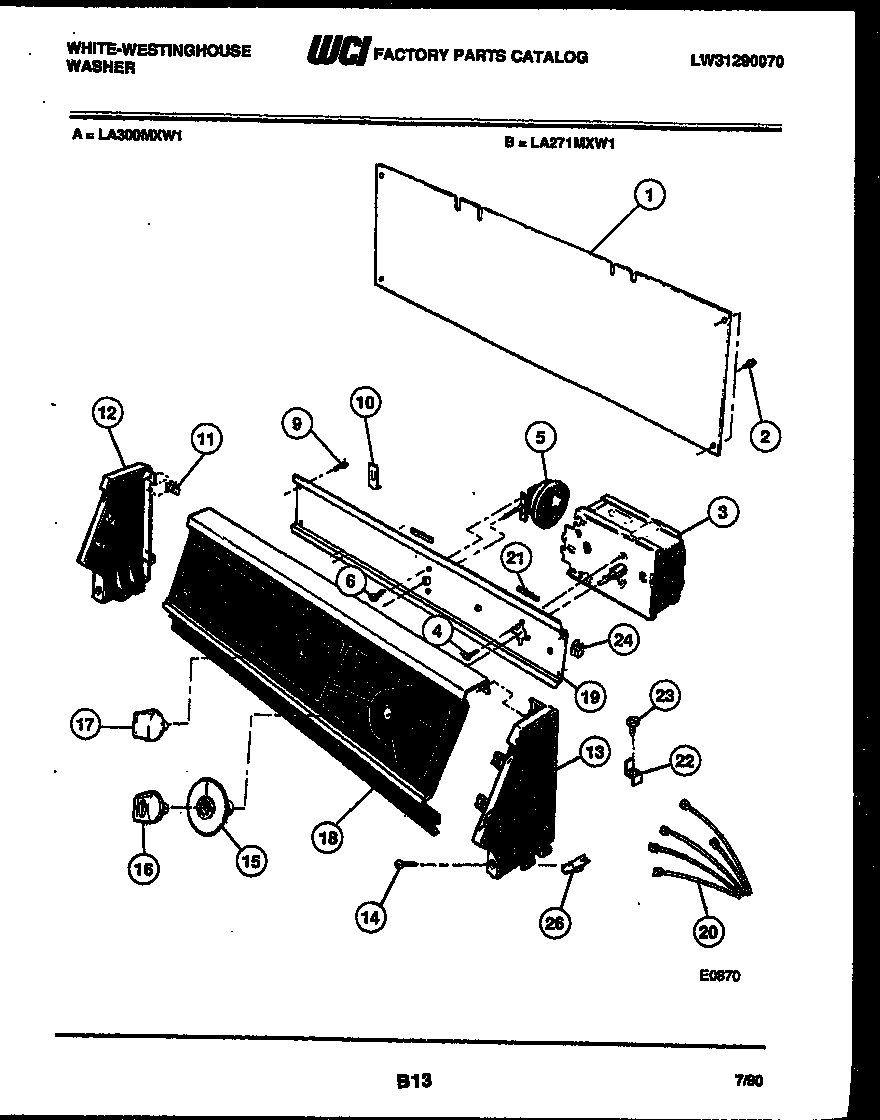

LA271MXD1 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*33428	Spacer,washer ,timer shaft
1	COVER-BACK
3	WCI 5303210323
4	SCREW (2)
5	WCI 5303210324
6	WCI 08010804
9	5303015671 Frigidaire Bracket Termination Screw
10	WCI 3281200
11	CLIP (8)
12	CABINET, ALMOND
13	WCI 3205978
14	SCREW (2)
15	3205241 Frigidaire Idler Spring
16	WCI 5303210326
18	WCI 5303211386
19	WCI 5303210137
20	WCI 5303210373
21	PAD (2)
22	WCI 5379171000
23	131243800 Frigidaire Screw
24	WCI F142313-000
26	CLIP
