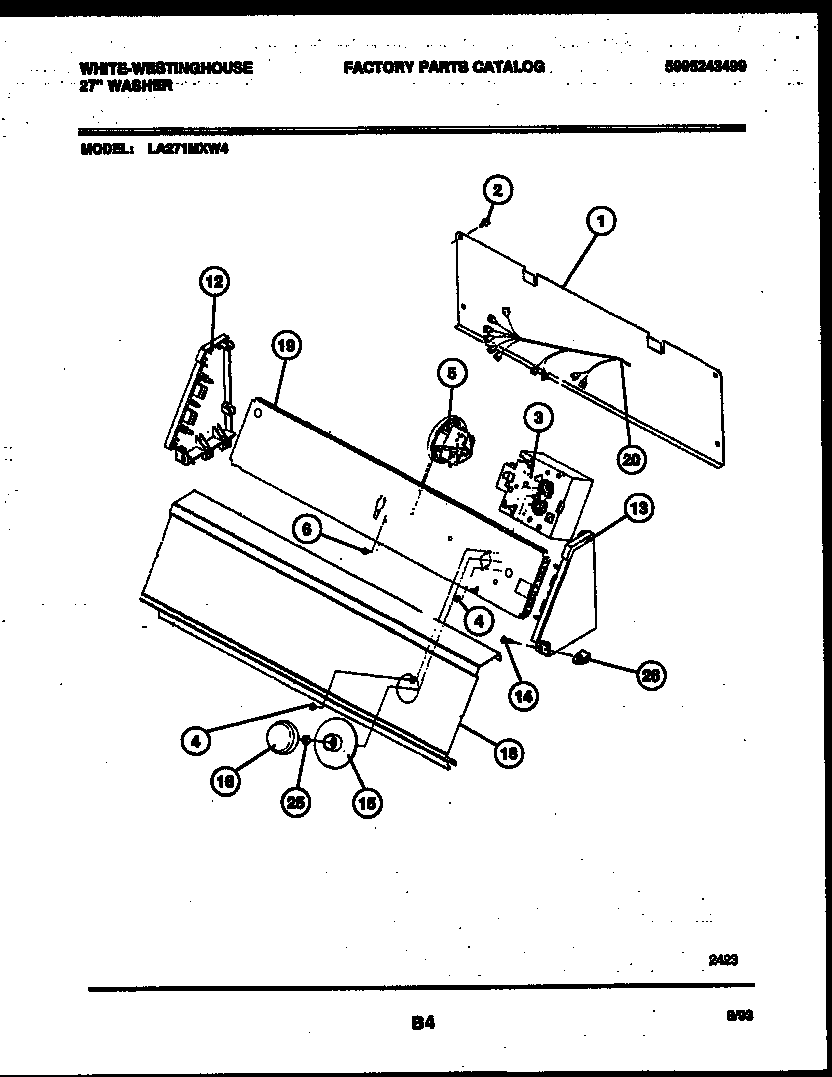

LA271MXW4 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*80342	SCREW
*80342	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 5303271758
4	SCREW (2)
5	WCI 131077100
6	5303015671 Frigidaire Bracket Termination Screw
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	WCI 131118501
16	KNOB – TIMER
18	WCI 131126100
19	BRACKET CONTROLS
20	WCI 131166000
25	Spacer,washer ,timer shaft
26	CLIP
