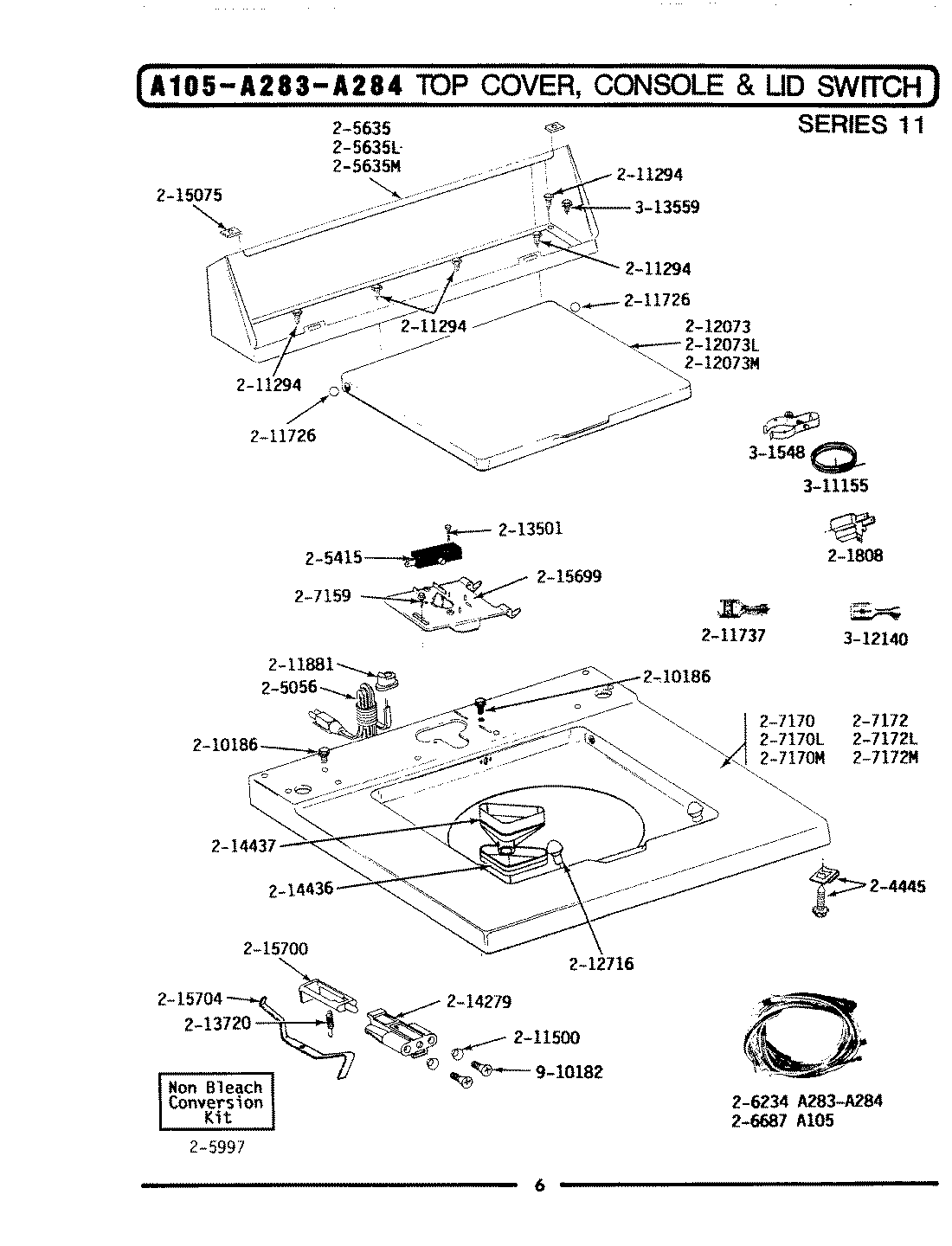

LA283 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Products

PositionProduct
1MAY Y201808
2MAY 204445
3MAY 205056
4W10820036 Whirlpool Door Switch Kit
6MAY 205635L
8MAY 205997
9MAY 206234
10SCREW
12MAY 207172L
14MAY 210186
15WP90767 Whirlpool Screw
16MAY 211500
17WP211726 Whirlpool Ball Assembly
18MAY 211737
19GROMMET
21MAY 212073L
24WP212716 Whirlpool Lid Bumper
25MAY 213501
26WP213720 Whirlpool Spring Assembly
27MAY 214279
28MAY 215075
29MAY Y215699
30MAY 215700
31MAY 215704
32MAY 301548
33WP311155 Whirlpool Wire Assembly
34MAY Y312140
35MAY Y313559
36MAY 910182
