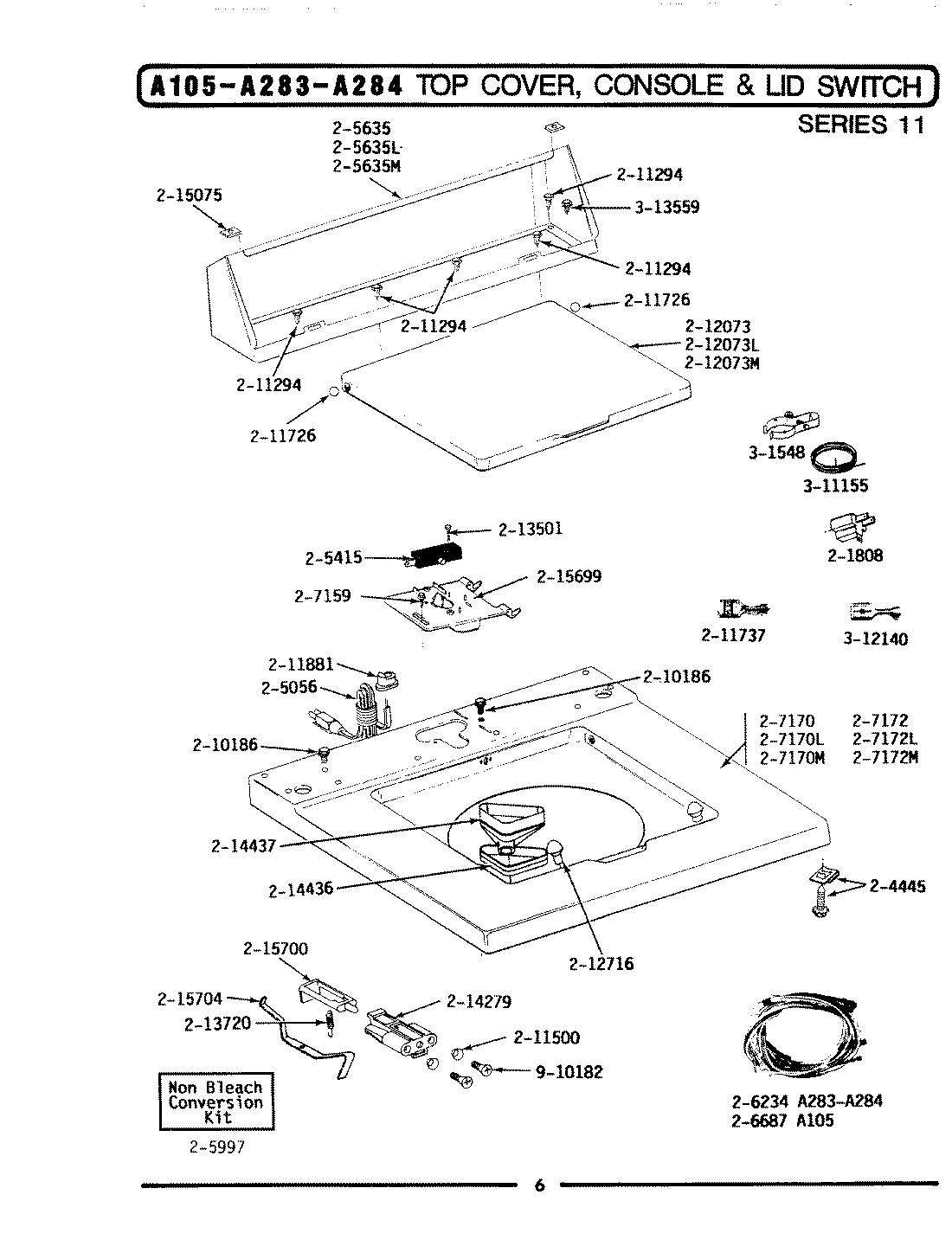

LA284 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Products

Position	Product
1	MAY Y201808
2	MAY 204445
3	MAY 205056
4	W10820036 Whirlpool Door Switch Kit
6	MAY 205635L
8	MAY 205997
9	MAY 206234
10	SCREW
12	MAY 207170L
14	MAY 210186
15	WP90767 Whirlpool Screw
16	MAY 211500
17	WP211726 Whirlpool Ball Assembly
18	MAY 211737
19	GROMMET
21	MAY 212073L
23	WP212716 Whirlpool Lid Bumper
24	MAY 213501
25	WP213720 Whirlpool Spring Assembly
26	MAY 214279
27	MAY 214436
29	MAY 215075
30	MAY Y215699
31	MAY 215700
32	MAY 215704
33	MAY 301548
34	WP311155 Whirlpool Wire Assembly
35	MAY Y312140
36	MAY Y313559
37	MAY 910182
