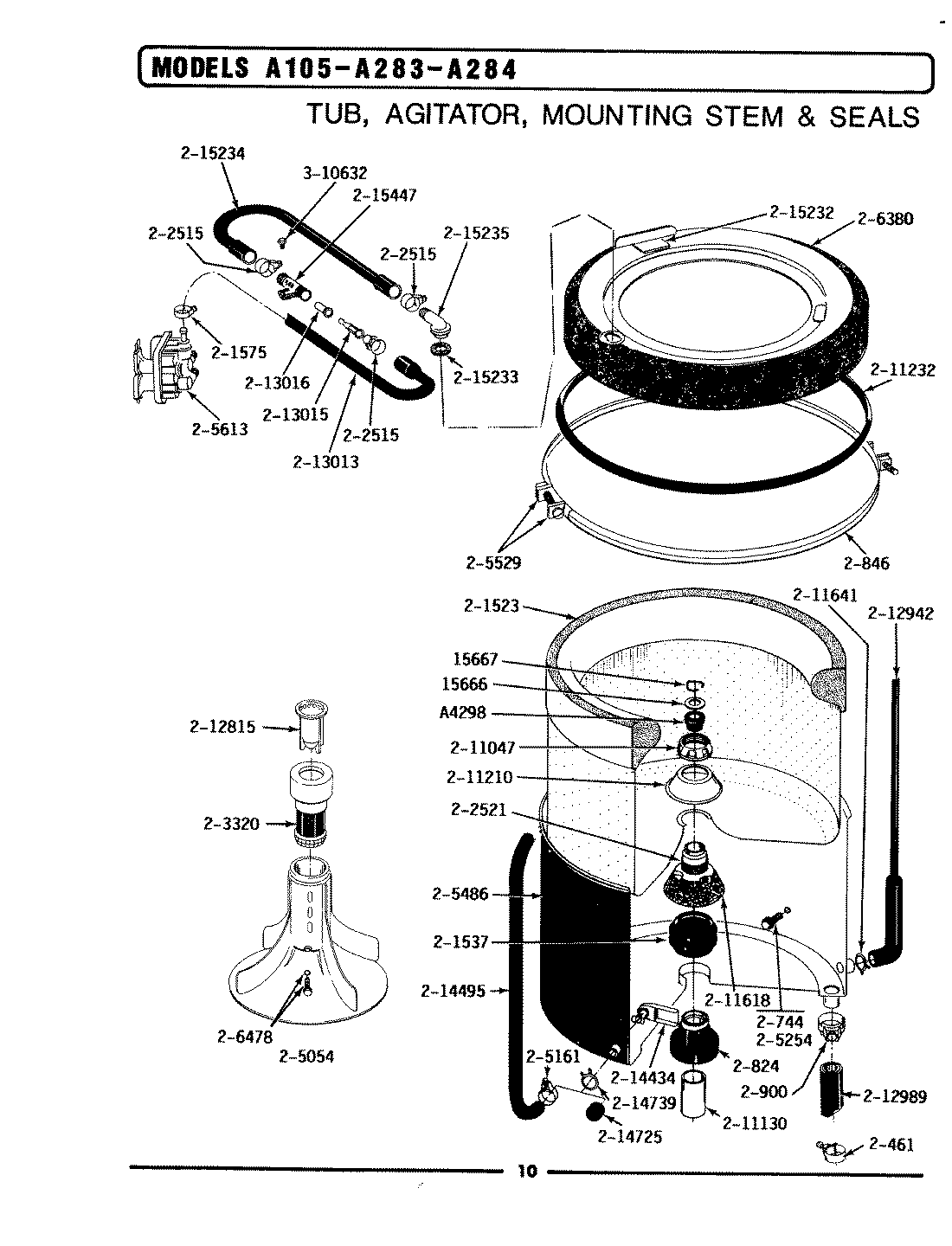

LA284 09 – TUB, AGITATOR, MOUNTING STEM & SEAL

Products

Position	Product
1	WP6-0A57420 Whirlpool Agitator Seal
2	WPY015666 Whirlpool Washer Retainer
3	MAY Y015667
4	MAY Y054867
5	MAY 200461
6	W10175939 Whirlpool Bolt Assembly
7	6-2040130 Whirlpool Washer Tub Bearing Kit
9	MAY 200900
10	MAY 201523
11	MAY 201537
12	WP596669 Whirlpool Hose Clamp
14	MAY 202521
15	MAY 203320
16	MAY 204012
18	MAY 205054
19	WP489503 Whirlpool Refrigerator Clamp
20	W10175938 Whirlpool Bolt
21	MAY 205486
23	205613 Whirlpool Washer Water Inlet Valve
24	MAY 206380
26	MAY 206478
27	WP6-2110472 Whirlpool Nut Clamp
28	MAY 211100
29	MAY 211130
30	MAY 211210
31	WP211232 Whirlpool Seal
32	MAY 211618
33	WP285655 Whirlpool Hose Clamp
34	MAY 212815
35	MAY 212942
36	WPY212989 Whirlpool Outer Hose
37	WP213013 Whirlpool Injector Hose
38	WP213015 Whirlpool Nozzle Injector Tube
39	WP216201 Whirlpool Rubber Injector Valve
40	MAY 214434
42	MAY 214725
44	MAY 215232
45	WP215233 Whirlpool Seal
46	WPY215234 Whirlpool Hose
47	MAY 215235
48	WP215447 Whirlpool Sleeve
49	MAY Y310632
