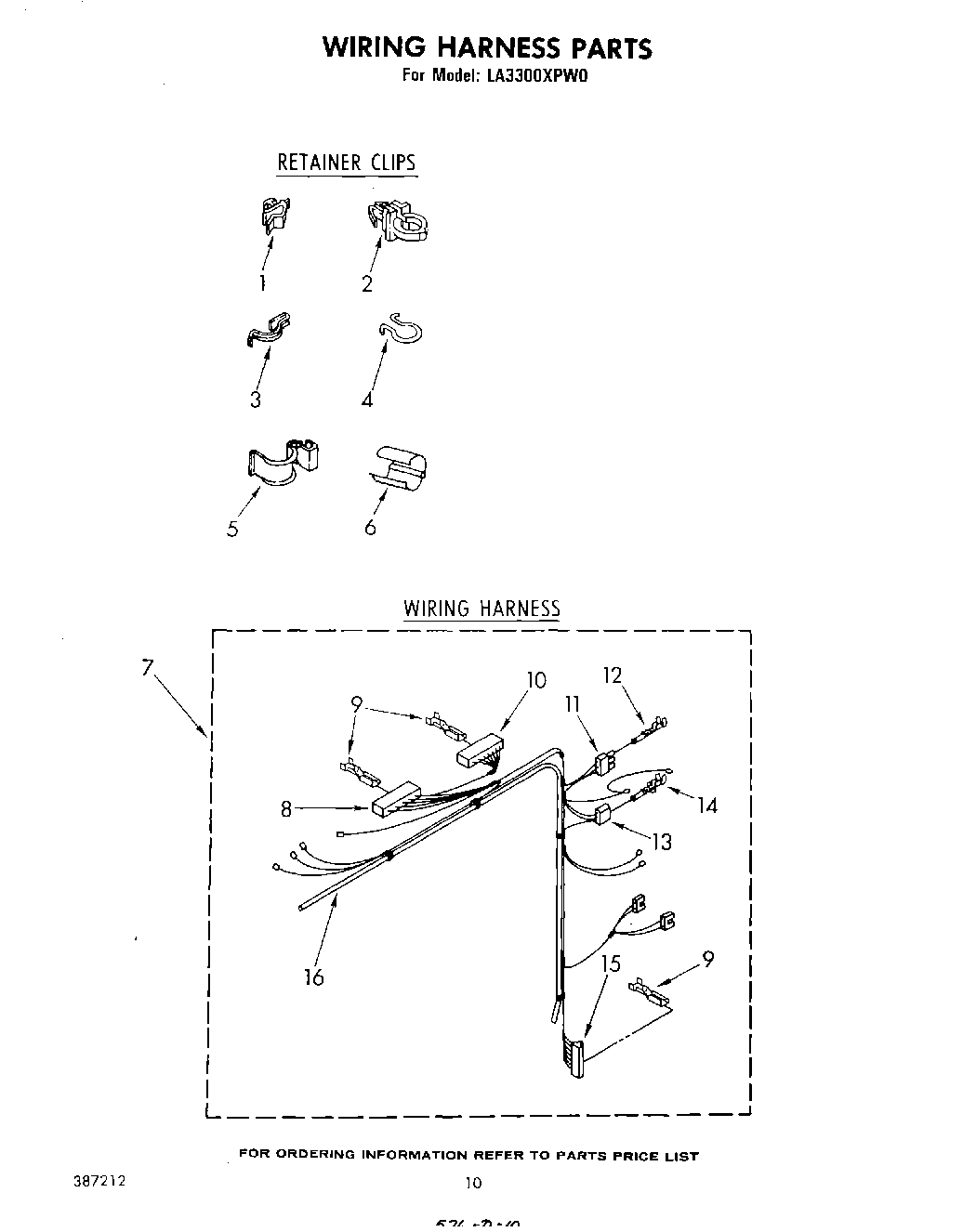

LA3300XPW0 08 – WIRING HARNESS

LA3300XPW0 08 – WIRING HARNESS

Written by

in

LA3300XPW0 08 – WIRING HARNESS

Products

PositionProduct
1Clip, Harness
2Clip, Harness
38528351 Whirlpool Clip
4Clip, Harness (2)
5WP90016 Whirlpool Clip
6Protector, Harness
7Wiring Harness & Pressure Switch Hose
8Timer, Block Disconnect (White)
9Terminal, Female
10W10876590 Whirlpool Connector
11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12WP94614 Whirlpool Terminal
13353424 Whirlpool Connector
14WP596797 Whirlpool Terminal
15WP62505 Whirlpool Connector
16WP353244 Whirlpool Hose
