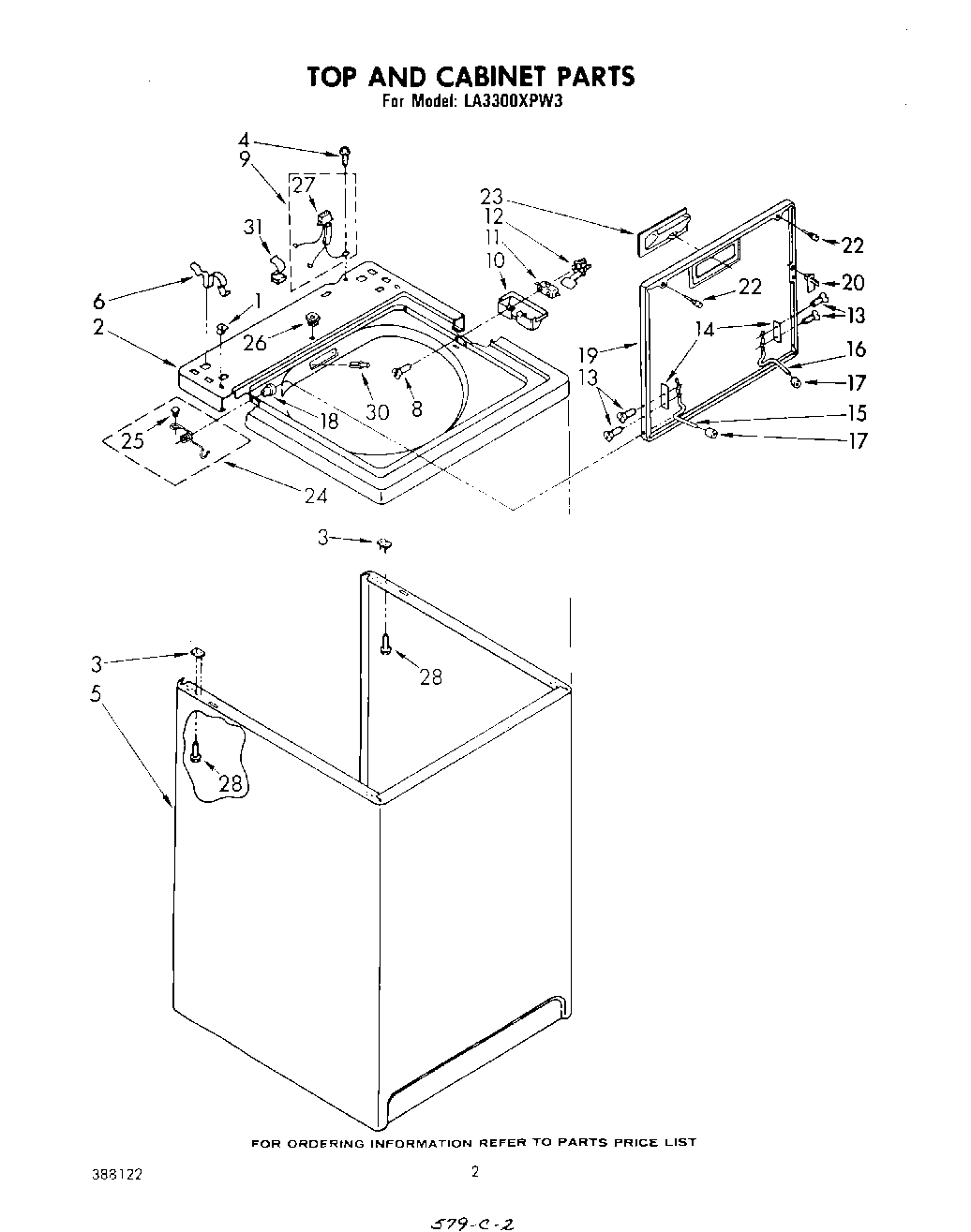

LA3300XPW3 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

Position	Product
	Label, Energy Guide
	WP285195 Whirlpool Sealer Assembly
	WPL LIT387931
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	WPL LIT385238
	List, Repair Parts
	WPL LIT677967
	Guide, Use and Care
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Leveler (Thinner)
	Dryer
	350938 Whirlpool Spray Gun
	350572 Whirlpool Oil Transmission 15 Oz
	350930 Whirlpool White Spray Paint
1	Nut, Push-In (2)
2	Top (White)
3	WP62750 Whirlpool Spacer
5	Cabinet (White)
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
9	Harness, Lid Switch
10	WP359231 Whirlpool Shield
11	W10820036 Whirlpool Door Switch Kit
12	Actuator, Lid Switch
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
23	Handle, Lid (White)
24	Spring & Button, Lid ((R.H.))
24	Spring & Button, Lid ((L.H.))
25	Plug, Button
26	Stop, Push-In Top
27	Plug, Terminal (3-Way)
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
