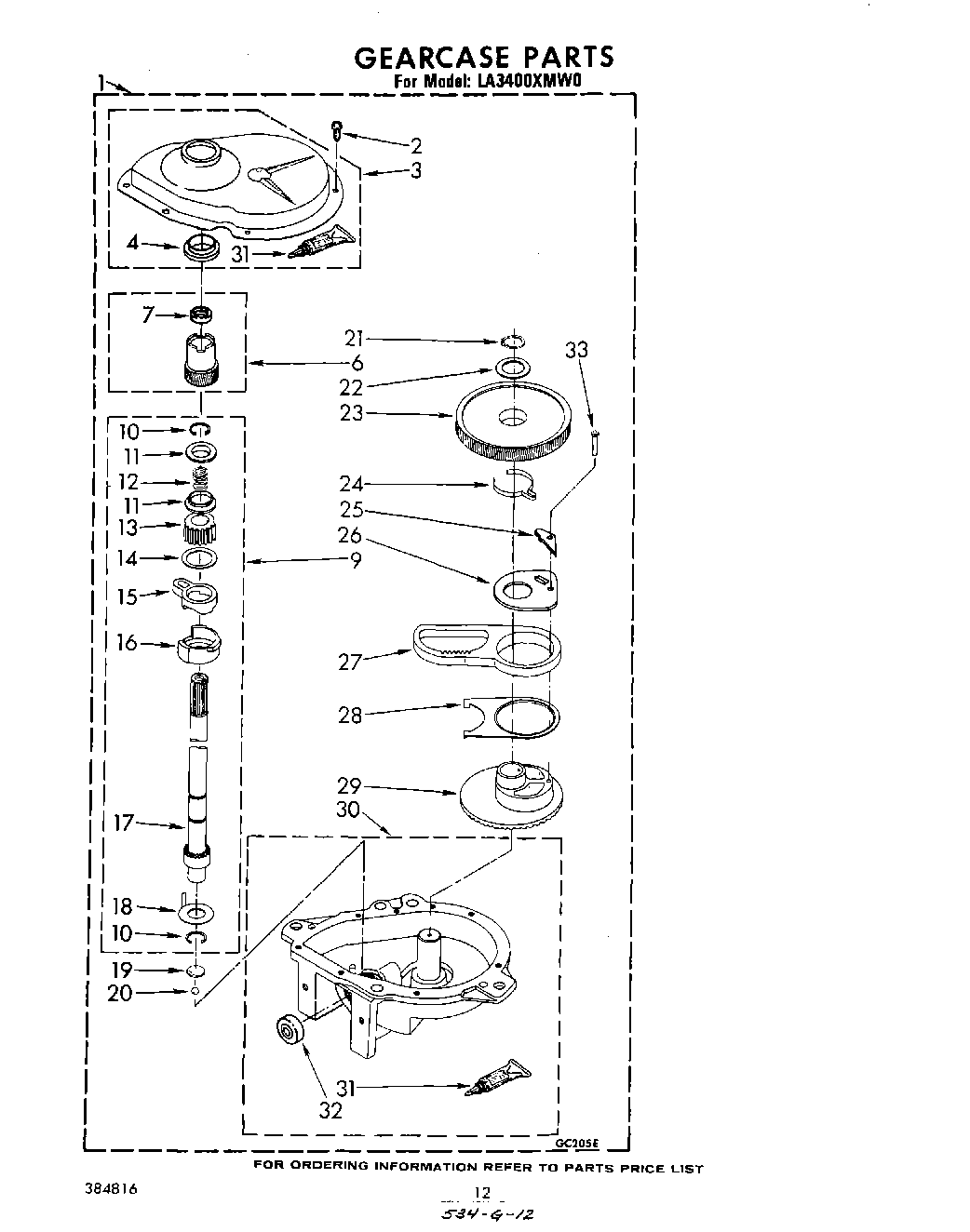

LA3400XMW0 10 – GEARCASE PARTS

Products

Position	Product
1	Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
2	WP3351614 Whirlpool Screw
3	285202 Whirlpool Cover Assembly
4	WP3349985 Whirlpool Shaft Seal
7	WP356427 Whirlpool Shaft Seal
10	Ring, Retaining (2)
11	62677 Whirlpool Retainer
12	Spring, Agitator
13	WP389387 Whirlpool Agitator Shaft
14	62619 Whirlpool Washer
18	Washer, Cam Thrust
19	285205 Whirlpool Bearing
21	Ring, Retaining
22	Washer Kit, Thrust
26	285715 Whirlpool Drain Kit
27	3360629 Whirlpool Washer Gearcase Transmission
29	Gear, Main Drive
30	Pinion Assembly, Gearcase
31	WP285195 Whirlpool Sealer Assembly
32	285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
33	350572 Whirlpool Oil Transmission 15 Oz
33	WP62638 Whirlpool Screw
