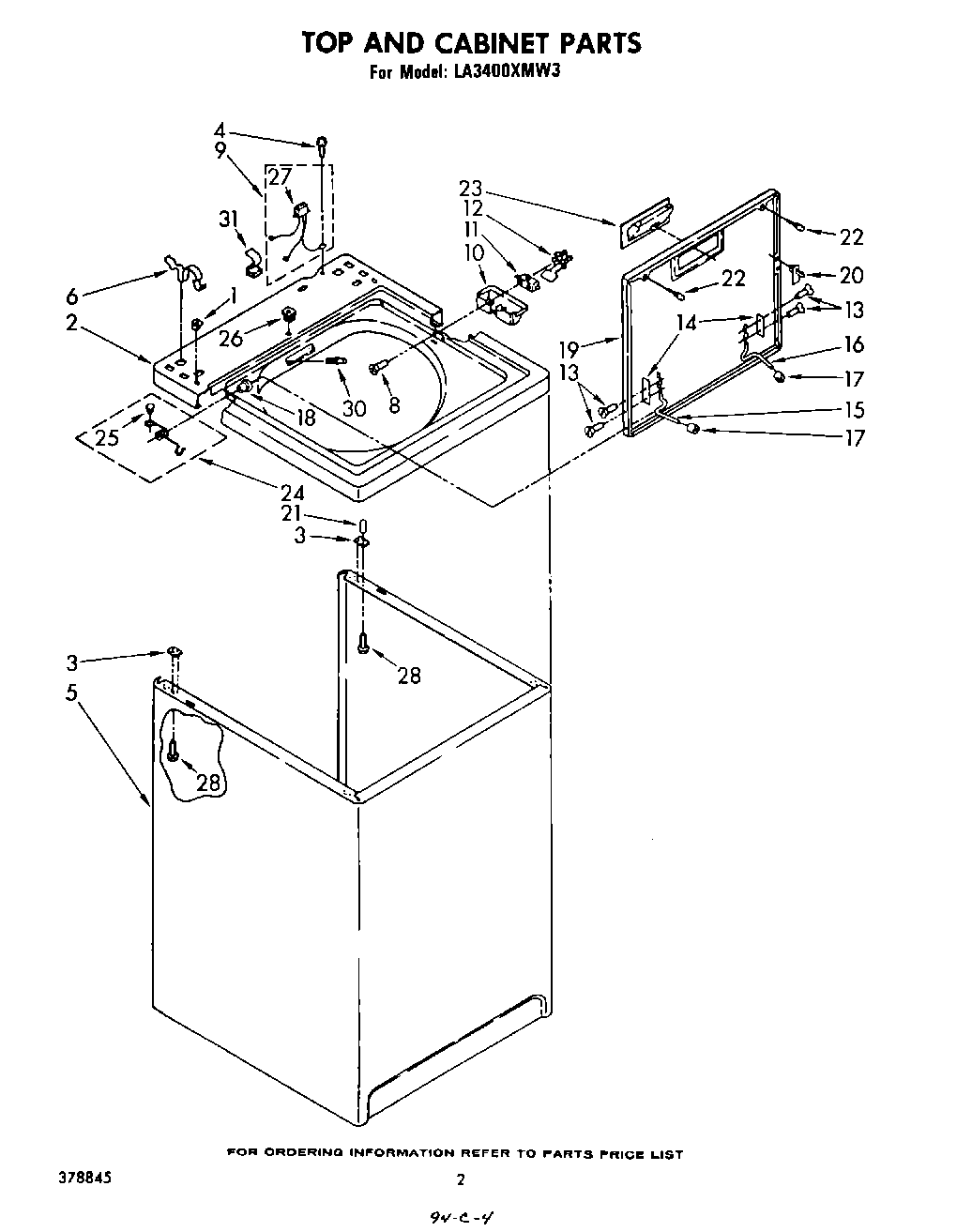

LA3400XMW3 02 – TOP AND CABINET , LITERATURE AND OPTIONAL

Products

Position	Product
1	Nut, Push-In (2)
2	Top (White)
3	WP62750 Whirlpool Spacer
5	Cabinet (White)
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
9	Harness, Lid Switch
10	WP359231 Whirlpool Shield
11	W10820036 Whirlpool Door Switch Kit
12	Actuator, Lid Switch
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
20	WP358684 Whirlpool Strike Assembly
21	W10491983 Whirlpool Tine Tip
22	WP9724509 Whirlpool Bumper
23	Handle, Lid (White)
24	Spring & Button, Lid ((R.H.))
24	Spring & Button, Lid ((L.H.))
25	Plug, Button
26	Stop, Push-In Top
27	Plug, Terminal (3-Way)
28	SCREW
30	Rivet, Serial Nameplate
31	Guide, Use and Care
31	WPL 383978
31	Label, Energy Guide
31	List, Repair Parts
31	Guide, Laundry
31	WPL 799351
31	72017 Whirlpool Appliance Touch-Up Paint White
31	799344 Whirlpool Refrigerator Paint
31	Leveler (Thinner)
31	350572 Whirlpool Oil Transmission 15 Oz
31	350930 Whirlpool White Spray Paint
31	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
31	WP285195 Whirlpool Sealer Assembly
31	WP90016 Whirlpool Clip
31	350938 Whirlpool Spray Gun
