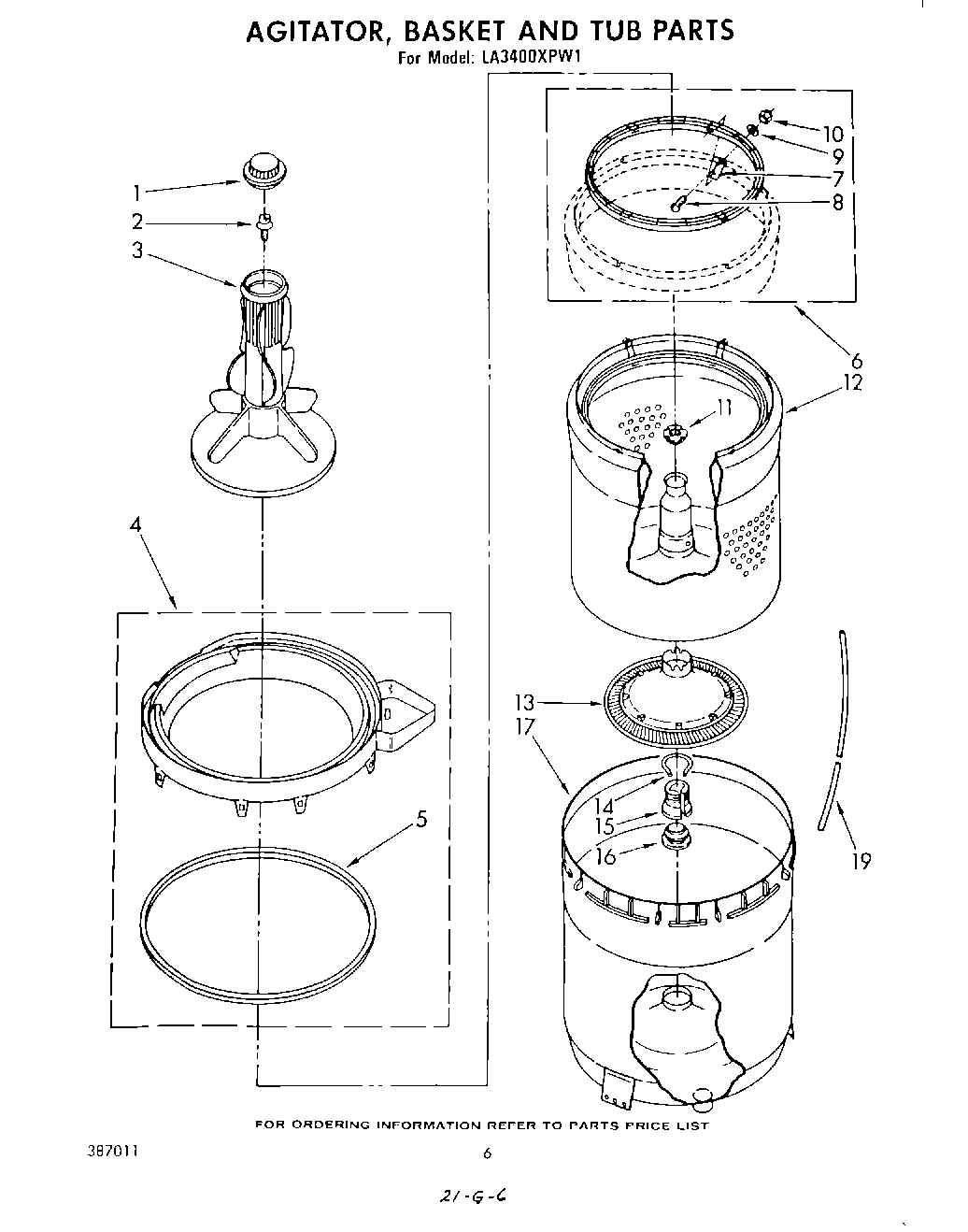

LA3400XPW1 04 – AGITATOR, BASKET AND TUB

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WP358237 Whirlpool Agitator Bolt
3	WP63235 Whirlpool Agitator Assembly
4	Tub Ring & Gasket
5	WP3359586 Whirlpool Tub Seal
6	Clothes Guard Repair Kit
7	Clip, Clothes Guard (6)
8	WP486754 Whirlpool Compactor Screw
9	Washer, Nylon (6)
10	Locknut (6)
11	WP21366 Whirlpool Spanner Nut
12	Basket & Clothes Guard (Includes Illus. 7)
13	Plate, Restrictor
14	Lock, Filter
15	WP389140 Whirlpool Drive Block or Bell
16	W10814296 Whirlpool Washer Center Post Seal Gasket
17	Tub
19	WP353244 Whirlpool Hose
