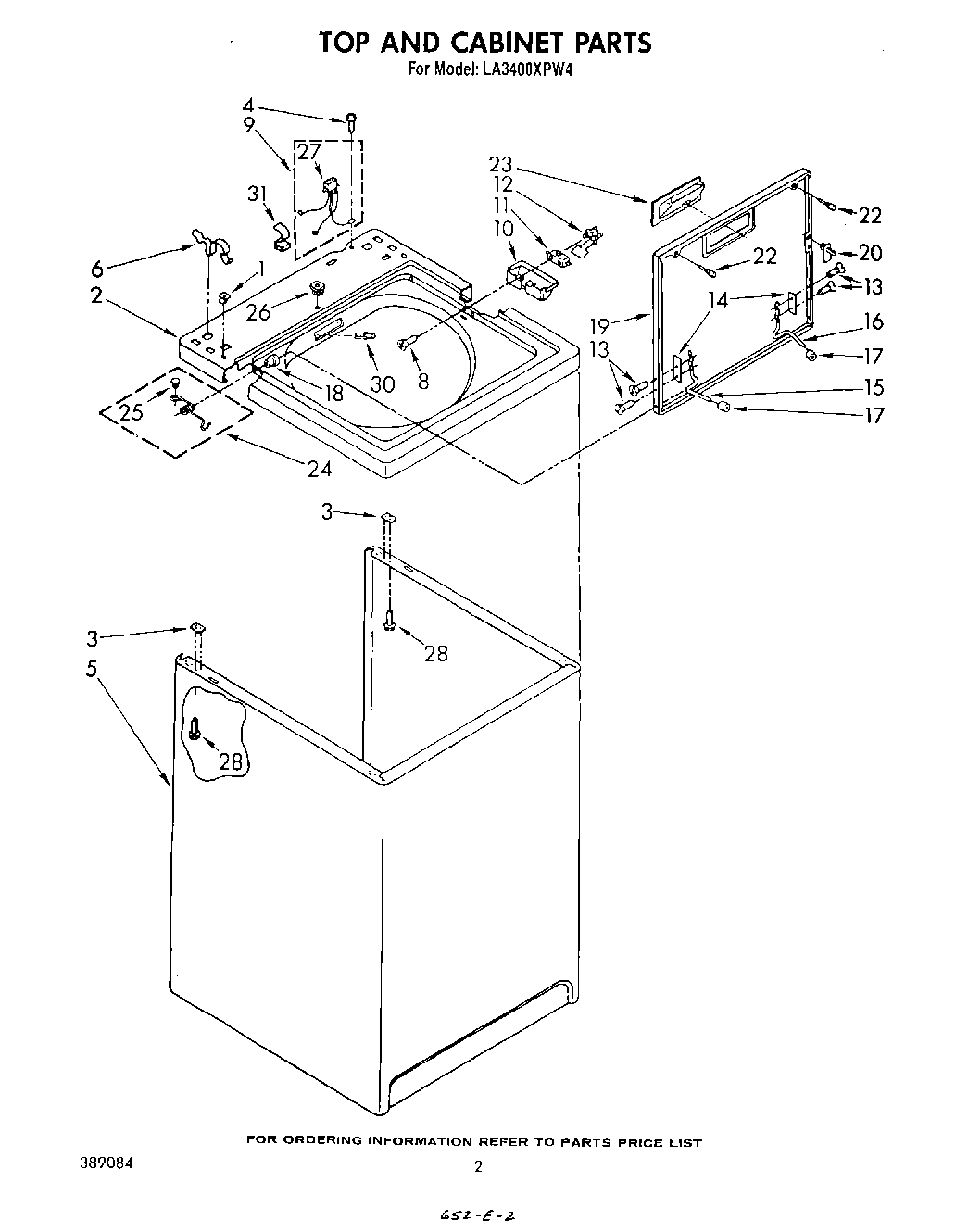

LA3400XPW4 02 – TOP AND CABINET, LITERATURE AND OPTIONAL

LA3400XPW4 02 – TOP AND CABINET, LITERATURE AND OPTIONAL

Written by

in

LA3400XPW4 02 – TOP AND CABINET, LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
List, Repair Parts
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
Label, Energy Guide
WPL LIT385238
Guide, Use and Care
350572 Whirlpool Oil Transmission 15 Oz
WPL LIT3347009
Leveler (Thinner)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
WP285195 Whirlpool Sealer Assembly
1Nut, Push-In (2)
2Top (White)
3WP62750 Whirlpool Spacer
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (White)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
23Handle, Lid (White)
24Spring & Button, Lid ((R.H.))
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
