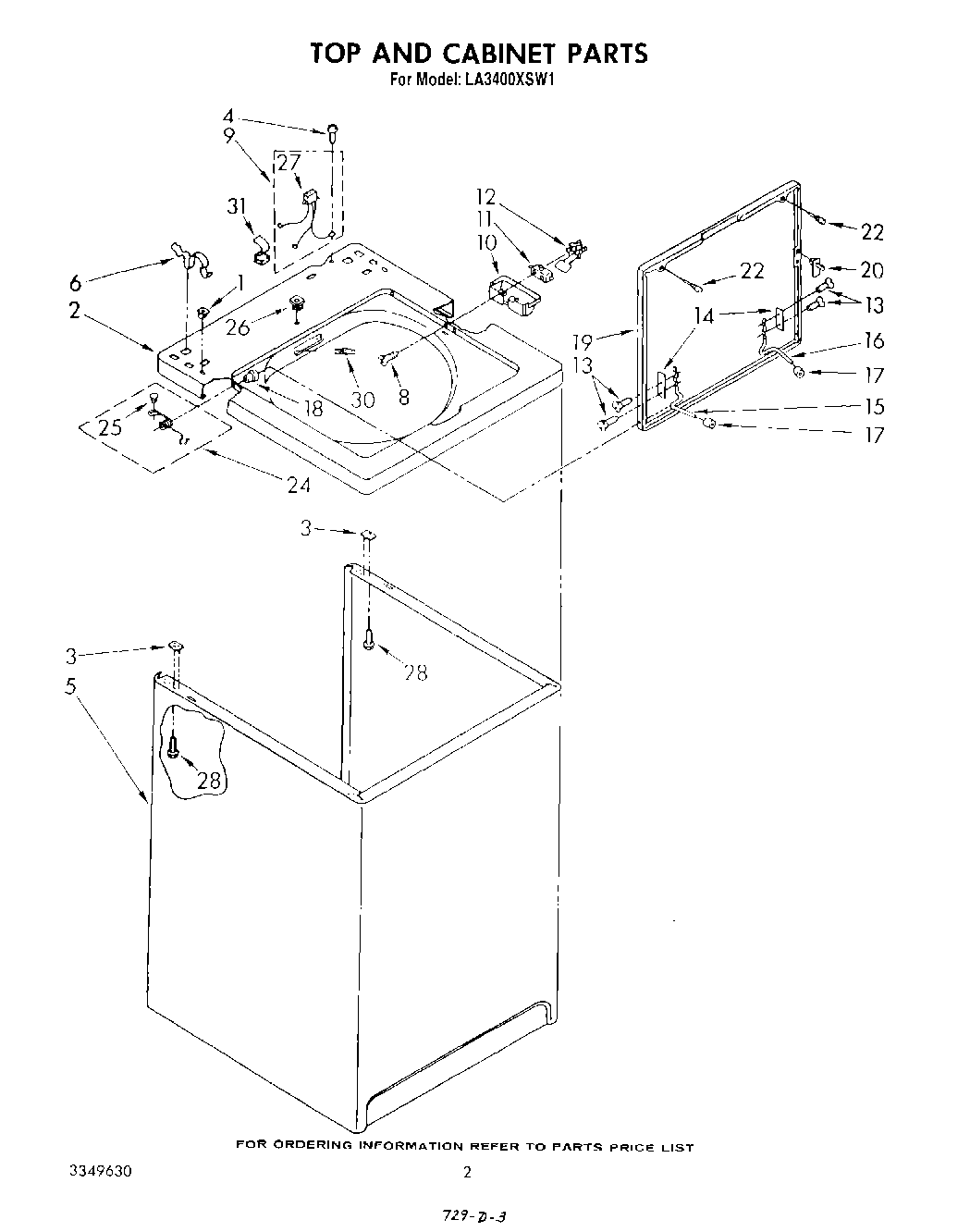

LA3400XSW1 02 – TOP AND CABINET , LITERATURE AND OPTIONALadmin2025-04-26T12:41:40+00:00LA3400XSW1 02 – TOP AND CABINET , LITERATURE AND OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Golden Harvest (Uncut) |
| Toast |
| Paint, Spray (13 Oz.) (Platinum) |
| Enamal, Toast (1 Qt. Uncut) |
| Platinum (Uncut) |
| WPL 72112 |
| WP285195 Whirlpool Sealer Assembly |
| WPL LIT3349106 |
| WPL LIT385238 |
| LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN) |
| WPL LIT3347015 |
| Golden Harvest |
| WPL LIT3349630 |
| 350938 Whirlpool Spray Gun |
| 350956 Whirlpool Spray Assembly |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 799344 Whirlpool Refrigerator Paint |
| WP72107 Whirlpool Touchup |
| Leveler (Thinner) |
| Almond (Uncut) |
| WPL LIT387764 |
| 350572 Whirlpool Oil Transmission 15 Oz |
| 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 72113 Whirlpool Touch-Up Paint |
| 1 | Nut, Push-In (2) |
| 2 | Top (White) |
| 3 | WP62750 Whirlpool Spacer |
| 5 | Cabinet (White) |
| 6 | WP62780 Whirlpool Cabinet Clip |
| 8 | Screw & Washer, Lid Switch (2) |
| 9 | Harness, Lid Switch |
| 10 | WP359231 Whirlpool Shield |
| 11 | W10820036 Whirlpool Door Switch Kit |
| 12 | Actuator, Lid Switch |
| 13 | SCREW |
| 14 | WP21097 Whirlpool Pad |
| 15 | WP54584 Whirlpool Hinge |
| 16 | WP54583 Whirlpool Hinge |
| 17 | Bumper, Lid Hinge |
| 18 | WP21258 Whirlpool Washer Lid Hinge Bearing |
| 19 | Lid (White) |
| 20 | WP358684 Whirlpool Strike Assembly |
| 22 | WP9724509 Whirlpool Bumper |
| 24 | Spring & Button, Lid ((R.H.)) |
| 24 | Spring & Button, Lid ((L.H.)) |
| 25 | Plug, Button |
| 26 | Stop, Push-In Top |
| 27 | Plug, Terminal (3-Way) |
| 28 | SCREW |
| 30 | Rivet, Serial Nameplate |
| 31 | WP90016 Whirlpool Clip |
