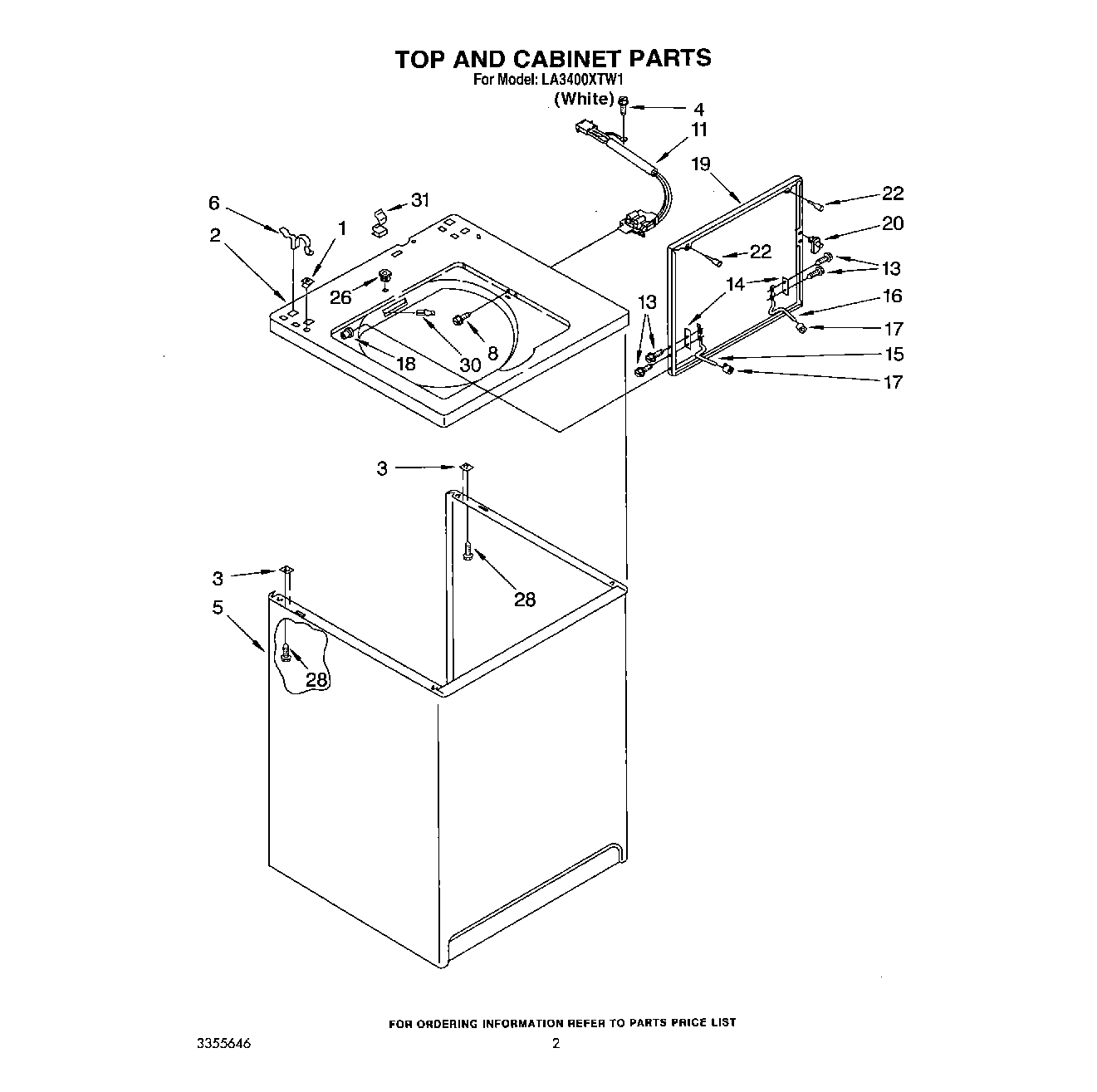

LA3400XTW1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3355646
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Shipping Kit
	WPL 72112
	WPL 89121
	WPL LIT3347019
	WPL LIT3351410
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	WPL LIT3356130
	WPL LIT3351829
	WPL LIT3354680
	Golden Harvest (Uncut)
	Golden Harvest
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	Leveler (Thinner)
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	285320 Whirlpool Washer Siphon Break Kit
	Drain Protector (Not Included)
	350572 Whirlpool Oil Transmission 15 Oz
	350930 Whirlpool White Spray Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
1	Nut, Push-In (2)
2	Top (White)
3	WP62750 Whirlpool Spacer
5	Cabinet (White)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
26	Stop, Push-In Top
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
