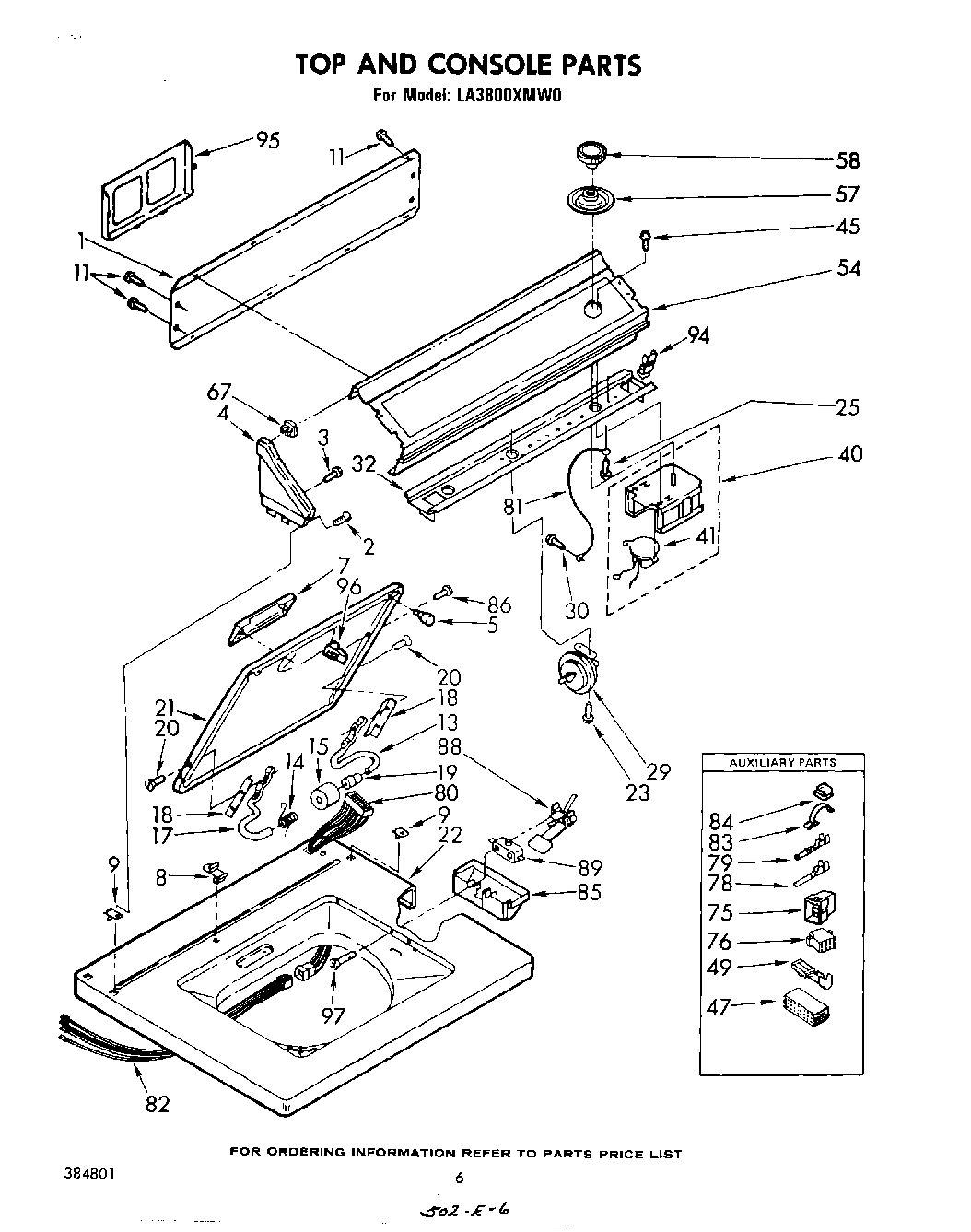

LA3800XMW0 05 – TOP AND CONSOLE

LA3800XMW0 05 – TOP AND CONSOLE

Written by

in

LA3800XMW0 05 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2Screw, 8-18 x 1 (2)
3WPL 355326
4Cap , End (R.H.) (White)
4Cap, End (L.H.) (White)
5WP9724509 Whirlpool Bumper
7WP686711 Whirlpool Door Handle
8Stop, Push-In Top
9Nut, Push-In (2)
11W11693756 Whirlpool Screw Assembly
13WP91770 Whirlpool Hinge
14Spring, Hinge
15Bumper, Lid Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (White)
22Top (White)
23WP90767 Whirlpool Screw
25WP3351614 Whirlpool Screw
29Switch, Water Level
30SCREW
32Bracket, Control
40Timer, 60 Hz.
41Motor, Timer 60 Hz.
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
49Terminal, Female
54Panel, Control
57Dial, Timer
58Knob, Timer
67WP689559 Whirlpool Nut
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
80Harness, (Console) Wiring
81Wire, Ground
82Harness, Cabinet
838528351 Whirlpool Clip
84WP90016 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
88Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
94W10113937 Whirlpool Clamp
95Rack, Literature
96Strike, Lid Switch
97Screw & Washer, Lid Switch (2)
