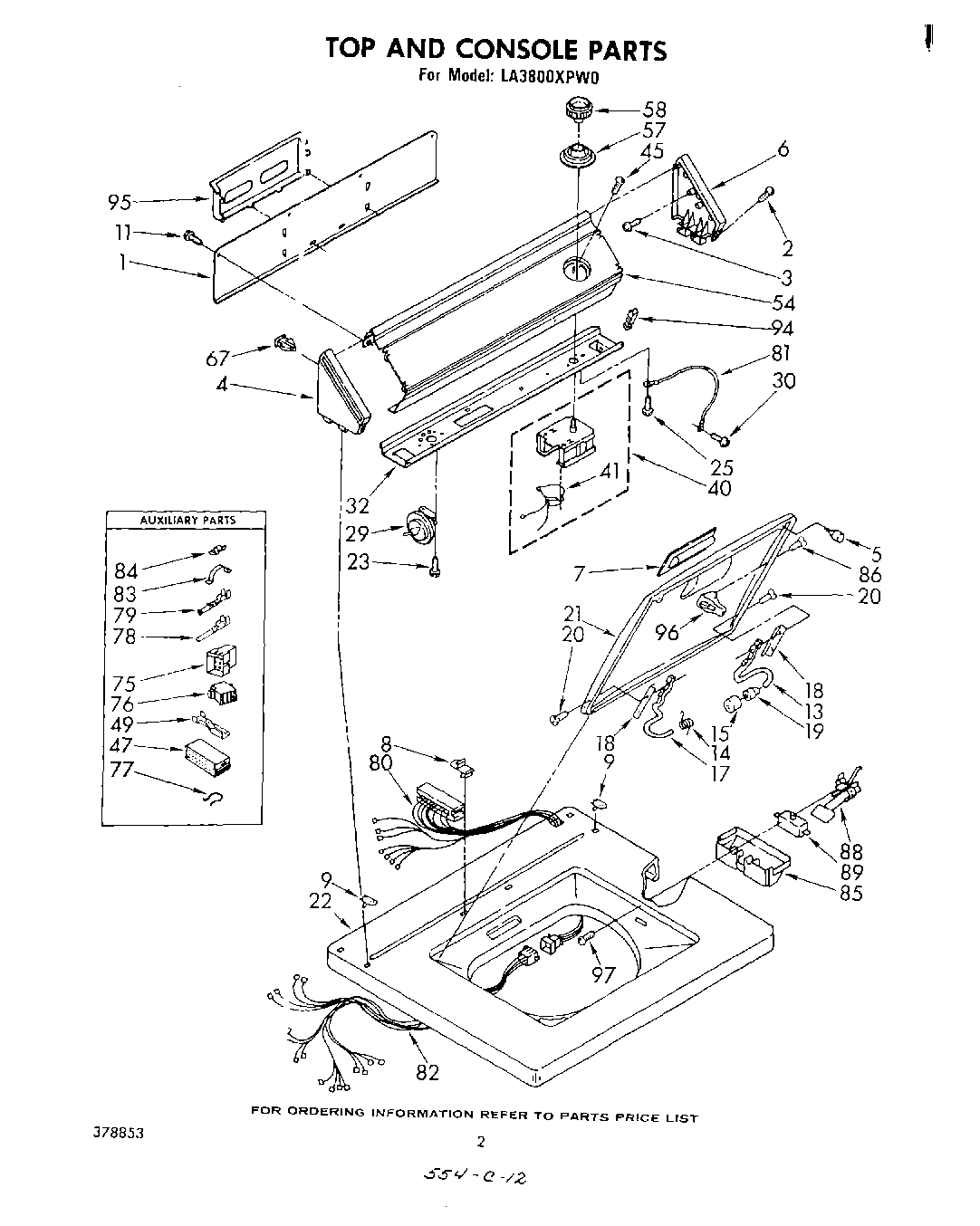

LA3800XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Wire, 25` Roll (Red 12 Ga.)
	WPL LIT385238
	WPL LIT677967
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	Washer (Belt Drive)
	Sheet, Installation Instructions (Non Suds)
	WPL LIT378853
	WPL LIT386199
	WPL LIT386896
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	Dryer
1	Panel, Rear
2	WPL 64211
3	WPL 355326
4	Cap, End (L.H.)
5	WP9724509 Whirlpool Bumper
6	WPL 63796
7	Handle, Lid (White)
8	Stop, Push-In Top
9	Nut, Push-In (2)
11	W11693756 Whirlpool Screw Assembly
13	WP91770 Whirlpool Hinge
14	Spring, Hinge
15	Bumper, Lid Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (White)
22	Top (White)
23	WP90767 Whirlpool Screw
25	WP3351614 Whirlpool Screw
29	Switch, Water Level
30	SCREW
32	Bracket, Control
40	Timer, 60 Hz.
41	Motor, Timer 60 Hz.
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
49	Terminal, Female
54	Panel, Control
57	Dial, Timer
58	Knob, Timer
67	WP689559 Whirlpool Nut
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
77	Clip, Harness (2)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
80	Harness, (Console) Wiring
81	3184020 Whirlpool Oven Wire
82	Harness, Cabinet
83	8528351 Whirlpool Clip
84	WP90016 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
88	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
94	W10113937 Whirlpool Clamp
95	Rack, Literature
96	Strike, Lid Switch
97	Screw & Washer, Lid Switch (2)
