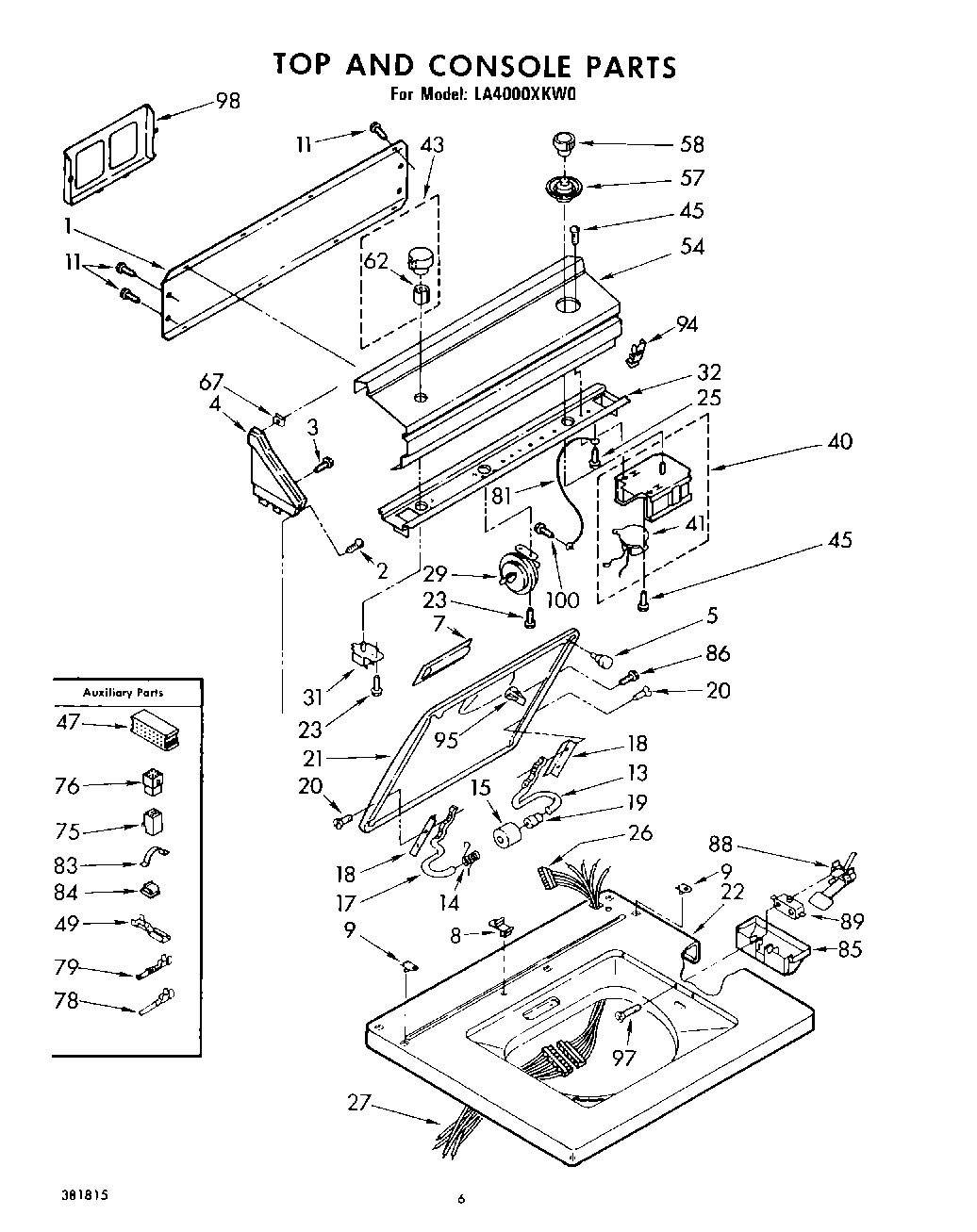

LA4000XKW0 06 – TOP AND CONSOLE

LA4000XKW0 06 – TOP AND CONSOLE

Written by

in

LA4000XKW0 06 – TOP AND CONSOLE

Products

PositionProduct
1Panel, Rear Console
2Screw, 8-18 x 1 (2)
3WPL 355326
4Cap, End (L.H.) (White)
4Cap , End (R.H.) (White)
5WP9724509 Whirlpool Bumper
7WP686711 Whirlpool Door Handle
8Stop, Push-In Top
9Nut, Push-In (2)
11W11693756 Whirlpool Screw Assembly
13WP91770 Whirlpool Hinge
14Spring, Hinge
15Bumper, Lid Hinge
17Hinge, L.H.
18WP21097 Whirlpool Pad
19WP21258 Whirlpool Washer Lid Hinge Bearing
20SCREW
21Lid (White)
22Top (White)
23WP90767 Whirlpool Screw
25Screw, 10 x 3/8
26Harness, Console
27Harness, Base
29Switch, Water Level
31Switch, Water Temperature (Alt.)
31Switch, Water Temperature (Alt.)
32Bracket, Control
40Timer, 60 Hz.
41Motor, Timer 60 Hz.
43Knob Assembly, W.T.
45WP356418 Whirlpool Screw
47W10876590 Whirlpool Connector
49Terminal, Female
54Panel, Control
57Dial, Timer
58Knob, Timer
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
75Cap, Terminal (Console Harness)
76Plug, Terminal (Cabinet Harness)
78WP596797 Whirlpool Terminal
79WP94614 Whirlpool Terminal
81Wire, Ground
838528351 Whirlpool Clip
84WP90016 Whirlpool Clip
85WP359231 Whirlpool Shield
86Screw & Washer
88Switch Actuator Assembly
89W10820036 Whirlpool Door Switch Kit
94W10113937 Whirlpool Clamp
95Strike, Lid Switch
97Screw & Washer, Lid Switch (2)
98Rack, Literature
100SCREW
