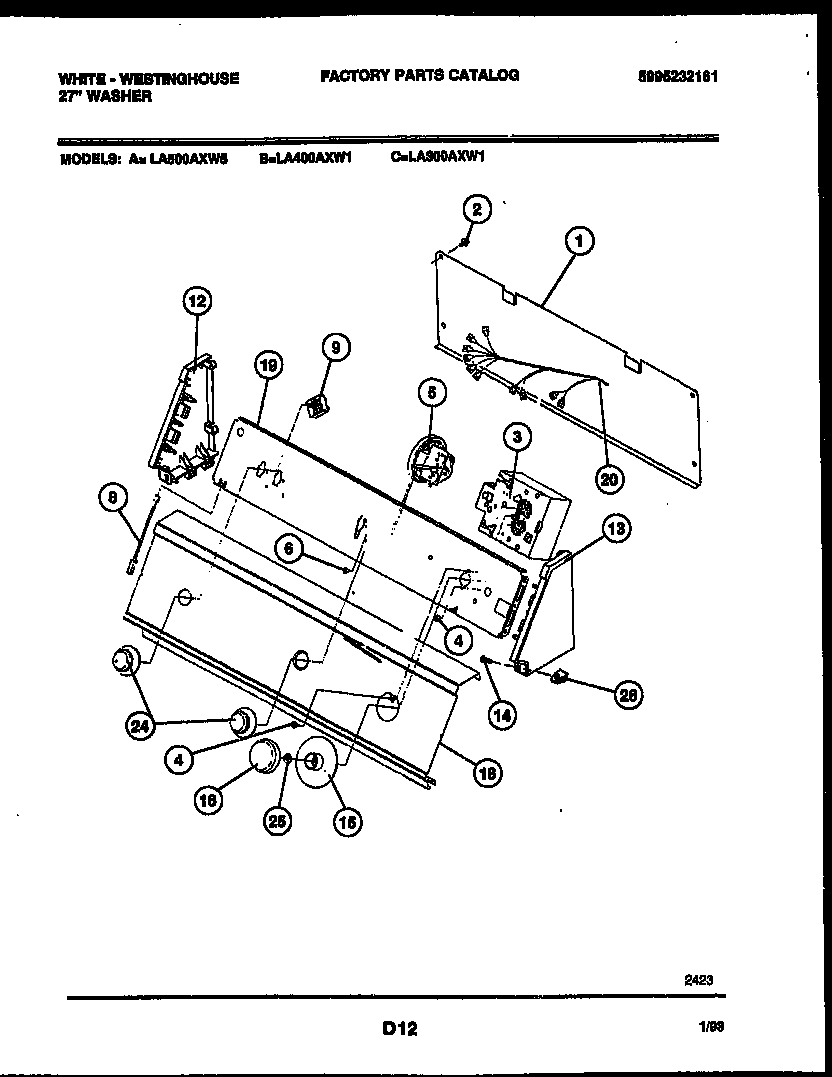

LA400AXD1 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*72699	SCREW
*72699	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 5303271760
4	SCREW (2)
5	WCI 131047500
6	5303015671 Frigidaire Bracket Termination Screw
8	WCI 131062204
9	WCI 131047000
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	WCI 131118500
16	KNOB-TIMER
18	WCI 131107900
19	BRACKET - CONTROL
20	WCI 131060100
24	WCI 131118600
25	Spacer,washer ,timer shaft
26	CLIP
