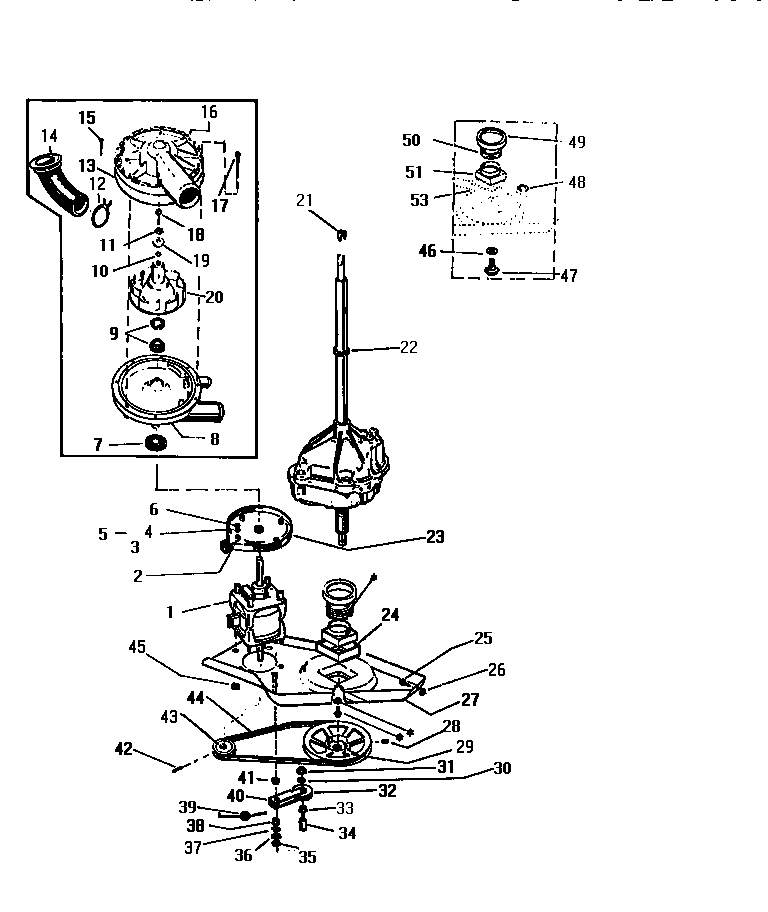

LA400JXW3 06 – DRIVE MOTOR & PUMP ASSEMBLY

Products

Position	Product
*26322	WCI Q198163
1	WCI Q603184
2	WCI Q502788
3	SPACER (4)
4	SPACER (1)
5	SPACER (1)
6	WCI Q502404
7	WCI Q69543
8	WCI Q612641
9	SEAL, KIT (INCLUDED IN IMPELLER KIT Q198163)
10	O-RING (INCLUDED IN IMPELLER KIT Q198163)
11	WCI Q500374
12	WCI Q501154
13	GASKET (INCLUDED IN IMPELLER KIT Q198163)
14	WCI Q622261
15	SCREW (7)
16	WCI Q612631
17	SCREW, TO MOTOR
18	WCI Q504204
19	WCI Q69561
20	IMPELLER (INCLUDED IN IMPELLER KIT Q198163)
21B	SHIM
21A	WCI Q631522
21	WCI Q631521
22	WCI Q440115
23	WCI Q164261
24	WCI Q622331
25	BOLT (3)
26	WCI Q500831
27	WCI Q623011
28	WCI Q500868
29	WCI Q631112
31	WCI Q501084
32	WCI Q622341
34	WCI Q622462
35	WCI 1467173
36	WCI Q409004
37	WCI 1147601
39	WCI Q623001
40	WCI Q622472
41	WCI Q607121
42	PIN
43	WCI Q622991
44	WCI Q622451
45	NUT
46	WASHER NEOPRENE
47	BOLT
53	WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
