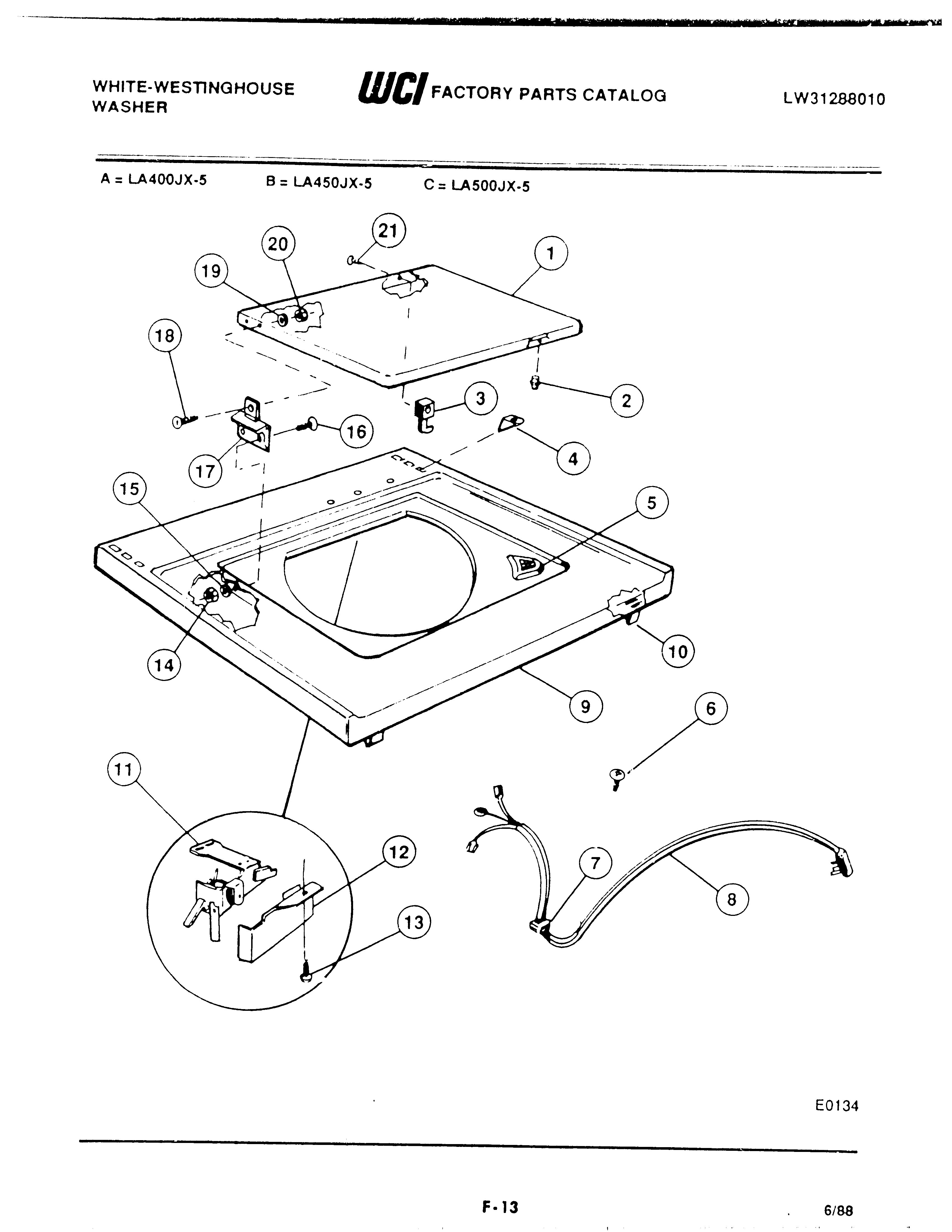

LA400JXW5 03 – TOP AND MISCELLANEOUS PARTS

LA400JXW5 03 – TOP AND MISCELLANEOUS PARTS

Written by

in

LA400JXW5 03 – TOP AND MISCELLANEOUS PARTS

Products

Position	Product
1	WCI 3016990
2	WCI Q13435
3	WCI Q143172
4	WCI Q503065
5	DISPENSER
7	WCI Q63137
8	CORD, SERVICE
9	PNL. TOP – ALMD
10	SPRING CATCH
11	WCI Q165346
12	SHIELD, LID LOCK
13	SCREW (4)
17	WCI Q622182
18	SCREW (2)
19	SPACER
20	NUT (2)
21	WCI Q501589
