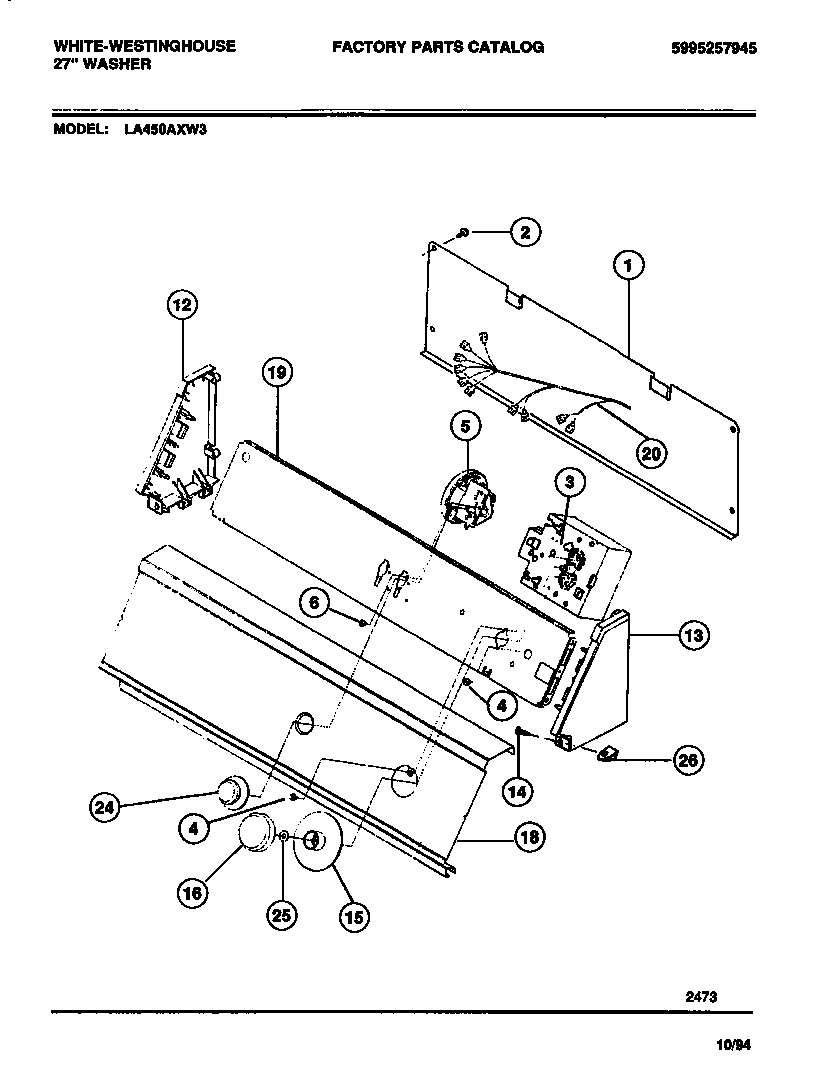

LA450AXD3 05 – CONSOLE & CONTROLS

Products

Position	Product
*78602	SCREW
*78601	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 5303271764
4	SCREW (2)
5	WCI 131047500
6	5303015671 Frigidaire Bracket Termination Screw
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	WCI 131118500
16	KNOB-TIMER
18	WCI 131108300
19	BRACKET CONTROLS
20	WCI 131166000
24	WCI 131118600
25	Spacer,washer ,timer shaft
26	CLIP
